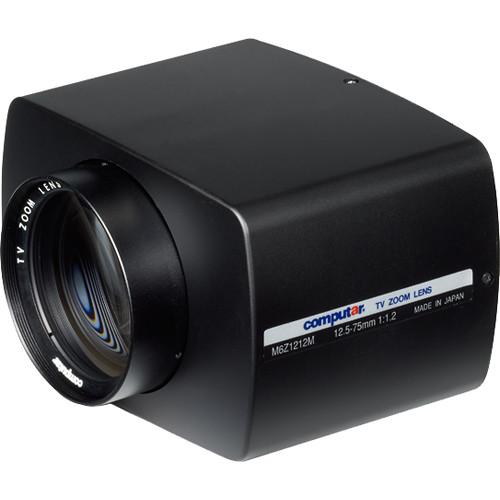

User Manual for computar M6Z1212M C-Mount 12.5-7.5mm 6x Motorized Varifocal Lens Click to enlarge the picture
Contents of the user manual for the computar M6Z1212M C-Mount 12.5-7.5mm 6x Motorized
- Product category: Lenses computar
- Brand: computar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for computar Lenses
|
User manual for the computar M6Z1212M C-Mount 12.5-7.5mm 6x Motorized contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any computar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official computar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a computar product will considerably shorten its lifespan!
|
Product description The M6Z1212M C-Mount 12.5-7.5mm 6x Motorized Varifocal Lens from computar is compatible with 2/3" cameras and uses a C mount for mounting to your camera. It captures images in 8.8 x 6.6mm (Ø11mm) format, and offers motorized focus, iris, and zoom control, as well as a 38.3 to 6.7° horizontal field of view. - Compatible with 2/3-type cameras
- Motorized iris, focus, and zoom control
UPC: 781904280001 In the Box computar M6Z1212M C-Mount 12.5-7.5mm 6x Motorized Varifocal Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar M6Z1212M C-Mount 12.5-7.5mm 6x Motorized Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar M6Z1212M Specs | C-Mount Lens | Yes | | Imager Size | 2/3" | | Focal Length | 12.5-75mm | | Maximum Aperture Ratio | 1:1.2 | | Aperture | f/1.2 | | Maximum Image Format | 8.8 x 6.6 mm (Ø11 mm) | | Operation Range | Iris: f/1.2-16C
Focus: 3.3' to infinity / 1 m to infinity
Zoom: 12.5-75mm | | Control | Iris: Motorized
Focus: Motorized
Zoom: Motorized | | Object Dimensions at M.O.D. | 12.5mm: 27.1 x 20.3" / 68.8 x 51.6 cm
75mm: 4.8 x 3.5" / 12.1 x 9 cm | | Field of View | Diagonal: 46.9 to 8.3°
Horizontal: 38.3 to 6.7°
Vertical: 29.2 to 5.1° | | Supply Voltage | Iris: 8 VDC
Focus: 8 VDC
Zoom: 8 VDC | | Current | Iris: 30 mA or less
Focus: 30 mA or less
Zoom: 25 mA or less | | Response Time | Iris: Approximately 3 seconds
Focus: Approximately 5 seconds
Zoom: Approximately 4 seconds | | Effective Lens Aperture | Front: Ø46.5mm
Rear: Ø15.6mm | | Back Focal Length | 15.4mm | | Flange Back Length | 17.526 mm | | Filter Size | M55, P = 0.75 mm | | Tripod Screw Thread | 1/4-20 UNC | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Dimensions | 4.25 x 2.8 x 4.50" / 108 x 71 x 114.5 mm | | Weight | 26.5 oz / 750 g | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 8.0 x 6.1 x 4.5" |
