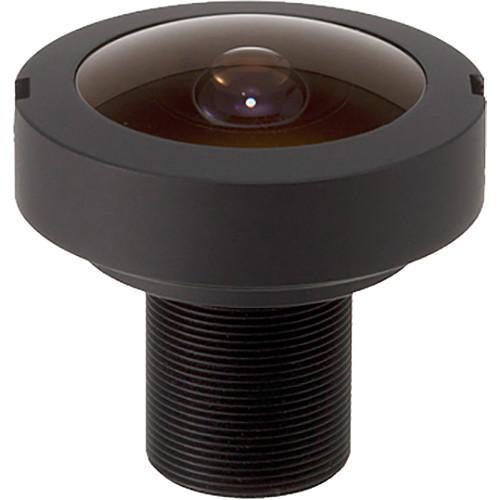

User Manual for computar Megapixel Series M12 Mount 1.05mm Fisheye Lens Click to enlarge the picture
Contents of the user manual for the computar Megapixel Series M12 Mount 1.05mm
- Product category: Lenses computar
- Brand: computar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for computar Lenses
|
User manual for the computar Megapixel Series M12 Mount 1.05mm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any computar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official computar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a computar product will considerably shorten its lifespan!
|
Product description The Megapixel Series M12 Mount 1.05mm Fisheye Lens (IP66-Rated) from computar is designed for 5MP cameras with 1/2.5" format sensors. This fisheye lens has a 180° horizontal field of view and is IR corrected to eliminate focus shift. The lens is IP66-rated for use in outdoor applications. - Designed for 5MP 1/2.5" format cameras
- Stereo graphic projection
- 180° horizontal field of view
- IR corrected to eliminate focus shift in the visible and near IR light spectrum
UPC: 781904050796 In the Box computar Megapixel Series M12 Mount 1.05mm Fisheye Lens (IP66-Rated) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar Megapixel Series M12 Mount 1.05mm Fisheye Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar L1028KDRW Specs | Format | 1/2.5", 1/3", or 1/4" | | Mount Type | M12 S mount (P = 0.5 mm) | | Focal Length | 1.05mm | | Aperture | f/2.8 | | Effective Aperture | Front Diameter: 0.79" (20 mm)
Rear Diameter: 0.21" (5.4 mm) | | Distortion | -96.66% | | Image Size | Diameter at 180°: 0.16" (4.1 mm) | | Focal Range | 1.96" (5 cm) to infinity | | Field of View | 1/2.5" Type (50% Peripheral Light):
Vertical: 180°
1/3" Type (50% Peripheral Light):
Horizontal: 180°
Vertical: 163.2°
1/4" Type (50% Peripheral Light):
Diagonal: 180°
Horizontal: 163.2°
Vertical: 130.2° | | Back Focal Length | 3.62mm | | Coating | MgF2 single coat (all surfaces λ = 510 nm) | | Dimensions | 1.1 x 1.02" (27 x 26 mm) | | Weight | 0.61 oz (17 g) | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 1.2 x 0.6 x 0.6" |
