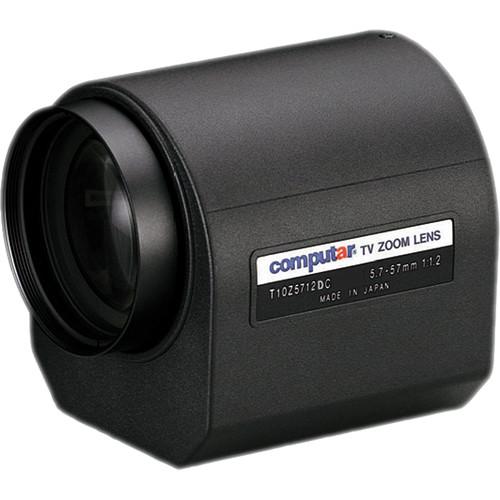

User Manual for computar T10Z5712DC 1 3" f1.2 10x Motorized Zoom, DC Auto Iris Lens Click to enlarge the picture
Contents of the user manual for the computar T10Z5712DC 1 3" f1.2 10x
- Product category: Lenses computar
- Brand: computar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for computar Lenses
|
User manual for the computar T10Z5712DC 1 3" f1.2 10x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any computar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official computar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a computar product will considerably shorten its lifespan!
|
Product description The computar T10Z5712DC 1/3" f1.2 10x Motorized Zoom, DC Auto Iris Lens (5.7-57mm) allows you to control focal length, iris and focus via a lens controller. It is suitable for use in applications requiring long distance surveillance such as parking lots and highways, where variable focal length and remote control are required. UPC: 781904267606 In the Box computar T10Z5712DC 1/3" f1.2 10x Motorized Zoom, DC Auto Iris Lens (5.7-57mm) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar T10Z5712DC 1 3" f1.2 10x Motorized Zoom, DC Auto Iris Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar T10Z5712DC Specs | Focal Length | 5.7 to 57 mm | | Maximum Aperture Ratio | 1:1.2 | | Image Format | 0.19 x 0.14" / 4.8 x 3.6 mm (ø6 mm) | | Operation Range | Iris: F1.2 to F560C Focus: 5.9' to infinity (1.8 m to infinity) Zoom: 0.02 to 0.19' (5.7 to 57 mm) | | Control | Iris: DC auto iris Focus/Zoom: motorized | | Object Dimensions at M.O.D. | 5.7 mm: 58.11 x 43.626" (147.6 x 110.8 cm) 57 mm: 5.94 x 4.57" (15.1 x 11.6 cm) | | Angle of View | 54.2 to 5.9° x 44.6 to 4.8° x 34.2 to 3.7° (D x H x V) | | Effective Lens Aperture | Front: ø45 mm Rear: ø8.6 mm | | Back Focal Length | 8.5 mm | | Flange Back Length | 12.5 mm | | Mount | CS-mount | | Filter Size | M49 P = 0.75 mm | | Tripod Mounting Screw | 1/4 - 20 UNC | | Coil | Drive: 190 ohm
Control: 1000 ohm | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Dimensions (W x H x D) | 2.69 x 3 x 3.46" (68.5 x 76.3 x 88 mm) | | Weight | 16.23 oz (460 g) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 5.1 x 4.1 x 4.0" |
