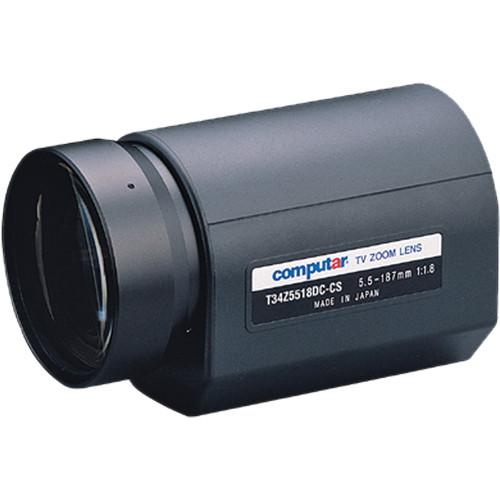

User Manual for computar T34Z5518DC 1 3" DC Auto-Iris Lens Click to enlarge the picture
Contents of the user manual for the computar T34Z5518DC 1 3" DC Auto-Iris
- Product category: Lenses computar
- Brand: computar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for computar Lenses
|
User manual for the computar T34Z5518DC 1 3" DC Auto-Iris contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any computar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official computar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a computar product will considerably shorten its lifespan!
|
Product description The computar T34Z5518DC 1/3" DC Auto-Iris Lens (5.5 to 187mm) with 4-Pin Mini Connector allows you to control focal length, iris, and focus via a lens controller. It is suitable for applications requiring long distance surveillance such as in parking lots and highways, where variable focal length and remote control are required. UPC: 781904266203 In the Box computar T34Z5518DC 1/3" DC Auto-Iris Lens (5.5 to 187mm) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the computar T34Z5518DC 1 3" DC Auto-Iris Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar T34Z5518DC Specs | Focal Length | 5.5 to 187 mm | | Aperture Ratio | 1:1.8 | | Image Format | 0.19 x 0.14" / 4.8 x 3.6 mm (ø6 mm) | | Operation Range | Iris: F1.8 to F560C Focus: 4.9' to infinity (1.5 m to infinity) Zoom: 0.22 to 7.36" (5.5 to 187 mm) | | Control | Iris: DC auto-iris Focus/Zoom: Motorized | | Object Dimensions at M.O.D. | 5.5 mm: 50.87 x 37.48" (129.2 x 95.2 cm) 187 mm: 1.61 x 1.22" (4.1 x 3.1 cm) | | Angle of View | 57.5 to 1.92° (D), 46.6 to 1.55° (H), 35.2 to 1.17° (V) | | Coil | Drive: 190 ohms Control: 1000 ohms | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Effective Lens Aperture | Front: ø70 mm Rear: ø9.1 mm | | Back Focal Length | 12.7 mm | | Flange Back Length | 12.5 mm | | Mount | CS-mount | | Filter Size | M77 P = 0.75 mm | | Tripod Mounting Screw | 1/4 - 20UNC | | Certifications | CE, RoHS | | Dimensions | 3.23 x 3.83 x 6.3" (82 x 97.4 x 160 mm) | | Weight | 39.15 oz (1,110 g) | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 6.3 x 3.83 x 3.23" |
