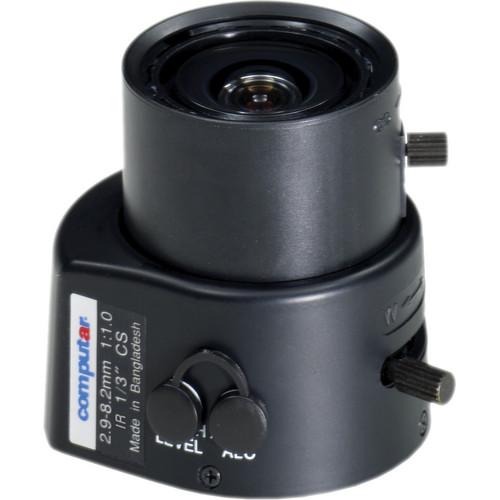

Product description The computar TG3Z2910AFCS-IR 1/3” Varifocal Day/Night Lens (2.9-8.2mm) is designed for CS-mount day/night cameras with 1/3” format sensors. This lens facilitates easy focal length adjustments without having to move the camera from its installation point. With an aperture of f/1.0 to 360C, the lens is suitable for surveillance in low-light as well as bright-light conditions. In addition, this IR-corrected day/night lens captures clear images, eliminating focus shift and infrared bleed. - Designed for CS-mount day/night cameras with 1/3" sensors
- 2.9-8.2mm focal length to clearly capture scenes requiring different focus settings
- Easy focal length adjustments
- Aperture of f/1.0 to 360C ensures enhanced performance in low-light as well as bright-light conditions
- Auto Iris mechanism ensures that the camera captures detailed images even in areas with varying light intensity
- Aspherical lens surface ensures that the images have corner-to-corner sharpness for all aperture settings
- Infrared correction eliminates focus shift and IR bleed, making the lens suitable for 24-hour surveillance operations
- Comes with locking set screws and a durable metal barrel & mount
UPC: 781904320561 In the Box computar TG3Z2910AFCS-IR 1/3" Varifocal Day/Night Lens (2.9-8.2mm) Limited 3-Year Warranty Brochure PDF 670kb Table of Contents
|
Upload User Manual
Have you got an user manual for the computar TG3Z2910AFCS-IR 1 3" Varifocal Day Night Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar TG3Z2910AFCS-IR Specs | Focal Length | 2.9-8.2 mm | | Aperture Ratio | 1:1.0 (maximum) | | Image Format | 4.8 x 3.6 mm (ø6 mm) | | Operation Range | Iris: F1.0 to F360C
Focus: 1.64' to infinity (0.5 m to infinity)
Zoom: 0.11 to 0.32" (2.9 to 8.2 mm) | | Control | Iris: Video Auto Iris
Focus / Zoom: Manual | | Angle of View | 1/3-type: 125.6 to 44.7° (D), 95.0 to 35.6° (H), 69.0 to 26.7° (V)
| | Supply Voltage | 8.5 to 16 VDC | | Current | Less than 40 mA | | Response Time | 2 sec approximately | | Light Weighting Method | Adjustable between average - peak (to be set at average at factory) | | Input Signal | Video signal (V. or V.S.) | | Iris | 15% accurate at video signal level | | Sensitivity Adjustment | 0.5 to 1.0 Vpp (video signal) | | Input Impedance | High impedance | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Effective Lens Aperture | Front: ø19.0 mm
Rear: ø8.5 mm | | Back Focal Length | Tele: 0.55" (14.0 mm)
Wide: 0.30" (7.8 mm) | | Flange Back Length | 0.49" (12.5 mm) | | Mount | CS-mount | | Certifications | CE, RoHS | | Dimensions | ø1.31 X 1.83 X 1.74" (ø33.5 x 46.6 x 44.3 mm) | | Weight | 1.90 oz (54 g) | | | | Package Weight | 0.175 lb | | Box Dimensions (LxWxH) | 2.85 x 2.6 x 2.3" |
