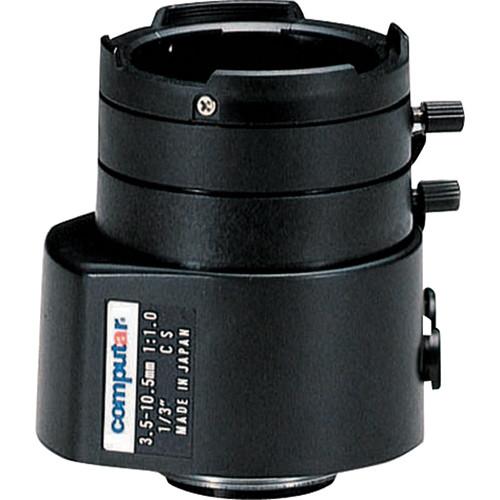

User Manual for computar TG3Z3510AFCS 1 3" Varifocal Lens with Amplifier Click to enlarge the picture
Contents of the user manual for the computar TG3Z3510AFCS 1 3" Varifocal Lens
- Product category: Lenses computar
- Brand: computar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for computar Lenses
|
User manual for the computar TG3Z3510AFCS 1 3" Varifocal Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any computar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official computar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a computar product will considerably shorten its lifespan!
|
Product description The computar TG3Z3510AFCS 1/3” Varifocal Lens with Amplifier (3.5-10.5mm) is designed for CS-mount cameras with 1/3” format sensors. This lens facilitates easy focal length adjustments without having to move the camera from its installation point. Moreover, with an aperture of f/1.0 to 360C, the lens is suitable for surveillance in low-light as well as bright-light conditions. - Designed for CS-mount cameras with 1/3" sensors
- 3.5-10.5mm focal length to clearly capture scenes requiring different focus settings
- Easy focal length adjustments
- Aperture of f/1.0 to 360C ensures enhanced performance in low-light as well as bright-light conditions
- Auto Iris mechanism ensures that the camera captures detailed images even in areas with varying light intensity
- Aspherical lens surface ensures that the images have corner-to-corner sharpness for all aperture settings
- Video driven lens with amplifier circuitry for converting the video signal from the camera into iris motor control
- Comes with locking set screws and a durable metal barrel & mount
UPC: 781904320608 In the Box computar TG3Z3510AFCS 1/3" Varifocal Lens with Amplifier (3.5-10.5mm) Limited 3-Year Warranty Brochure PDF 406.1kbsfcryxvyabuuxycszqccsf Table of Contents
|
Upload User Manual
Have you got an user manual for the computar TG3Z3510AFCS 1 3" Varifocal Lens with Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar TG3Z3510AFCS Specs | Focal Length | 3.5-10.5 mm | | Aperture Ratio | 1:1.0 (maximum) | | Image Format | 4.8 x 3.6 mm (ø6 mm) | | Operation Range | Iris: F1.0 to F360C
Focus: 0.98' to infinity (0.3 m to infinity)
Zoom: 0.13 to 0.41" (3.5 to 10.5 mm) | | Control | Iris: Video Auto Iris
Focus / Zoom: Manual | | Angle of View | 1/3-type: 108.4 to 34.2° (D), 81.6 to 27.2° (H), 59.2 to 20.4° (V)
| | Supply Voltage | 8.5 to 16 VDC | | Current | Less than 40 mA | | Response Time | 2 sec approximately | | Light Weighting Method | Adjustable between average - peak (to be set at average at factory) | | Input Signal | Video signal (V. or V.S.) | | Iris | 15% accurate at video signal level | | Sensitivity Adjustment | 0.5 to 1.0 Vpp (video signal) | | Input Impedance | High impedance | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Effective Lens Aperture | Front: ø18.5 mm
Rear: ø10.1 mm | | Back Focal Length | Tele: 0.64" (16.3 mm)
Wide: 0.31" (8 mm) | | Flange Back Length | 0.49" (12.5 mm) | | Mount | CS-mount | | Certifications | CE, RoHS | | Object Dimensions at M.O.D. | At 3.5 mm: 20.39 x 13.42" (518 x 341 mm)
At 10.5 mm: 5.70 x 4.25" (145 x 108 mm) | | Dimensions | ø1.51 x 1.88 x 1.92" (ø38.5 x 48 x 48.8 mm) | | Weight | 2.46 oz (70 g) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 3.2 x 2.8 x 2.4" |
