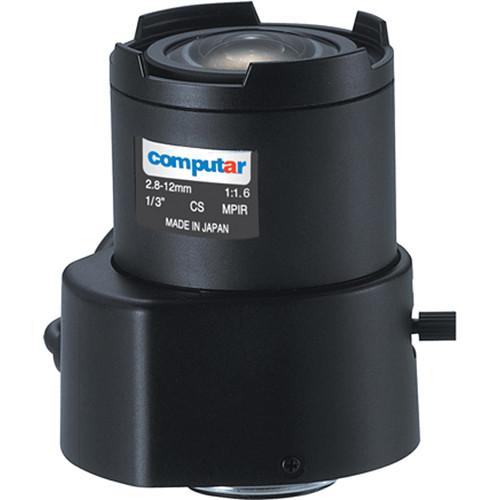

User Manual for computar TG4Z2816FCS-MPIR 1 3" f1.6 DC Auto Iris Lens Click to enlarge the picture
Contents of the user manual for the computar TG4Z2816FCS-MPIR 1 3" f1.6 DC
- Product category: Lenses computar
- Brand: computar
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for computar Lenses
|
User manual for the computar TG4Z2816FCS-MPIR 1 3" f1.6 DC contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any computar product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official computar user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a computar product will considerably shorten its lifespan!
|
Product description The TG4Z2816FCS-MPIR 1/3" f1.6 DC Auto Iris Lens (CS-Mount, 2.8 to 12mm) from computar has been designed for use with 1/3" format sensors. - Supports 2.8 to 12mm f1.6 DC auto iris
- Recommended for 1.3 MP sensor
- Eliminates focus shift that occurs during night mode
- Aspherical optics provide excellent low light sensitivity
- Locking set screws on zoom and focus rings
UPC: 781904050093 In the Box computar TG4Z2816FCS-MPIR 1/3" f1.6 DC Auto Iris Lens (CS-Mount, 2.8 to 12mm) Limited 3-Year Warranty Brochure PDF 110.6kbuecteucqyfwbrffqvevtcxeuyaefvz Table of Contents
|
Upload User Manual
Have you got an user manual for the computar TG4Z2816FCS-MPIR 1 3" f1.6 DC Auto Iris Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameterscomputar TG4Z2816FCS-MPIR Specs | Focal Length | 2.8 to 12 mm | | Maximum Aperture Ratio | 1:1.3 | | Image Format | 4.8 x 3.6 mm (ø6 mm) | | Operation Range | Iris: F1.6 to 360
Focus: 0.98' to infinity (0.3 m to infinity)
Zoom: 0.11 to 0.47" (2.8 to 12 mm) | | Control | Iris: DC auto iris
Focus / Zoom: Manual | | Angle of View | 133 to 29.7° (D), 102.2 to 23.7° (H), 74.2 to 17.8° (V) | | Coil | Drive: 190Ω / 68°F (20°C)
Control: 855 Ω / 68°F (20°C) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Effective Lens Aperture | Front: ø23 mm
Rear: ø7.4 mm | | Back Focal Length | Tele: 19.2 mm
Wide: 7.2 mm | | Flange Back Length | 0.49" (12.5 mm) | | Mount | CS-mount | | Dimensions (W x H x D) | 1.47 x 1.88 x 2.20" (37.5 x 48 x 56 mm) | | Weight | 2.50 oz (71 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 3.3 x 2.9 x 2.5" |
