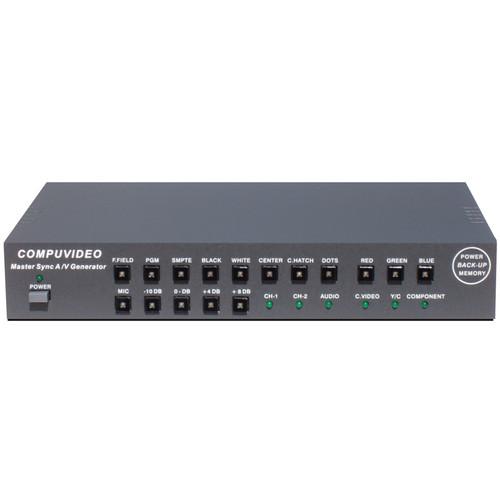

Product description The NTSC Compuvideo CV-7000N(RM) Master Sync A/V Generator is a precision professional A/V generator that offers user-friendly direct function smart front panel control with last settings memory and auto power back-up, thereby, assuring that the unit stays functional despite power loss. This unit can be used in rack mount, desktop, and/or handheld configurations. This generator is powered by AC/DC power and/or internal 9V batteries with 10 hours of average operation and low battery indication.All outputs can be used at the same time. The unit provides Broadcast High Quality Test Patterns (SMPTE Bars, Full Field Bars, Grayscale, Black Reference, Red, Green, Blue, White, Center, Cross and Dots) and 6 black reference outputs to independently Genlock video/audio Systems. Specially designed Black Reference and Test Pattern generators are separately buffered when you select Test Patterns. Black Reference is not affected. As Test Patterns and Black Reference are generated from the same sync source, thus the horizontal and sub carrier phase match. Additionally, the unit has a front panel program function for future standards/formats upgrades.The unit can work under extreme conditions, generating very low heat and assuring 24/7 non-stop operation and protected by an all metal enclosure from magnetic and electrical interference.This unit can survive accidents that can happen to handheld and portable devices; even accidental drops and/or liquid spills. It has minimum repair cost involved due to separately and strategically positioned front panel, main electronic board, and connectors. The unit can be rack mounted for security purposes. In the Box Compuvideo CV-7000N(RM) Master Sync A/V Generator (NTSC) Power Supply 1 RU 19" Rack Mount Limited 2-Year Warranty on Parts Limited 1-Year Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Compuvideo CV-7000N Master Sync A V Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCompuvideo CV-7000 N(RM) Specs | Composite Video | 3 x Composite Video: 1 x Vpp into 75 Ω | | Analog | Analog Y: 1 x Vpp into 75 Ω | | Component | 1 x Component Cr (R - Y): 700 mVpp into 75 Ω
1 x Component Cb (B - Y): 700 mVpp into 75 Ω | | Luma Bandwidth | 1 x YC (Luma): 1.0 Vpp into 75 Ω | | Chroma Phase | 1 x YC (Chroma): 0.286Vpp into 75 Ω | | RGB | 1 x R.G.B: 700 mVpp into 75 Ω | | Sync | 1 x Composite Sync: 1 V into 75 Ω | | Audio | 1 x Mono Audio Out: 1 kHz , 1 Vpp into 1K
2 x CH XLR Balanced Stereo Audio: MIC, -4 dB, 0 dB, +4 dB, +8 dB | | Scanning | Scanning Lines: 525, 2:1 Interlace | | Frequency | Horizontal Frequency: 15,734 KHz
Vertical Field Frequency: 59.94 Hz
Color Subcarrier Frequency: 3.579545 MHz ±10 | | Compliance | RS 170A | | AC Power | AC Power Universal: 100 to 240 V 50/60 Hz | | Dimensions | Dimensions without Rack Mount ( H x W x D): 1.7 x 10.0 x 6.5" (4.3 x 25.4 x 16.5 cm) | | Weight | 2.5 lb (1.1 kg) | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 14.0 x 10.0 x 6.0" |
