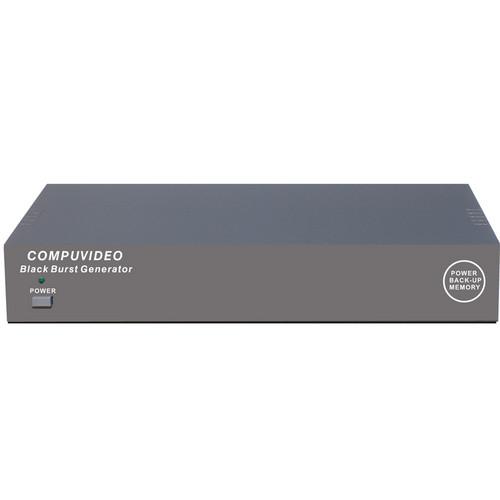

User Manual for Compuvideo CV-8000 P Master Sync A V Generator Click to enlarge the picture
Contents of the user manual for the Compuvideo CV-8000 P Master Sync A
- Product category: Video & Audio Signal Generators Compuvideo
- Brand: Compuvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Compuvideo Video & Audio Signal Generators
|
User manual for the Compuvideo CV-8000 P Master Sync A contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Compuvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Compuvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Compuvideo product will considerably shorten its lifespan!
|
Product description The PAL Compuvideo CV-8000 P (RM) Master Sync A/V Generator is a precision professional A/V generator that offers user-friendly, direct function, smart front panel control with last settings memory and auto power back-up, assuring that even if power is lost to the unit, the work continues without any interruption.This unit can be used in rack mount, desktop and/or handheld configurations. Powered by AC/DC power and/or internal 9V batteries, this generator has 10 hours of average operation and low battery indication. All outputs can be used at the same time. The unit provides broadcast high-quality test patterns (SMPTE Bars, Full Field Bars, Grayscale, Black Reference, Red, Green, Blue, White, Center, Cross, and Dots) and 6 black reference outputs to independently Genlock video/audio Systems. Specially designed black reference and test pattern generators are separately buffered when you select test patterns.Black reference is not affected. Since Test Patterns and Black Reference are generated from same sync source, the horizontal and sub carrier phase match. Additionally, the unit has front panel program function for future standards/formats upgrades. This generator can work under extreme conditions, generating very low heat and assuring 24/7 non-stop operation and protected by all metal enclosure from magnetic and electrical interference.This unit can survive accidents that can happen to handheld and portable devices; even accidental drops and/or liquid spills may result in minimum repair cost involved due to separately and strategically positioned front panel, main electronic board, and connectors. The unit can be rack mounted for security purposes. In the Box Compuvideo CV-8000 P (RM) Master Sync A/V Generator (PAL) Power Supply 1 RU 19" Rack Mount Limited 2-Year Warranty on Parts Limited 1-Year Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Compuvideo CV-8000 P Master Sync A V Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCompuvideo CV-8000 P (RM) Specs | Burst Capability | Composite Black Burst: 5-Outputs
Y/C Black Burst: 1-Output | | Scanning | Scanning Lines: 625, 2:1 Interlace | | Frequency | Horizontal Frequency: 15,625 kHz
Vertical Field Frequency: 50 Hz
Color Subcarrier Frequency: 4.43361875 MHz ±10 | | Compliance | P.A.L | | AC Power | AC Power Universal: 100 to 240 V 50/60 Hz | | Dimensions | Dimensions without Rack Mount ( H x W x D): 1.7 x 10.0 x 6.5" (4.3 x 25.4 x 16.5 cm) | | Weight | 2.5 lb (1.1 kg) | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 14.0 x 10.0 x 6.0" |
