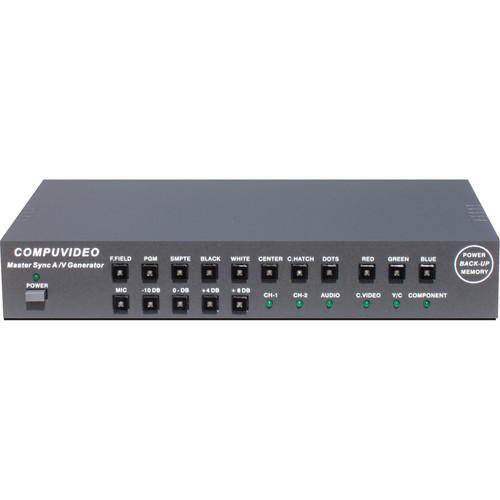

Product description The Compuvideo CV-9000P(RM) Master Sync A/V Generator (PAL) is a precision professional A/V generator that offers user-friendly direct-function smart front panel control with last settings memory and auto power back-up. This unit can be used in rack mount, desktop and/or handheld configurations. Powered by AC/DC power and/or internal 9V batteries, this generator has 10 hours of average operation and low-battery indication.All outputs can be used at the same time. The unit provides high-quality test patterns (SMPTE Bars, Full Field Bars, Grayscale, Black Reference, Red, Green, Blue, White, Center, Cross and Dots) and 6 Black Reference outputs to independent Genlock video/audio systems. Specially designed Black Reference and test pattern generators are separately buffered. When you select the test patterns, Black Reference is not affected. Since test patterns and Black Reference are generated from same sync source, the horizontal and subcarrier phase always match. Additionally, the unit has front panel program function for future standards/formats upgrades.This A/V generator can work under extreme conditions, generating very low heat and assuring 24/7 non-stop operation. It is protected by an all-metal enclosure from magnetic and electrical interference.This unit can mostly survive accidents, including accidental drops and/or liquid spills that can happen to handheld and portable devices due to separately and strategically positioned front panel, main electronic board, and connectors. The unit can be rack mounted for security purposes. - Master sync audio-video generator
- Composite, Y/C , component input and output
- Test patterns with Black Burst
- Synchronization available
In the Box Compuvideo CV-9000P(RM) Master Sync A/V Generator (PAL) Power Supply 1RU 19" Rack Mount Limited 2-Year Warranty on Parts Limited 1-Year Warranty on Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Compuvideo CV-9000P Master Sync A V Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCompuvideo CV-9000 P(RM) Specs | Video System | PAL | | Composite Video | 3 x Composite Video: 1 x Vpp into 75 Ω | | Reference | Master Black Reference: 6 x Outputs into 75 Ω | | Analog | Analog Y: 1 x Vpp into 75 Ω | | Component | 1 x Component Cr (R - Y): 700 mVpp into 75 Ω
1 x Component Cb (B - Y): 700 mVpp into 75 Ω | | Luma Control (Contrast) Range | 1 x YC (Luma): 1.0 Vpp into 75 Ω | | Chroma Phase | 1 x YC (Chroma): 0.286Vpp into 75 Ω | | RGB | 1 x R.G.B: 700 mVpp into 75 Ω | | Sync | 1 x Composite Sync: 1 V into 75 Ω | | Audio | 1 x Mono Audio Out: 1 kHz , 1 Vpp into 1K
2 x CH XLR Balanced Stereo Audio: MIC, -4 dB, 0 dB, +4 dB, +8 dB | | Scanning | Scanning Lines: 625, 2:1 Interlace | | Frequency | Horizontal Frequency: 15,625 kHz
Vertical Field Frequency: 50 Hz
Color Subcarrier Frequency: 4.43361875 MHz ±10±10 | | Compliance | PAL | | AC Power | AC Power Universal: 100 to 240 V 50/60 Hz | | Dimensions | Dimensions without Rack Mount ( H x W x D): 1.7 x 10.0 x 6.5" (4.3 x 25.4 x 16.5 cm) | | Weight | 2.5 lb (1.1 kg) | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 14.0 x 10.0 x 6.0" | Note: Upgrades & custom configurations as per customer request.
