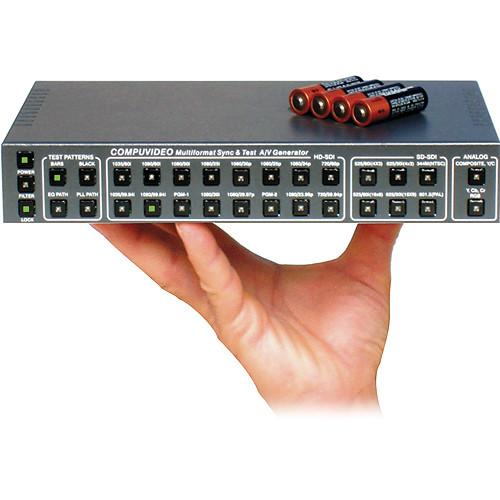

User Manual for Compuvideo CV-9270 SDI-AN 3G HD SD-SDI Multiformat Generator and Analog A V Click to enlarge the picture
Contents of the user manual for the Compuvideo CV-9270 SDI-AN 3G HD SD-SDI
- Product category: Video & Audio Signal Generators Compuvideo
- Brand: Compuvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Compuvideo Video & Audio Signal Generators
|
User manual for the Compuvideo CV-9270 SDI-AN 3G HD SD-SDI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Compuvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Compuvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Compuvideo product will considerably shorten its lifespan!
|
Product description The CV-9270 SDI-AN 3G HD/SD-SDI Multiformat Generator and NTSC Analog A/V from Compuvideo is a digital multiformat(NTSC/PAL) HD-SDI, SD-SDI, and NTSC analog professional generator. The device features a 31 direct function front panel control with last settings memory. It can be powered by AC/DC power for uninterrupted operation or by internal AA-batteries (included) for 100 hours of average operation. The CV-9270 SDI-AN provides 2 HD/SD-SDI matched low jitter outputs, that can be used as broadcast high quality test patterns or master sync black reference generator to Genlock HD-SDI and SD-SDI video/audio systems.
The generator has a front panel program function for future standards/formats upgrades. In addition to HD-SDI / SD-SDI outputs, the CV-9270 SDI-AN provides composite, component, and Y/C outputs in NTSC, with 2 channel XLR balanced audio. The unit performs a comprehensive go/no-go test of the HD/SD-SDI & analog systems, testing for errors using the EDH system for SD or the CRC system for HD. The generator can be used in a rackmount, desktop, or handheld configuration. A rackmount kit is included. - Used in rackmount, desktop, or handheld configuration
In the Box Compuvideo CV-9270 SDI-AN 3G HD/SD-SDI Multiformat Generator and Analog A/V (NTSC Analog) HD/SD-SDI Cable Universal AC Power Adapter 4 x AA-Battery 1RU Rackmount Limited 2-Year Warranty for Parts and Limited 1-Year Warranty for Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Compuvideo CV-9270 SDI-AN 3G HD SD-SDI Multiformat Generator and Analog A V in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCompuvideo CV-9270 SDI-AN Specs | HD-SDI (SMPTE292M) | Data Rates:
1.485 Gbps
Video Resolution:
720 / 59.94p, 60p
1035 / 59.94i, 60i
1080 / 23.98p, 24p, 25i, 25p, 29.97p, 30p, 30i, 50i, 59.94i, 60i | | SD-SDI (SMPTE259M-C) | Data Rates:
270 Mbps, 360 Mbps and 540 Mbps
Video Resolution:
525 / 59.94i, 625 / 50i (4 x 3)
525 / 59.94i, 625 / 50i (16 x 9)
344M (NTSC), BT-601 (PAL) | | Connectors | 2 x BNC, SDI output
6 x BNC, Composite test patterns or black reference output
1 x 4-pin mini DIN, Y/C output
3 x BNC, Component Y output
1 x BNC, Component Sync output 2 x 3-pin XLR male, channel balanced audio
1 x BNC, Audio 1 kHz tone
1 x DC Barrel power | | Front Panel Controls | 3 x Lite pushbutton; power, filter, lock
4 x Lite pushbutton; test patterns
16 x Lite pushbutton; HD-SDI
6 x Lite pushbutton; SD-SDI
2 x Lite pushbutton; analog | | Back Panel Controls | 1 x 2-position switch, microphone/line level
1 x 2-position switch, External DC/Internal battery | | TV Standard | NTSC (344M) for analog video section | | Dimensions (H x W x D) | 1.7 x 10.0 x 6.0" (4.3 x 25.4 x 15.2 cm) | | Weight | 3.0 lb (1.4 kg) | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 14.0 x 10.0 x 6.0" |
