Product description The Compuvideo HDTV-2PAL is a PAL test signal generator featuring multiple formats of video and audio Tone. This device outputs analog video formats including RGBHV. Additional to the standard definition signals this particular model outputs analog HDTV. - 10 Video Patterns
- Video patterns available for output are as follows:
- PAL Bars
- Full Field Bars
- Grayscale
- Red, Green and Blue Rasters
- White
- Crosshatch
- Dots
- Set Up
- Audio
- Unbalanced audio output is available on two channels and can be adjusted to various levels of attenuation including MIC level. Audio output is a 1 KHz signal.
- HDTV
- Along with outputting high resolution computer signals, this model will generate an HDTV signal out of the component port.
- Television Standard
- This device operates in PAL via the composite or Y/C ports.
- Remote Control
- A wireless remote control is offered for remote pattern change during testing.

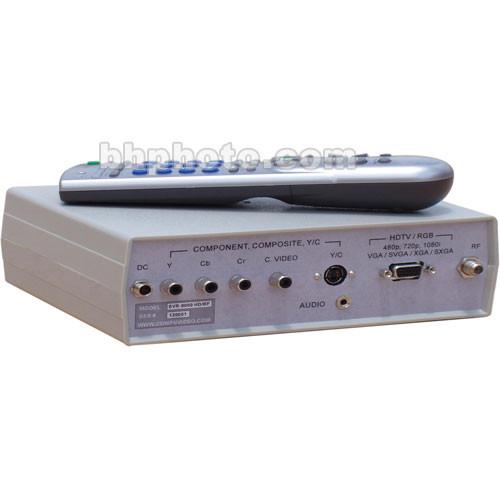

In the Box Compuvideo HDTV-2PAL Multimedia Generator Power Cord Remote Control 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Compuvideo HDTV-2PAL Multimedia Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCompuvideo HDTV2PAL Specs | Output | HDTV Analog, Y Pb Pr, 720p and 1080i, on RCA connectors
SDTV Analog, Y Cr Cb, 480i, 480p, 576p, on RCA Connectors
Composite, 1 Vpp @ 75 ohms, on an RCA connector
Y/C S-Video, on a 4-Pin connector
RF Video, Modulated to Channel 3, on an "F" connector
PC/Mac Video, VGA to SXGA, on an HD-15 connector
Unbalanced Audio, 2 Channels, 1K Hz, on RCA connectors | | Television System | PAL
720p or 1080i
480i, 480p or 576p
VGA to SXGA | | Control | Wireless Controller
Output Selection
Pattern Selection | | Power Source | 90-240 VAC 50/60 Hz | | Dimensions (WxDxH) | 8 x 6 x 1.5"
20.3 x 15.2 x 3.8cm | | Weight | 3 lbs
1.3 kg | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 14.0 x 10.0 x 6.0" |
