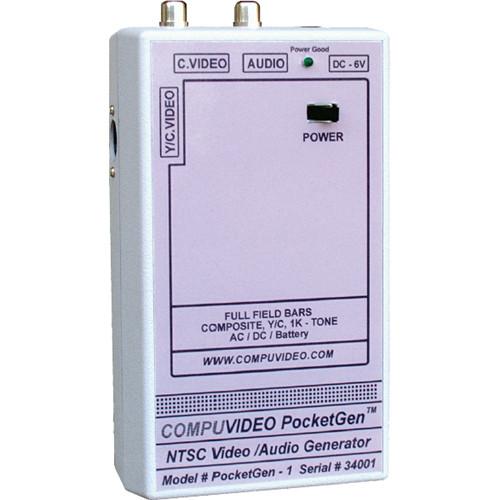

Product description The PocketGen 1 is a full field Color Bar generator; it offers a 1 kHz tone, composite and Y/C video all in a compact size. - Composite And Y/C
- Composite and Y/C outputs are offered for the user's convienience.
- Compact Size
- Small enough to hold in hand for field use and put in your pocket for portability.
- Audio Tone
- A 1 kHz audio tone is offered as a standard feature.
- AC/DC Operation
- This device will operate with a DC voltage from AA batteries or AC voltage from the supplied AC adapter.
In the Box Compuvideo PG-1 PocketGen 1 Full Field Color Bar Generator, NTSC, Audio Tone, Composite (RCA), Y/C Video AC Power Adapter 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Compuvideo PG-1 PocketGen 1 Full Field Color Bar Generator, NTSC, Audio Tone, Composite , Y C Video in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCompuvideo POCKETGEN-1 Specs | Output | Composite Video, Full Field Bars, 1 Vpp @ 75 ohms, on a RCA connector
Audio Tone, 1 KHz, 1 Vpp @ 1K ohms, on a RCA connector | | Television System | NTSC @ 3.58 MHz | | Control | None | | Power Source | 120 VAC @ 50/60 Hz
4 AA Batteries for DC operation | | Dimensions (WxDxH) | 3.2 x 5.5 x 1.5"
8.12 x 13.9 x 3.81cm | | Weight | 10 ounces
270 grams | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 8.4 x 6.3 x 4.7" |
