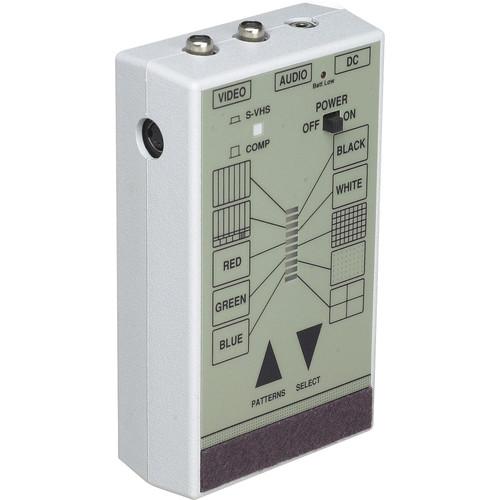

Product description The PocketGen 3P is an PAL Pattern generator featuring 9 patterns and a 1K audio tone. It features composite and Y/C video connections. - 9 Patterns
- Patterns offered are Full Field Color Bars, Black Burst, Red, Green, Blue, White, Dots, Center Cross and Convergence.
- Composite And Y/C
- Composite and Y/C outputs are offered for the user's convienience.
- Compact Size
- Small enough to hold in hand for field use and put in your pocket for portability.
- Audio Tone
- A 1 kHz audio tone is offered as a standard feature.
- AC/DC Operation
- This device will operate with a DC voltage from AA batteries or AC voltage from the supplied AC adapter.
In the Box Compuvideo PG-3P PocketGen 3 PAL Test Pattern Generator, Composite (RCA), Audio Tone AC Power Adapter 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Compuvideo PG-3P PocketGen 3 PAL Test Pattern Generator, Composite , Audio Tone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCompuvideo PG3PAL Specs | Output | Composite Video, 1 Vpp @ 75 ohms, on a RCA connector
Audio Tone, 1 KHz, 1 Vpp @ 1K ohms, on a RCA connector | | Television System | PAL @ 4.43 MHz | | Control | Selection Pad:
Black Burst
Full Field Bars
Cross Hatch
Center Cross
Red
Green
Blue
White
Convergence | | Power Source | 100 to 240 VAC @ 50/60 Hz
4 AA Batteries for DC operation | | Dimensions (WxDxH) | 3.2 x 5.5 x 1.5"
8.12 x 13.9 x 3.81cm | | Weight | 10 ounces
270 grams | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 8.0 x 8.0 x 4.0" |
