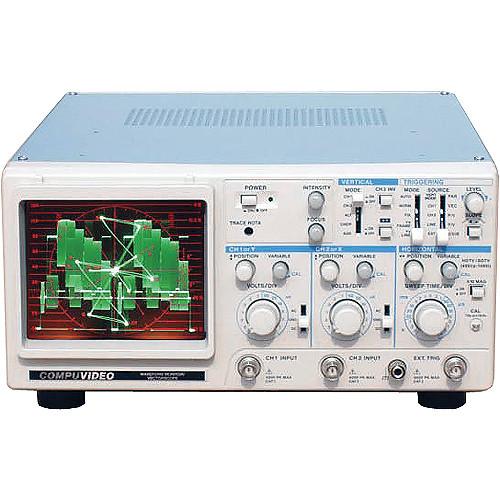

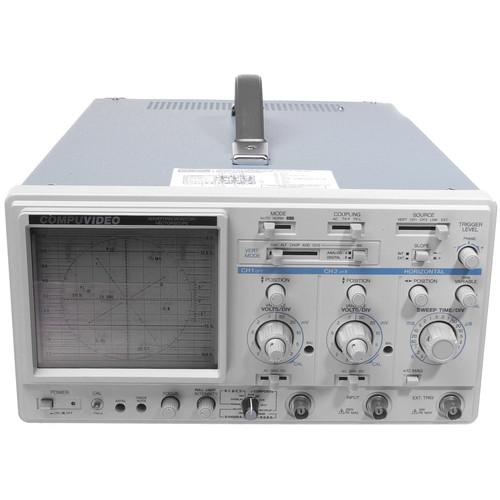

Product description The SVR-1100DV is a two channel combination waveform monitor and vectorscope; it measures a SDI, composite, Y/C and component video signals, offering standard features within a monochrome display. - Smart Master Control
- With a turn of the dial this function will take the user through automatically calibrated inputs and display modes.
- 6" CRT
- This CRT offers high resolution and brightness.
- Multiple Displays
- The user can view a number of displays at the same time (parade and overlay) or each display can be viewed individually.
- Variable Sweep
- The user will be able to zoom in on the signal.
- Multi-Function
- This device offers waveform and vectorscope functions.
- Multiple Input
- This model offers two separate composite inputs, a component input, Y/C and SDI.
In the Box Compuvideo SVR-1100DV Waveform and Vectorscope, SDI, Component, Composite, Y/C Power Cord Two Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Compuvideo SVR-1100DV Waveform and Vectorscope, SDI, Component, Composite, Y C in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

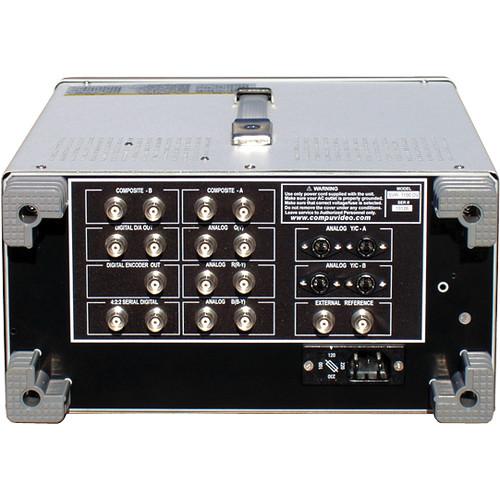

Technical parametersCompuvideo SVR-1100 DV Specs | System | 525 lines @ 60 Hz
625 lines @ 50 Hz | | Input | Composite Video x2, Looping, 1 Vpp @ 75 ohms, on a BNC connector
Component Video x2, Looping, RGB YUV, G: 1 Vpp, R: 0.7 Vpp, B: 0.7 Vpp @ 75 ohms, on BNC connectors
SDI Digital Video, Looping, CCIR-601, on a BNC connector
External Reference, Looping, 1 Vpp @ 75 ohms, on a BNC connector
Trigger Input, on a BNC connector | | Output | Composite Video x2, Loop Out, 1 Vpp @ 75 ohms, on BNC connectors
Component Video x2, Loop out, RGB YUV, G: 1 Vpp, R: 0.7 Vpp, B: 0.7 Vpp @ 75 ohms, on BNC connectors
SDI Digital Video, Looping, CCIR-601, on a BNC connector
External Reference, loop out, 1 Vpp @ 75 ohms, on a BNC connector
Reclocked Ouput x2, on BNC connectors
D/A Encoder, on a BNC connector | | Display | 6" Monochrome CRT | | Control | Front Panel:
Power On/Off
Intensity
Focus
Vertical Mode
Trigger Mode
Trigger Source
Trigger Level
Volts Per Division/Position/Variable
AC or DC Mode
Sweep Time Per Division | | Power Source | 100 to 240 VAC @ 50/60 Hz | | Dimensions (WxDxH) | 11.5 x 15.5 x 6.5"
29.2 x 39.4 x 16.5cm | | Weight | 15 to 22 lbs
6.8 to 9.8 kg | | | | Package Weight | 24.0 lb | | Box Dimensions (LxWxH) | 22.0 x 16.0 x 10.0" |
