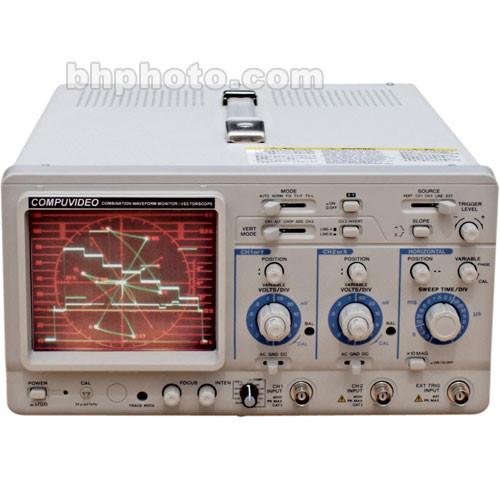

User Manual for Compuvideo SVR-1394PAL DV Waveform and Vectorscope - PAL System, IEEE-1394 , Composite , Y C Click to enlarge the picture
Contents of the user manual for the Compuvideo SVR-1394PAL DV Waveform and Vectorscope
- Product category: Waveform Monitors & Scopes Compuvideo
- Brand: Compuvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Compuvideo Waveform Monitors & Scopes
|
User manual for the Compuvideo SVR-1394PAL DV Waveform and Vectorscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Compuvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Compuvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Compuvideo product will considerably shorten its lifespan!
|
Product description The Compuvideo SVR-1394PAL is a two channel PAL, combination waveform monitor and vectorscope; it measures IEEE-1394 DV, composite and Y/C video signals, offering standard features within a monochrome display. - Smart Master Control
- With a turn of the dial this function will take the user through automatically calibrated inputs and display modes.
- 6" CRT
- This CRT offers high resolution and brightness.
- Multiple Displays
- The user can view a number of displays at the same time (parade and overlay) or each display can be viewed individually.
- Variable Sweep
- The user will be able to zoom in on the signal.
- Multi-Function
- This device offers waveform and vectorscope functions.
- Multiple Input
- This model offers two separate composite inputs, a component input, Y/C and SDI.
- PAL Television System
- This device measures video signals utilizing the PAL television system.
In the Box Compuvideo SVR-1394PAL DV Waveform and Vectorscope - PAL System, IEEE-1394 (6-Pin), Composite (BNC), Y/C (4-Pin) Power Cord Two Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Compuvideo SVR-1394PAL DV Waveform and Vectorscope - PAL System, IEEE-1394 , Composite , Y C in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCompuvideo SVR1394PAL Specs | System | PAL | | Input | DV Video, Looping, IEEE-1394, on a 6-Pin connector
Composite Video x2, Looping, 1 Vpp @ 75 ohms, on a BNC connector
Y/C S-Video, Looping, Y: 1 Vpp C: 0.286 Vpp @ 75 ohms, on a 4-Pin connector
External Reference, Looping, 1 Vpp @ 75 ohms, on a BNC connector
Trigger Input, on a BNC connector | | Output | DV Video, Loop Out, IEEE-1394, on a 6-Pin connector
Composite Video x2, Loop Out, 1 Vpp @ 75 ohms, on BNC connectors
Y/C S-Video, Looping, Y: 1 Vpp C: 0.286 Vpp @ 75 ohms, on a 4-Pin connector
External Reference, loop out, @ 75 ohms, on a BNC connector
Decoded Monitor Out, Composite, 1 Vpp @ 75 ohms, on a BNC connector | | Display | 6" Monochrome CRT | | Control | Front Panel:
Power On/Off
Intensity
Focus
Input Format Select
Channel Select
Vertical Mode
Trigger Mode
Trigger Source
Trigger Level
Volts Per Division/Position/Variable
AC or DC Mode
Sweep Time Per Division | | Power Source | 100 to 240 VAC @ 50/60 Hz | | Dimensions (WxDxH) | 11.5 x 15.5 x 6.5"
29.2 x 39.4 x 16.5cm | | Weight | 15 to 22 lbs
6.8 to 9.8 kg | | | | Package Weight | 28.0 lb | | Box Dimensions (LxWxH) | 24.0 x 18.0 x 12.0" |
