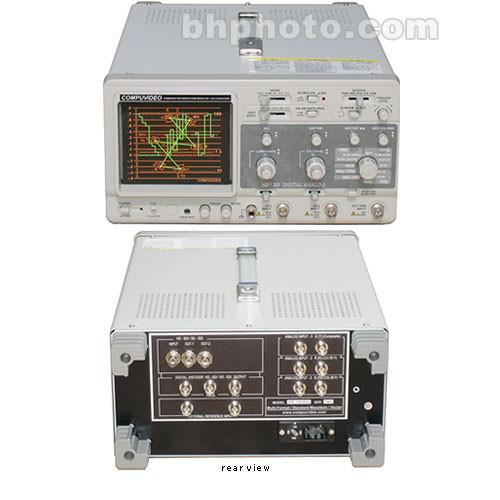

User Manual for Compuvideo SVR-1700HDSD HD SD-SDI Multiformat Waveform and Vectorscope Click to enlarge the picture
Contents of the user manual for the Compuvideo SVR-1700HDSD HD SD-SDI Multiformat Waveform
- Product category: Waveform Monitors & Scopes Compuvideo
- Brand: Compuvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Compuvideo Waveform Monitors & Scopes
|
User manual for the Compuvideo SVR-1700HDSD HD SD-SDI Multiformat Waveform contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Compuvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Compuvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Compuvideo product will considerably shorten its lifespan!
|
Product description The Compuvideo SVR-1700HDSD is a digital, multiformat, NTSC and PAL combination waveform monitor and vectorscope. This device also offers HD/SD-SDI Signal Data Alarm lock ID with Safe Area video display output.Additionally SVR-1700HDSD offers built in HD/SD-SDI Digital Encoder and Distribution Amplifier. - Smart Master Control
- With a turn of the dial this function will take the user through automatically calibrated inputs and display modes.
- 6" CRT
- This CRT offers high resolution and brightness.
- Multiple Displays
- The user can view a number of displays at the same time (parade and overlay) or each display can be viewed individually.
- Variable Sweep
- The user will be able to zoom in on the signal.
- Multi-Function
- This device offers waveform and vectorscope functions.
- Multiple Input
- This model offers a composite input, component input, and SDI inputs.
- DA Outputs
- Two SDI outputs are offered for distribution amp functionality
- Analog Monitor Out
- An analog monitor output is offered so the Digital signals can be viewed on a component analog output.
- Alarm and Safe Area
- The SVR-1700HDSD features HD/SD Digital Signal Data Alarm Lock ID and Safe Area video display for user security.
In the Box Compuvideo SVR-1700HDSD HD SD Waveform and Vectorscope - HD/SD SDI, Component, Composite, BNC, Multiple Outputs Power Cord Two Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Compuvideo SVR-1700HDSD HD SD-SDI Multiformat Waveform and Vectorscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCompuvideo SVR-1700 HDSD Specs | System | 525 lines @ 60 Hz
625 lines @ 50 Hz
NTSC, PAL, SECAM
HDTV Format 720: 60p / 50p / 30p / 29.97p / 25p / 24p / 23.98p
HDTV Format 1035: 60i / 59.94i
HDTV Format 1080: 60i / 59.94i / 50i / 48i / 60p / 50p / 30p / 29.97p / 25p 24p / 23.98p / 24sf / 23.98sf | | Input | Composite Video, Looping, 1 Vpp @ 75 ohms, on a BNC connector
Component Video, Looping, RGB YUV, G: 1 Vpp, R: 0.7 Vpp, B: 0.7 Vpp @ 75 ohms, on BNC connectors
SDI Digital Video, Looping, SD and HD, SMPTE 259M & SMPTE 292M, on BNC connectors
External Reference, Looping, @ 75 ohms, on a BNC connector
Trigger Input, on a BNC connector | | Output | Composite Video, Loop Out, 1 Vpp @ 75 ohms, on a BNC connector
Component Video, Loop out, RGB YUV, G: 1 Vpp, R: 0.7 Vpp, B: 0.7 Vpp @ 75 ohms, on BNC connectors
SDI Digital Video x2, DA, HD or SD on BNC connectors
External Reference, loop out, @ 75 ohms, on a BNC connector | | Display | 6" Monochrome CRT | | Control | Front Panel:
Power On/Off
Input Format Selection
Channel Selection
Intensity
Focus
Vertical Mode
Trigger Mode
Trigger Source
Trigger Level
Volts Per Division/Position/Variable
AC or DC Mode
Sweep Time Per Division | | Power Source | 100 to 240VAC @ 50/60Hz | | Dimensions (WxDxH) | 11.5 x 15.5 x 6.5"
29.2 x 39.4 x 16.5cm | | Weight | 19 lbs
8.6kg | | | | Package Weight | 28.0 lb | | Box Dimensions (LxWxH) | 24.0 x 18.0 x 12.0" |
