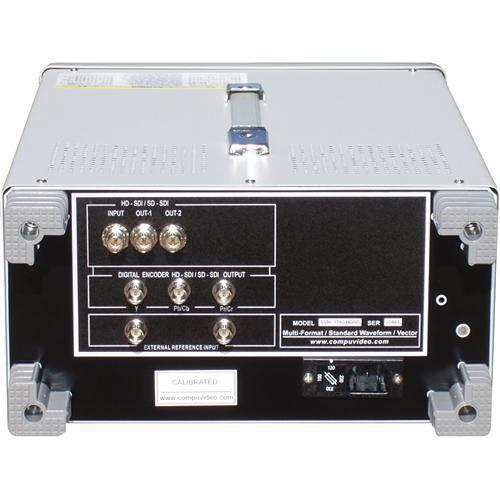

User Manual for Compuvideo SVR-1750HDSD Digital Multi-SDI Waveform Vectorscope Click to enlarge the picture
Contents of the user manual for the Compuvideo SVR-1750HDSD Digital Multi-SDI Waveform Vectorscope
- Product category: Waveform Monitors & Scopes Compuvideo
- Brand: Compuvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Compuvideo Waveform Monitors & Scopes
 |
User manual for the Compuvideo SVR-1750HDSD Digital Multi-SDI Waveform Vectorscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Compuvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Compuvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Compuvideo product will considerably shorten its lifespan!
|
Product description The SVR-1750HDSD Digital Multi-SDI Waveform/Vectorscope from Compuvideo is designed for use with testing of broadcast video applications and devices. It offers an SD/HD-SDI digital-signal data alarm lock and safe-area video display output for testing. It also supports NTSC and PAL standards. - Digital Multi-SDI Waveform/Vectorscope
- This waveform/vectorscope offers an SD/HD-SDI digital-signal data alarm lock and safe-area video display output for testing.
In the Box Compuvideo SVR-1750HDSD Digital Multi-SDI Waveform/Vectorscope Waveform/Vectorscope Two-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the Compuvideo SVR-1750HDSD Digital Multi-SDI Waveform Vectorscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCompuvideo SVR-1750 HDSD Specs | Inputs/Outputs | (1) SD/HD-SDI universal input with (2) active digital distribution-amplifier outputs | | Formats | SD-SDI Formats (NTSC) 525i: 59.94
SD-SDI Formats (PAL) 625i: 50
HD-SDI Formats 1080i: 60, 59.94, 50
HD-SDI Formats 1080p: 30, 29.97, 25, 24, 23.98
HD-SDI Formats 1080PsF: 30, 29.97, 25, 24, 23.98
HD-SDI Formats 720p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
Analog: (Cr) (R-Y) (R), (Cb) (B-Y) (B), (Y)(Gs) | | Monitor | Y, Pb, Pr output (SMPTE 292M, 259M digital encoder) | | External Reference | HD
Composite (B.B./Video)
Component (Y, Gs) | | Power | 100 to 240VAC/ 50/60Hz, 25W | | Dimensions (HxWxD) | 6.5 x 11.5 x 15.5" | | Weight | Not specified by manufacturer | | | | Package Weight | 28.0 lb | | Box Dimensions (LxWxH) | 24.0 x 18.0 x 12.0" |
