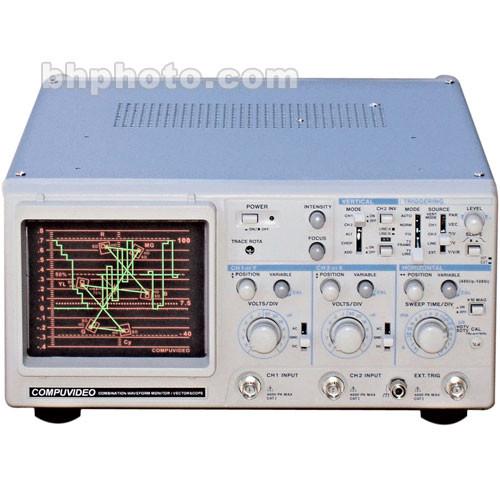

User Manual for Compuvideo SVR-3000APAL Waveform Monitor and Vectorscope - Composite, Component, PAL Click to enlarge the picture
Contents of the user manual for the Compuvideo SVR-3000APAL Waveform Monitor and Vectorscope
- Product category: Waveform Monitors & Scopes Compuvideo
- Brand: Compuvideo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Compuvideo Waveform Monitors & Scopes
|
User manual for the Compuvideo SVR-3000APAL Waveform Monitor and Vectorscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Compuvideo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Compuvideo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Compuvideo product will considerably shorten its lifespan!
|
Product description The Compuvideo SVR-3000APAL is a PAL combination waveform monitor and vectorscope; it measures composite and component video signals, offering standard features within a monochrome display. - Smart Master Control
- With a turn of the dial this function will take the user through automatically calibrated inputs and display modes.
- 6" CRT
- This CRT offers high resolution and brightness.
- Multiple Displays
- The user can view a number of displays at the same time (parade and overlay) or each display can be viewed individually.
- Variable Sweep
- The user will be able to zoom in on the signal.
- Multiple Function
- This device offers waveform and vectorscope functions.
- PAL Television System
- This device measures video signals in the PAL Television System. The PAL system is predominant in Europe and some South American countries.
In the Box Compuvideo SVR-3000APAL Waveform Monitor and Vectorscope - Composite, Component, PAL Power Cord Two Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Compuvideo SVR-3000APAL Waveform Monitor and Vectorscope - Composite, Component, PAL in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCompuvideo SVR3000APAL Specs | System | PAL
625 lines @ 50 Hz | | Input | Composite Video, Looping, 1 Vpp @ 75 ohms, on a BNC connector
Component Video, Looping, RGB YUV, G: 1 Vpp, R: 0.7 Vpp, B: 0.7 Vpp @ 75 ohms, on BNC connectors
External Reference, Looping, 1 Vpp @ 75 ohms, on a BNC connector
Trigger Input, on a BNC connector | | Output | Composite Video, Loop Out, 1 Vpp @ 75 ohms, on BNC connectors
Component Video, Loop out, RGB YUV, G: 1 Vpp, R: 0.7 Vpp, B: 0.7 Vpp @ 75 ohms, on BNC connectors
External Reference, Loop out, 1 Vpp @ 75 ohms, on a BNC connector | | Display | 6" Monochrome CRT | | Control | Front Panel:
Power On/Off
Intensity
Focus
Vertical Mode
Trigger Mode
Trigger Source
Trigger Level
Volts Per Division/Position/Variable
AC or DC Mode
Sweep Time Per Division | | Power Source | 100 to 240 VAC @ 50/60 Hz | | Dimensions (WxDxH) | 11.5 x 15.5 x 6.5"
29.2 x 39.4 x 16.5cm | | Weight | 15 to 22 lbs
6.8 to 9.8 kg | | | | Package Weight | 24.0 lb | | Box Dimensions (LxWxH) | 22.0 x 16.0 x 10.0" |
