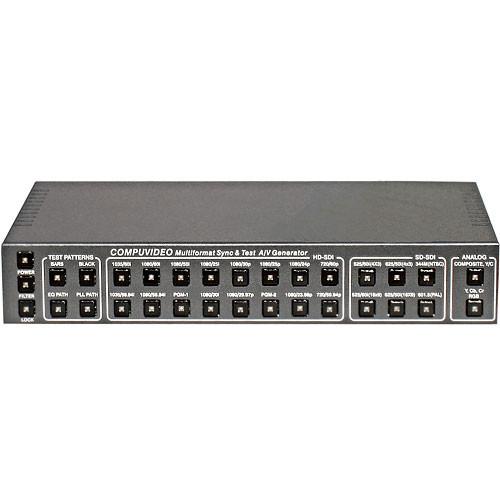

Product description The SVR-9270HDSD Digital Video Test Signal Generator from Compuvideo is a test signal generator designed to support both HDTV and SDTV formats in both NTSC and PAL standards. It includes a genlock feature and (2) SDI outputs.
The unit can run from AC/DC power or provide up to (100) hours of average internal battery operation. Test pattern types are available for all data rates, HD and SD formats, NTSC and PAL standards, and 4x3 and 16x9 raster sizes.
This model provides a comprehensive go/no-go test for HD/SD systems by testing for errors using the EDH system for SD or the CRC system for HD. Functions may be run using any HD color bar test patterns or one of two SD test patterns (270 Mb/s NTSC full-field color bar or a PAL PLL pathological). - HD/SD Test Signal Generator
- This unit is a test signal generator designed to support both HDTV and SDTV standards in both NTSC and PAL
- Power Options
- The unit can run from AC/DC power or provide up to (100) hours of average internal battery operation.
- Test Patterns
- Test pattern types are available for all data rates, HD and SD formats, NTSC and PAL standards, and 4x3 and 16x9 raster sizes.
In the Box Compuvideo SVR-9270HDSD Digital Video Test Signal Generator Signal Generator HD/SD-SDI (BNC) Cable Two-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Compuvideo SVR-9270HDSD Digital Video Test Signal Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCompuvideo SVR9270HDSDP Specs | Outputs | x2 SDI Outputs, BNC Connectors
x1 Composite Output, BNC Connector
x1 Y/C Output, 4-pin Connector
x1 Component, (Y, Cb, Cr) (Y, R-Y, B-Y) 3-BNC Connectors
x1 Component, (RGB, H/V Sync) 15-pin Connector
x1 Composite Sync, BNC Connector
x5 Black Burst Outputs, BNC Connectors
x2 Channel XLR Balanced Audio, 2-XLR Connectors
x1 Audio 1K Tone, BNC Connector | | Formats | HD-SDI
720/59.94p,60p
1035/59.94i, 60i
1080/23.98p, 24p, 25i, 25p, 29.97p, 30p, 30i, 50i, 59.94i, 60i
SD-SDI
525/60i, 625/50i (4x3) 525/60i, 625/50i (16x9) 344M (NTSC), BT-601 (PAL) | | Bandwidth | HD-SDI 1483.5 and 1.485 Gbps
SD-SDI 270 Mbps, 360 Mbps, and 540 Mbps | | Standards | NTSC
PAL | | Test Signals | Test Patterns HD/SD-SDI:
Test pattern types are available for all data rates, all HD and SD formats, NTSC and PAL standards, and 4x3 and 16x9 raster sizes. The test patterns are: flat-field black, PLL pathological, equalizer (EQ) pathological and a 75%, full field color bars. The color bar pattern offers limiting coding in the chroma and luma data transitions between bars
Test Patterns Composite, Y/C, Component NTSC or PAL:
SMPTE Bars, Black Burst, Full Field Bars, Red, Green, Blue, White, Center Cross, Dots, Cross Hatch, Grayscale | | Power | AC 100 - 240V 50/60Hz Universal, DC Input 6-15V, Internal AA Batteries Included | | Dimensions (HxWxD) | 3 x 9-1/2 x 7-1/2" | | Weight | 3 lbs | | | | Package Weight | 7.0 lb | | Box Dimensions (LxWxH) | 14.0 x 10.0 x 6.0" |
