User Manual for Comtek ALS-216 Personal Trainer System Click to enlarge the picture
Contents of the user manual for the Comtek ALS-216 Personal Trainer System
- Product category: Assistive Listening Systems Comtek
- Brand: Comtek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comtek Assistive Listening Systems
|
User manual for the Comtek ALS-216 Personal Trainer System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comtek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comtek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comtek product will considerably shorten its lifespan!
|

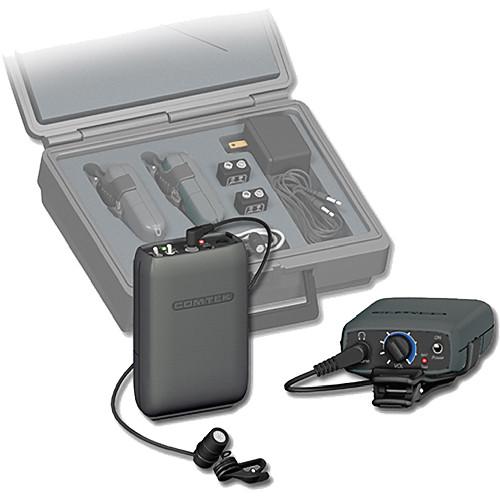

Product description The Comtek ALS-216 Personal Trainer System includes an M-216 Option 1 wireless transmitter with mute switch, a PR-216 personal receiver, a CM-183 RT omnidirectional lapel microphone, a WM-183 windscreen, an MDR-J10 left and right mono headphone set, and a C-216 carrying case. It is designed to allow trainers to communicate with horse-riders while riding.
The ALS-216 has up to a 300-foot range of operation. Multiple receivers can be integrated into the system allowing multiple riders to monitor the trainer simultaneously. The included MDR-J10 headphone set includes both left and right earpieces, allowing you to use whichever side is more comfortable while riding. In the Box Comtek ALS-216 Personal Trainer System M-216 - Wireless Transmitter tqcszfxveezvxysuyvq PR-216 Beltpack IFB Receiver (76 Channels between 216 to 217 MHz) CM-183 RT Lavalier Microphone for M-216 Transmitter WM-183 Windscreen MDR-J10 Left and Right Mono Headphone Set C-216 Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comtek ALS-216 Personal Trainer System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComtek ALS-216 Specs | | | Inputs | 1x 0.03" (2.5 mm) Micro-Mini Mono Microphone (Locking or Non-Locking)
1x 1/8" (3.5 mm) Stereo Mini | | Impedance | Mic Input: 3 kΩ
Auxiliary/Line Input: 10 kΩ (@ 0 dB nominal) | | Frequency Response | 80 Hz to 10 kHz | | Modulation | 5 kHz Deviation Channels 1 to 40 (non-companded)
10 kHz Deviation Channels 41 to 60 (companded) | | Controls | Synthesized Channel Selection Switches
Power On/Off Switch
Audio Input Gain Control
Modulation Voice Level Indicator | | RF Power Output | 10 mW to the Antenna System | | Emissions | Out-of-Band Emissions: Better than 45 dB Below Carrier | | Current Drain | 17 mA Constant Current | | Battery | 9 V Alkaline (Up to 35 Hours)
9 V Nickel-Metal Hydride Rechargeable (Up to 15 Hours) | | Dimensions (WxHxL) | 1.16 x 2.50 x 3.25" (2.70 x 5.70 x 8.30 mm) | | Weight | 4 oz (110 g) | | | | Outputs | 1x 1/8" (3.5 mm) Stereo/Mono jack | | Audio Output | Headset Output: 16 dBu (low impedance) | | Frequency Response | 80 Hz to 12 kHz | | Operating Frequency | 216 to 217 MHz | | Frequency Stability | 0.002% Frequency Synthesized Crystal Controlled | | RF Sensitivity | 0.5 uV for 12 dB SINAD | | Adjacent Channel Isolation | 65 dB 50 kHz (off-channel) | | Spurious Rejection | 60 dB (image excluded) | | Ultimate Quieting | Better than 95 dB Companded Channels | | Deviation Acceptance | Up to 10 kHz | | Antenna | Integral with Output Cable | | Current Drain | 15 mA (Nominal) | | Power Requirements | 9 V Alkaline Battery
Rechargeable Nickel Metal Hydride | | Dimensions (WxHxL) | 1.16 x 2.50 x 3.25" (2.70 x 5.70 x 8.30 mm) | | | | Type | Lapel | | Polar Pattern | Omnidirectional | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 11.3 x 9.0 x 4.6" |
