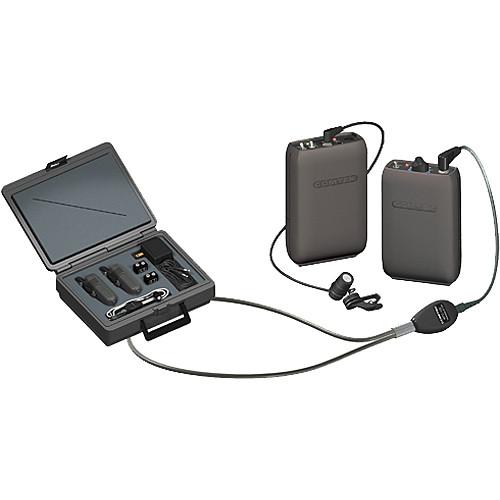

Product description The AT-216 Wireless Auditory Assistance Kit with Enviro-Mic Receiver from Comtek includes a PR-216 personal wireless receiver with Enviro-Mic option, an M-216 wireless transmitter, a CM-183RT omnidirectional lapel microphone and clip, an NTC-102 neckloop transductor, and an SM-N earphone assembly. It also features a TM-10 conference table microphone adapter, an FWA-216 flexible specialty antenna, a CB-36ST attenuator adapter cord, two BC-216 belt clips, two NH0-200 9-volt rechargeable batteries, an NBC 9-3-2 battery charger, and a C-216 carrying case.
The kit is designed to transmit both teacher's dialog and environmental sounds to your personal hearing aids or included earphone assembly for assistive listening purposes. - How it Works
- The AT-216 system functions as a remote microphone for the user, overcoming listening challenges for those with impaired hearing: high levels of background noise, reverberation effects, and distance between the speaker and listener.
In addition to hearing aids with a telecoil, the listener wears the personal receiver and neckloop. The speaker wears the M-216 transmitter. The PR-216 personal receiver picks up the voice of the person wearing the M-216 transmitter, and the neckloop then retransmits it to the hearing aids for clean, close-up sound. If hearing aids are not used, the receiver may also be used with headphones. Now the person with impaired hearing has a direct link to the speaker at greater distances for improved listening, clarity, and better understanding - Comtek's Enviro-Mic
- The PR-216 receiver with plug-in environmental microphone enhances speech discrimination when both environmental sounds and the speaker's voice from the transmitter must be heard together
- Rugged Enclosure
- The AT-216 system features packaging designed to hold up to the rigors of everyday use. Whether at school, work, or play, the COMTEK AT-216 gives you the assurance that you will hear well in virtually any situation.
Packing Features Include: - Easy fit, snap-on clip allows users to simply clip on the transmitter or receiver to a pocket or belt
- Specially designed battery compartment makes it impossible for the battery to be inserted backwards
- Channel adjustment switches are covered by the snap-on clip to prevent accidental channel changes
- Comtek Design
-
- The AT-216 system not only works on the standard channels (1-40) in the 216 MHz band maintaining compatibility with other brands, but also works with the high dynamic range companded channels (41-60) for high fidelity sound reproduction rendering greater speech intelligibility
- The AT-216 system has power conservation circuitry which allows a nine-volt battery to be used with efficiency. Plus it makes possible the highest audio output level, ensuring the effective and efficient use of the "T" coil neckloop system
- The M-216 transmitter has a versatile auxiliary audio input. It can transmit audio programs from tape, CD players, TV, VCR's, or from any audio device which has an auxiliary or line level audio output jack. What's more, when using the auxiliary audio input, the microphone may also be used to mix voice with the program information for special effects. The M-216's multifunction capability also allows it to be used with compatible telephones and conference table microphones
In the Box Comtek AT-216 Auditory Assistance Kit with Enviro-Mic Receiver M-216 - Wireless Transmitter CM-183 RT Lavalier Microphone for M-216 Transmitter NTC-102 Flexible Neckloop Transductor CB-36 ST Stereo Mini Audio Cable for M-216 Transmitter CB-36 ST Stereo Mini Audio Cable for M-216 Transmitter SM-N Mini Single-Ear Hearing-Aid Type Earphone PR-216 with Enviro-Mic Option FWA-216 Flexible Specialty Antenna 2 x BC-216 Belt Clips Mic Clip TM-10 Conference Table Mic Adapter NBC 9-2C Battery Charger 2 x NH 9-200 Ni-MH Rechargeable Batteries C-216 Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comtek AT-216 Auditory Assistance Kit with Enviro-Mic Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComtek Enviro-Mic Specs | | | Connectors | 1x 1/8" (3.5 mm) Auxiliary Line Input (Also Used for Battery Charging)
1x 1/10" (2.5 mm) Mic/Antenna Input | | Frequency Response | 80 Hz to 10 kHz | | Distortion | Less than 1% @ 80% Modulation | | Modulation | 5 kHz Deviation (Channels 1 to 40, Non-Companded)
10 kHz Deviation (Channels 41 to 60, Companded) | | RF Output | 10 mW to the antenna system | | Operating Frequency | 57 Synthesized Channels in the 216 to 217MHz LPRS Band Under FCC Part 95 | | Emissions | Out of Band: Better than 45 dB below carrier | | Current Drain | 17 mA constant current | | Battery | 9 V Alkaline (Eveready 522 or Equivalent) - Up to 35 Hours
9 V NiMH Rechargeable - Up to 15 Hours | | Dimensions (WxHxD) | 1.16 x 2.5 x 3.25" (27 x 57 x 83 mm) | | Weight | 4 oz (110 g) | | | | Audio Output | Headset Output: 16 dBu (low impedance)
1x 1/8" (3.5 mm) Stereo/Mono Connector | | Controls | 1x Power On/Off switch
1x Volume control (50 dB range)
1x 99-Position rotary channel selector switches | | Frequency Response | 80 Hz to 12 kHz | | Total Harmonic Distortion | Less than 1% (80% modulation) | | RF Frequency Range | 216 to 217 MHz | | Frequency Stability | 0.002% Frequency Synthesized Crystal Controlled | | RF Sensitivity | 0.5 uV for 12 dB SINAD | | Adjacent Channel Isolation | 65 dB 50 kHz Off-Channel Rejection | | Spurious Rejection | 60 dB (Image Excluded) | | Ultimate Quieting | Better than 95 dB Companded Channels | | Deviation Acceptance | Up to 10 kHz | | Antenna | Integral with output cable | | Current Drain | 15 mA (Nominal) | | Power Requirements | 9 V Alkaline Battery
Rechargeable Nickel Metal Hydride | | Dimensions (WxHxD) | 1.16 x 2.5 x 3.25" (27 x 57 x 83 mm) | | | | Type | Lapel Mic | | Polar Pattern | Omnidirectional | | | | Type | Conference Table Microphone Adapter | | Frequency Response | 100 Hz to 10 kHz | | Polar Pattern | Hemispherical Over Boundary | | Output Impedance | 1 kΩ (Nominal) | | Sensitivity | -28 dB @ 1 kHz (Reference: 1 V) | | Output Noise | Equivalent: 23.5 dB (A-weighted) | | Maximum SPL | 128 dB (@ 10 kHz load) | | Signal to Noise Ratio | 70.5 dB | | Dimensions (DxH) | 2 x 0.640" (5.08 x 1.625 cm) | | Weight | 1.33 oz (38 g) (With Microphone) | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 10.1 x 8.9 x 3.4" |
