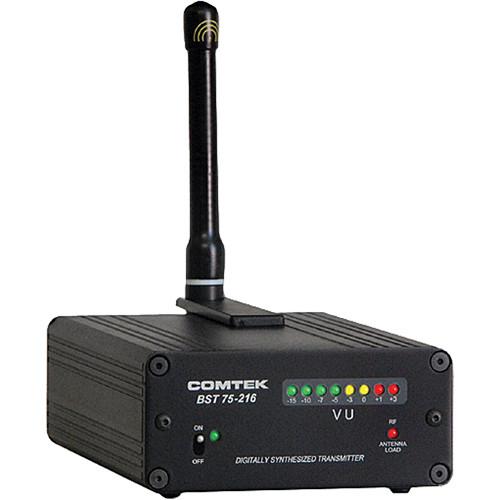

User Manual for Comtek BST 75-216 P Mini Base Station Transmitter with Pro Audio EQ Click to enlarge the picture
Contents of the user manual for the Comtek BST 75-216 P Mini Base
- Product category: Base Stations Comtek
- Brand: Comtek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comtek Base Stations
|
User manual for the Comtek BST 75-216 P Mini Base contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comtek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comtek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comtek product will considerably shorten its lifespan!
|
Product description The Comtek BST 75-216 P Mini Base Station Transmitter with Pro Audio EQ is simple to use and features Flash Memory synthesized channel programmability with a manual, 10-channel selectable switch. A multi-function RF indicator detects bad antenna load, RF presence, and coaxial cable open condition for quick and easy troubleshooting. To accommodate a variety of receivers, the BST 75-216 Transmitter can operate with both non-companded receivers and companded receivers for higher fidelity sound reproduction. A practical, compact, all-metal enclosure is suitable for permanent rack-mount installations or for standalone portable use.
The BST 75-216 P is configured with all 10 channels using the wide band compounded channels for use with the PR-216 receiver only. It also offers extended low end frequency response. - Full fidelity frequency response
- Easy setup and installation
- User selectable RF output power level
In the Box Comtek BST 75-216 P Mini Base Station Transmitter with Pro Audio EQ (216 MHz) C-75 Carrying Case SLW-216-75 Short Load Helical Whip Antenna (216 MHz) Antenna Bracket AP-12V1-75 Universal Switching Power Supply (12VDC Output) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comtek BST 75-216 P Mini Base Station Transmitter with Pro Audio EQ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComtek BST 75-216 P Specs | Audio Inputs | Line level balanced input 0 dBm for 80% modulation (+20 dBm maximum, XLR-3F)Unbalanced input (+5 dBm maximum) or 2 wire electret microphones with bias voltage for electret microphone (-35 dBV at 5 kΩ) with 1/4” phone jack | | Connectors | XLR-3F Combo with 1/4” phone jackBarrel type 5.5 x 2.1 mm power jack DCBNC type RF output | | Indicators | Operation Indicators:LED bar-graph VU meterLED antenna load and SWR indicatorLED DC power indicator | | Antenna | Short loaded BNC whip antennaBNC RF output connector for an external antenna (sold separately) | | FCC Compliance | Type certification and type acceptance under FCC Part 95 | | Power Requirements | 12 VDC, 200 mA maximum | | Frequency Response | 100 Hz to 10 kHz | | Audio Distortion | Less than 1% at 80% modulation | | Gain Control | Audio: Limited to 20 dB | | Limiter | Modulation Limiter: Peak compressor type with high linear overload protection (25 dB)Attack time less than 1 minutes, recovery time 10 ms | | Audio Processing | Companded and non-companded to accommodate a variety of receivers | | RF Output Power | Maximum power output for FCC Part 95 (100 mW) | | Frequency Stability | Better than 0.002% digitally synthesized, crystal controlled | | Frequency Modulation | 10 kHz deviation companded5 kHz deviation non-companded | | Operating Frequency | 216.0125 to 216.9750 MHz (57 channels)Custom factory programmed to 10 of 19 available high-fidelity companded channels or may be programmed to 10 of 38 standard non-companded NB channels | | Harmonic & Spurious Emissions | Better than 50 dB below carrier | | Dimensions | 3.75 x 1.63 x 5.25" (9.53 x 4.14 x 13.34 cm) | | Weight | 17.00 oz (481.94 g) | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 11.3 x 9.1 x 4.6" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
