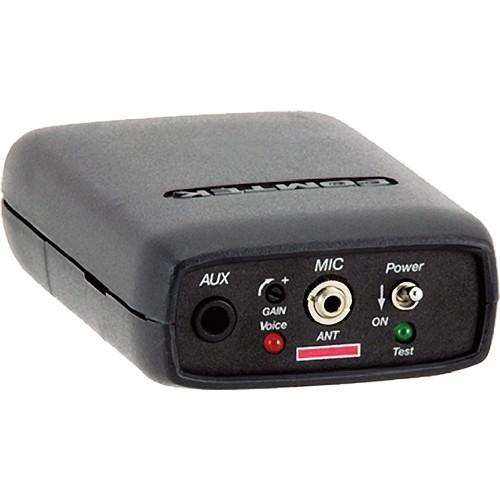

User Manual for Comtek M-216 - Digitally Synthesized Wireless Microphone Transmitter Click to enlarge the picture
Contents of the user manual for the Comtek M-216 - Digitally Synthesized Wireless
- Product category: IFB & Cueing Comtek
- Brand: Comtek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comtek IFB & Cueing
|
User manual for the Comtek M-216 - Digitally Synthesized Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comtek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comtek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comtek product will considerably shorten its lifespan!
|
Product description The M-216 from Comtek is a high-quality wireless microphone transmitter ideal for location sound applications. A 2.5mm microphone input lets you use the mic cable as an antenna. A 3.5mm auxiliary line input is available as well. When using the aux input, a loaded antenna may be connected to the 2.5mm jack. Use the transmitter with the PR-216 headphone receiver to create a confidential audio channel.
The M-216 uses a combination of both analog and digital technologies to offer the best audio quality possible, with low noise, wide dynamic range, and a great frequency response. It can transmit on 38 standard channels and 19 high-fidelity channels for full compatibility. - Compact, lightweight beltpack is ruggedly built for use in the field
- Combined use of analog and digital technologies provides great sound quality
- The 3.5mm line-level mini input allows you to connect a variety of audio sources
- The 2.5mm mic input lets you connect a microphone, or use a loaded whip antenna when inputting a signal with the auxiliary input
- Transmits on 38 standard channels and 19 high-fidelity channels
- Built-in microcontroller automatically sets deviation, audio processing, and EQ
- Operates on a standard 9V alkaline battery for up to 40 hours
- Detachable belt clip included
In the Box Comtek M-216 - Digitally Synthesized Wireless Microphone Transmitter Antenna Aux Input Cable Belt Clip 1 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comtek M-216 - Digitally Synthesized Wireless Microphone Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComtek M-216 Specs | Connectors | 1 x 3.5mm Auxiliary Line Input (Also Used for Battery Charging)
1 x 2.5mm Mic/Antenna Input | | Frequency Response | 80Hz - 10kHz | | Distortion | Less than 1% @ 80% Modulation | | Limiter | Soft Compressor with 30dB Linear Overload Protection | | Modulation | 5kHz Deviation (Ch. 1-40, Non-Companded)
10kHz Deviation (Ch. 41-60, Companded) | | Operating Frequency | 57 Synthesized Channels in the 216-217MHz LPRS Band Under FCC Part 95 | | Battery | 9V Alkaline (Eveready 522 or Equivalent) - Up to 40 Hours
9V NiMH Rechargeable - Up to 12 Hours | | Dimensions (WxDxH) | 2.25 x 1.1 x 3.5" (57 x 27 x 89mm) | | Weight | 5 oz (140g) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 11.5 x 9.4 x 4.9" |
