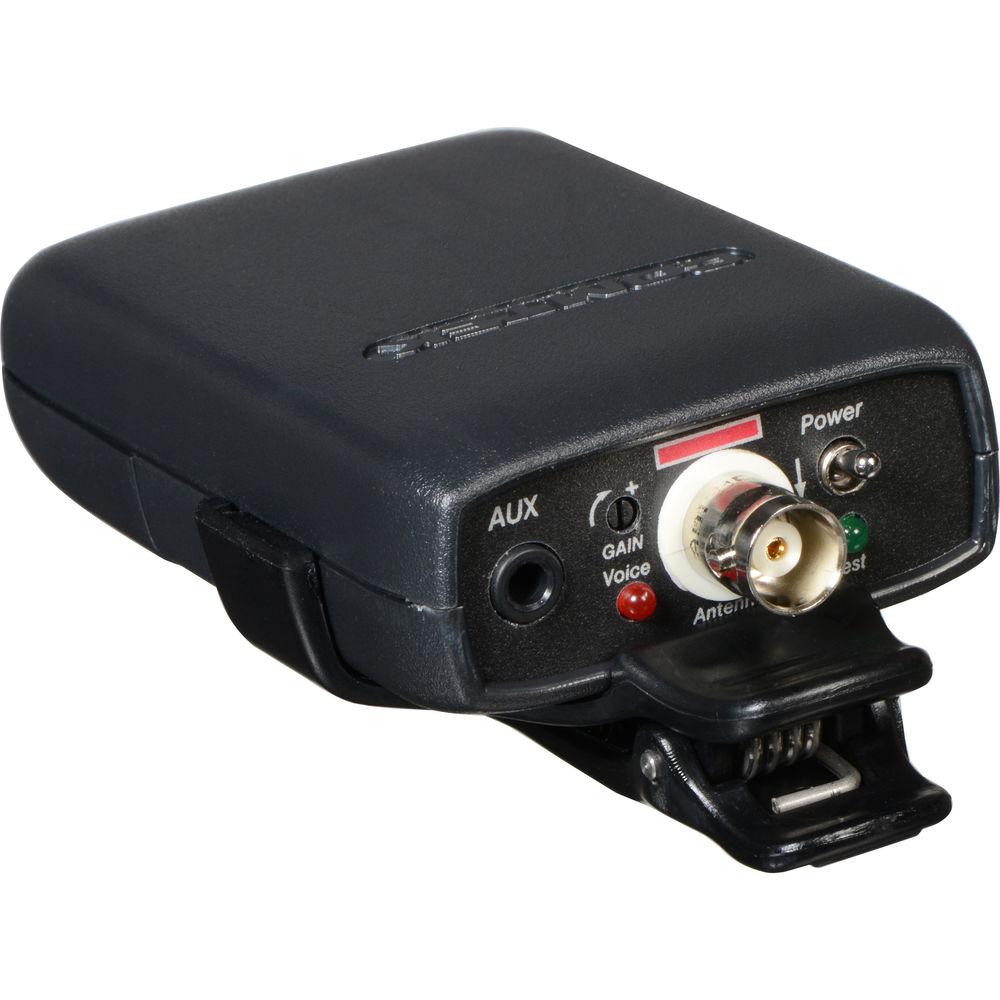

Product description The M-216 Option P7 from Comtek is a high-quality wireless transmitter ideal for location sound applications. The line-level input allows you to connect a variety of audio sources, and the rugged 6" whip antenna provides a great transmission range. Use it with the PR-216 headphone receiver to create a confidential audio channel.
The M-216 Option P7 uses a combination of both analog and digital technologies to offer the best audio quality possible, with low noise, wide dynamic range, and a great frequency response. It can transmit on 38 standard channels and 19 high-fidelity channels for full compatibility. - Compact, lightweight beltpack is ruggedly built for use in the field
- Combined use of analog and digital technologies provides great sound quality
- The 3.5mm line-level mini input allows you to connect a variety of audio sources

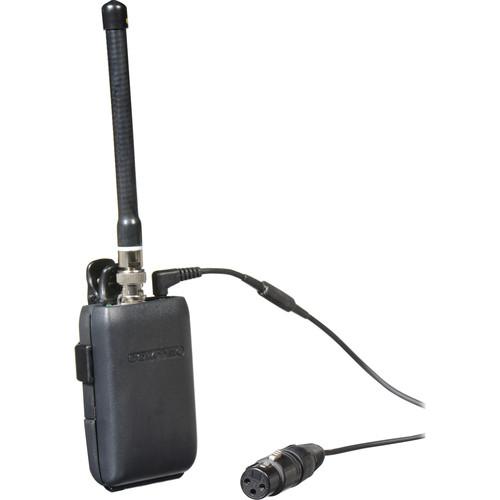

- The 6" short whip antenna connects via a standard BNC connector to provide an extended range
- Transmits on 38 standard channels and 19 high-fidelity channels
- Built-in microcontroller automatically sets deviation, audio processing, and EQ
- Operates on a standard 9V alkaline battery for up to 40 hours
- Detachable belt clip and carry case included

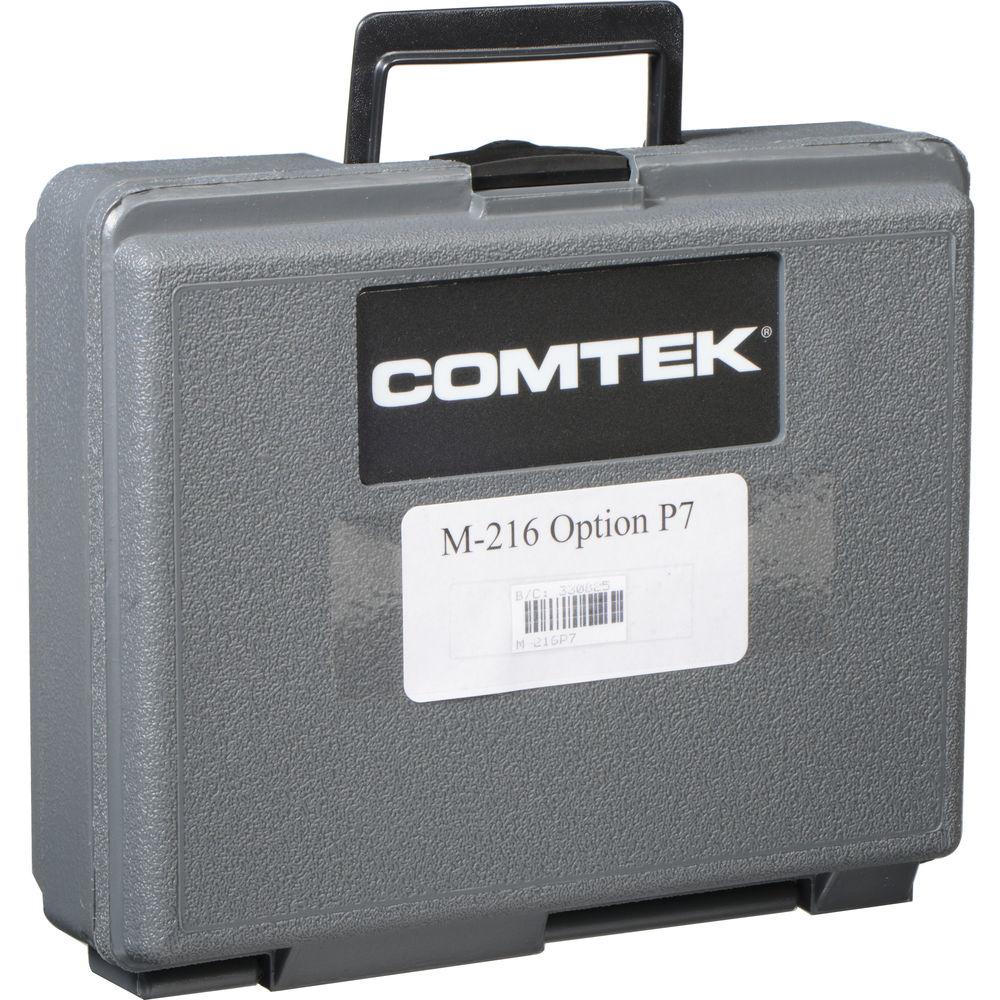

In the Box Comtek M-216 - Digitally Synthesized Wireless Transmitter (Option P7) Antenna CB-36 ST 1/8" (3.5mm) Stereo Mini Cable Belt Clip C-216 Carrying Case 1-Year Limited Warranty User Manual PDF 1.4mbuyurtxdftvbf Table of Contents
|
Upload User Manual
Have you got an user manual for the Comtek M-216 - Wireless Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComtek M-216 Specs | Connectors | 1 x 1/8" (3.5 mm) Line Input (Also Used for Battery Charging)
1 x BNC Antenna Output | | Frequency Response | 80 Hz - 10 kHz | | Distortion | Less than 1% @ 80% Modulation | | Limiter | Soft Compressor with 30dB Linear Overload Protection | | Modulation | 5 kHz Deviation (Ch. 1-40, Non-Companded)
10 kHz Deviation (Ch. 41-60, Companded) | | Operating Frequency | 57 Synthesized Channels in the 216-217 MHz LPRS Band Under FCC Part 95 | | Battery | 9 V Alkaline (Eveready 522 or Equivalent) - Up to 40 Hours
9 V NiMH Rechargeable - Up to 12 Hours | | Dimensions (WxDxH) | 2.25 x 1.1 x 3.5" (57 x 27 x 89 mm) | | Weight | 5 oz (140 g) | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 11.4 x 9.1 x 4.7" |
