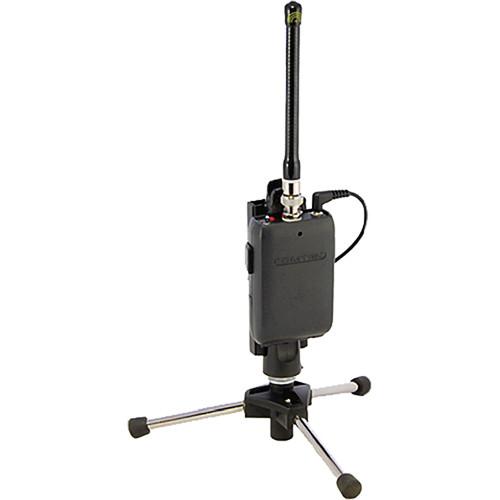

User Manual for Comtek PR-216 Option P7 High Fidelity Receiver Click to enlarge the picture
Contents of the user manual for the Comtek PR-216 Option P7 High Fidelity
- Product category: IFB & Cueing Comtek
- Brand: Comtek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comtek IFB & Cueing
|
User manual for the Comtek PR-216 Option P7 High Fidelity contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comtek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comtek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comtek product will considerably shorten its lifespan!
|
Product description The PR-216 Option P7 High Fidelity Receiver from Comtek lets you wirelessly transmit audio to a speaker, thereby providing greater flexibility for speaker placement. The audio level is adjustable up to +15 dB. In addition to a 9-volt battery, the receiver can be phantom powered through the audio input jack. - Extended Frequency Response
- Rugged, Short Whip Antenna
In the Box Comtek PR-216 Option P7 High Fidelity Receiver 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comtek PR-216 Option P7 High Fidelity Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComtek PR-216 Specs | Audio Output | Headset output +16 dBu (low impedance) | | Connector | 3.5 mm stereo/mono input | | Indicator Lights | 3-function LED (power, battery status, R.F. signal on/off) | | Controls | Power On/Off switch
Volume control
99-position rotary channel selector switches | | Audio Frequency Response | 80 Hz to 12 kHz ±3 dB | | Operating Radio Frequency | Less than 1% (1 kHz tone 5 kHz deviation) | | Operating Frequency | 216 to 217 MHz | | Frequency Stability | 0.002% frequency synthesized crystal controlled | | RF Sensitivity | 0.3 μV for 12 dB SINAD | | Adjacent Channel Isolation | 65 dB 50 kHz off channel | | Spurious Rejection | 60 dB (image excluded) | | Ultimate Quieting | Better than 95 dB | | Deviation Acceptance | Up to 10 kHz | | Antenna | Integral with output cable | | Current Drain | 18 mA nominal | | Power Requirements | 9 volt alkaline/Ni-MH battery | | FCC Compliance | Complies with Part 15 of FCC rules | | Dimensions | 1.06 x 2.5 x 3.75" (2.7 x 5.7 x 8.3 cm) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 10.0 x 5.6 x 5.4" |
