User Manual for Comtek PR-75a AutoSmart-Tuning Receiver Click to enlarge the picture
Contents of the user manual for the Comtek PR-75a AutoSmart-Tuning Receiver
- Product category: IFB & Cueing Comtek
- Brand: Comtek
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Comtek IFB & Cueing
|
User manual for the Comtek PR-75a AutoSmart-Tuning Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Comtek product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Comtek user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Comtek product will considerably shorten its lifespan!
|

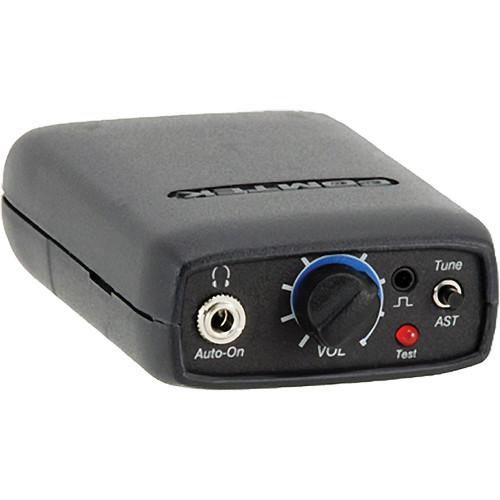

Product description The PR-75a AutoSmart-Tuning Receiver from Comtek is ideal for auditory assistance and other personal communication. The receiver automatically tunes itself to the closest transmitter when it's turned on, so one receiver can be used to tune in to multiple receivers. The receiver runs on 2 AA batteries so it can work anywhere even when you're not near an outlet. The audio output jack doubles as an automatic on/off switch when earphones are inserted or removed. - Up to 100 hours battery life
- Simple to use, reliable, and affordable
- Rugged and durable design
In the Box Comtek PR-75a AutoSmart-Tuning Receiver 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Comtek PR-75a AutoSmart-Tuning Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersComtek PR-75A Specs | Audio Output | Headset output 200 mW average (impedance as low as 16 ohm) | | Connector | Stereo/mono 3.5 mm audio output connector and charging input
2.5 mm stereo connector for I/O data programming. | | Indicator Lights | Multi-function LED (channel-seeking, received signal, no signal, low battery, power, battery status, R.F. signal on/off) | | Controls | Volume control (50 dB range)
Automatic on/off when headphone plugged in/unplugged
One-button tuning control (AST) | | Audio Frequency Response | 100 Hz to 10 kHz ±3 dB | | Operating Radio Frequency | 72 to 76 MHz | | Frequency Stability | 0.002% frequency synthesized crystal controlled | | RF Sensitivity | 1.3 μV for 38 dB SINAD | | Ultimate Quieting | Better than 75 dB | | Deviation Acceptance | Up to 10 kHz | | FM | Non-Companded FM Deviation up to 40 kHz | | Antenna | Integral with headphone cable | | Battery Life | 100 hours with alkaline batteries | | Power Requirements | 2 AA batteries | | FCC Compliance | Complies with Part 15 of FCC rules for scanning receivers | | Dimensions | 1.06 x 2.5 x 3.25" (2.7 x 5.7 x 8.26 cm) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 10.1 x 5.6 x 5.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
