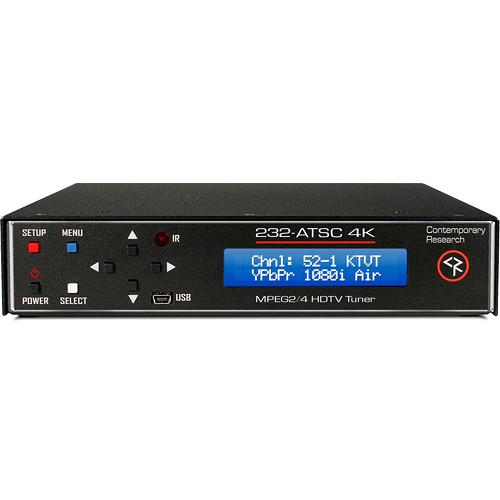

Product description The 232-ATSC 4K HDTV Tuner is the 5th-generation ATSC HDTV tuner from Contemporary Research. New features include the capability to tune H.264 programs up to 1080p60, scale outputs up to UHD 4K, and output IPTV streaming via an Ethernet port. The 232-ATSC 4K is a commercial grade tuner supporting analog and digital MPEG-2/H.264 channels in ATSC, NTSC, and clear QAM formats. Using an optional RF-AB switch, it's capable of switching between antenna and cable feeds. It's also fully compatible with the control commands and operation of previous tuner models, and it has the same 1 RU rack height (two units fit in one rack space). - Key Features
-
- Tunes analog and digital channels in ATSC, NTSC, and clear QAM formats
- Decodes MPEG2 and H.264 digital channels up to 1080p 60Hz
- IPTV streaming output via Ethernet port
- Selectable HDMI video output resolutions: UHD 4K, 1080p, 1080i, 720p, 480p, 480i, or Auto
- Analog HD RGBHV and component video output resolutions: 1080p, 1080i, 720p, 480p, 480i, or Auto
- Analog HD outputs can operate simultaneously with HDMI depending on color space setting
- RGBHV or component output selection from front-panel settings, Web page, or control commands
- UHD 4K and 1080p to 60Hz for more universal applications; 1080i and 720p can be set to 60 or 59.94Hz
- AC-3, PCM, or variable PCM audio formats for digital audio ports and HDMI
- Simultaneous HDMI, SPDIF, and analog stereo audio output
- Front-panel and on-screen menus for tuner setup
- Web pages for remote setup and configuration
- Decodes analog and digital closed captioning
- Two units are 1RU rack-mountable
- Full ASCII 2-way RS-232/Telnet commands
- RS-232 can be daisy-chained to control up to 9 tuners from a single RS-232 port
- Meets RoHS and California energy-saving standards
- Cooling is not required for normal applications; when multiple units are used in one rack, forced air ventilation is recommended to add air flow
In the Box Contemporary Research 232-ATSC 4K HDTV Tuner IR Tuner Remote 4 x AAA Battery Power Supply, 1.5A Maximum, 12 VDC Universal Rack Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Contemporary Research 232-ATSC 4K HDTV Tuner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersContemporary Research 232-ATSC 4K Specs | Input | 1 x RJ-45 10/100 (for Webpage Access, Telnet, and UDP Control)
1 x USB-A Port (for Future Use)
1 x F Connector Female (75 Ohms, -10 to 25 dBmV Typical) | | Video Output | 1 x HDMI 1.3 Type A
1 x Component on Three RCA Ports
1 x Composite on RCA (1 V p-p at 75 Ohms)
1 x VGA HD-15 | | Audio Output | Simultaneous HDMI, SPDIF, and Analog Stereo:
HDMI (Embedded): AC-3/PCM/PCM Variable Level
Digital Audio SPDIF: Coax and Optical Output, AC-3/PCM/PCM Variable Level
Analog Audio: Stereo RCA Output, Variable Level | | Resolution | HDMI:
3840 x 2160 at 60 Hz, 1080p60, 1080i29.97/30, 720p59.94/60, 480p59.94/60, 480i29.97
Component, VGA:
1080p60, 1080i29.97/30, 720p59.94/60, 480p59.94/60, 480i29.97
Composite:
480i29.97 | | Frequency Range | ATSC and Clear QAM (Cable) Television 54-866 MHz | | TV System | ATSC, NTSC, Cable, and Clear QAM (1080i/720p/480p/480i) | | Tuning | Off-Air 2-69 (NTSC and 8-VSB) and CATV 1-135 (Analog, 64QAM, 256QAM, 8-VSB) | | Aspect Ratio | 4:3, 16:9, and Zoom | | Captioning | DTV and Analog
On-Screen:
Displays On-Screen Analog and Digital Captioning on All Video Ports
Captioning Data:
Captioning Data from Analog and Digital Channels Will be Provided as Line 21 Captioning on the Composite Video Port | | RS-232 | DB-9 Male, RS-232 Data Link to Control System, 1200 to 230K Baud (9600 Default), 8 Data Bits, No Parity, 1 Stop Bit | | IR | 3.5 mm Stereo Jack Input for Optional IR-RXC IR Receiver | | A/C | 3.5 mm Control Output to Operate the RF-AB Air/Cable Selector Switch | | Power Input | 2.1 mm Coaxial Jack (Inside Center Conductor Positive)
1.1 A Maximum
11-14 VDC, 12 VDC Typical
13.2 W / 45 BTU, 15.2 W / 52 BTU Including Power Supply
0.198 A at 114 VAC Current Draw with power supply | | Compliance | RoHS Compliant and Meets California Energy-Saving Standards | | Enclosure | Aluminum with Black Powder Coat Paint | | Lock | Parental Option for Channels and/or Rating | | Rack Height | 1 RU (Two Units Fit Side by Side) | | Dimensions | 8.5 x 1.8 x 8" / 22 x 4.4 x 20 cm | | Weight | 1.8 lb / 1 kg | | | | Package Weight | 3.425 lb | | Box Dimensions (LxWxH) | 15.0 x 10.3 x 3.2" |
