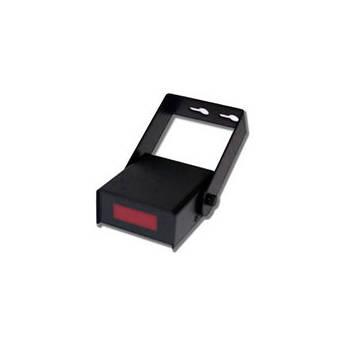

Product description The IR-RXC IR Receiver from Contemporary Research extends IR reception for many iC-series controllers. To allow the sensor to be positioned for optimal reception, a swivel mount is included. Powered by the external IR IN input on an iC-series controller, the IR-RXC is switchable for sensing Contemporary Research high-frequency 57 kHz (default) and low-frequency 38 kHz IR. - Features
-
- 4-position switch selects IR operating modes
- Dip switch allows for high or low frequency selection
- Red LED indicates IR code reception
- Red status LED indicates IR code reception
- Includes 6' IR connection cable terminated with 3.5mm male plugs at each end, and a swivel-mount bracket
- Compatibility
- ICC2-IRC, ICC2-VDC, 232-STS, ICW-IRC, ICW-VDC, and ICW-STA iC controllers and tuner 1
Please Note: For ICC2-IRC, 232-STS, ICW-IRC, and ICW-STA the IR IN input is a factory-installed option. close In the Box Contemporary Research IR-RXC External IR Receiver IR Connection Cable Swivel-Mount Bracket Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Contemporary Research IR-RXC External IR Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersContemporary Research 5032-001 Specs | Reception | Includes high-frequency (57 kHz) or low-frequency (38 kHz) sensors
Can be selected by DIP switch | | DIP Switch | 4-position switch for selecting IR operating modes | | IR Out | 3.5 mm jack to connect IR signal and power to an iC controller or tuner | | Status LEDs | Red LED indicates IR code reception | | Power | 10.5 to 16 VDC (12 VDC typical)
10 mA typical, 25 mA maximum
Powered by iC controller or tuner | | Enclosure Material | All aluminum with durable black powder coat paint | | Dimensions | Receiver: 1.13 x 2.35 x 2.65" (2.9 x 6.0 x 6.7 cm)
Bracket: 1.00 x 2.59 x 2.95" (2.5 x 6.6 x 7.5 cm)
Combined: 1.13 x 2.60 x 4.95" (2.9 x 6.6 x 6.7 cm) | | Weight | 3 oz (85 g) |
