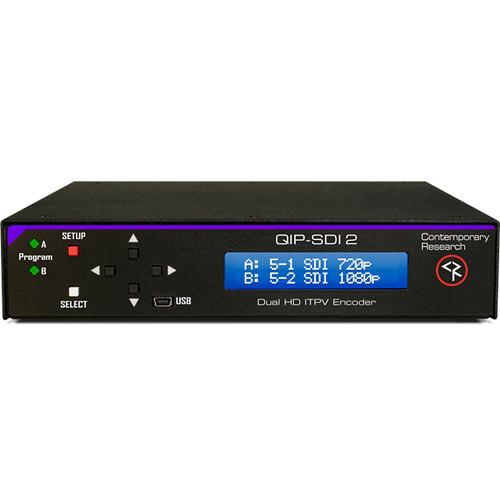

User Manual for Contemporary Research QIP-SDI-2 Dual SDI Inputs IPTV 1080P Encoder Click to enlarge the picture
Contents of the user manual for the Contemporary Research QIP-SDI-2 Dual SDI Inputs
- Product category: RF Equipment Contemporary Research
- Brand: Contemporary Research
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Contemporary Research RF Equipment
|
User manual for the Contemporary Research QIP-SDI-2 Dual SDI Inputs contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Contemporary Research product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Contemporary Research user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Contemporary Research product will considerably shorten its lifespan!
|
Product description The QIP-SDI-2 Dual SDI Inputs IPTV 1080P Encoder from Contemporary Research features two SDI inputs with dual encoders that process two MPEG2 or H.264 video streams, each supported by a hardware scaler that can accept and format virtually all video signals between 1080p and 480i in NTSC, VGA, and PAL standards. Audio can be embedded, or fed separately to digital SPDIF or analog stereo inputs.
Two NTSC inputs support composite video or video with closed captioning data. The converter is fully convergent and able to output two independent single-program IPTV streams through the gigabit Ethernet port. The converter is easy to set up and monitor via the web or front panel buttons, as well as updating the firmware. Up to two units can be installed in one rack space and mixing other QIP encoders gives you the ability to handle 4 programs per rack space.
The encoder creates up to two high-definition SPST Unicast or IPTV streams, encoded as H.264 or MPEG2. It can convert stereo and PCM to stereo AAC or MP12 and pass-through or AC-3, and AAC. The dual hardware scalers accept up to 1080p 3G videos, including 60/30 Hz, and PAL formats, and can deliver programs at a set resolution. - Embedded 608/708 captioning and AES, AAC, and AC-3 audio formats
- Two Composite/CC video inputs for encoding, captioning, or EAS use
- Two analog Stereo and two SPDIF coax audio inputs
- Creates up to two high-definition SPST Unicast or IPTV streams, encoded as H.264 or MPEG2
- Can create SAP dual-language audio for each program
- Accepts 608.708 embedded captioning and decodes Line 21 captioning from composite video inputs
- EAS operation and up to 135 channels
In the Box Contemporary Research QIP-SDI-2 Dual SDI Inputs IPTV 1080P Encoder Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Contemporary Research QIP-SDI-2 Dual SDI Inputs IPTV 1080P Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersContemporary Research 5109-001 Specs | Inputs | 2 x HD-SDI
2 x Composite/CC video
2 x Analog stereo
2 x SPDIF coax audio
Auto/Scaled | | Programs | 2 x HD | | Resolution | 3G Level A 1080p and 1080i/720p 59.94/60 Hz HD-SDI, and SD-SDI 480i widescreen/4:3 | | IPTV | MPEG2/MPEG4 | | Supported Video Refresh Rates | 29.97/30/59.94/60 Hz | | Closed Captioning | 2 x SDI 608/708
2 x Line 21 CC | | Audio | AES, AAC and AC-3 | | Firmware Updates | USB or IP | | Configuration | Front panel, Web, USB | | Power Requirements | 11.5 to 13.5 VDC, 12 VDC typical
1.1 A maximum | | Dimensions | 8.5 x 6.0 x 1.73 (21.6 x 15.2 x 4.4 cm) | | Weight | 1.5 lb (680 g) |
