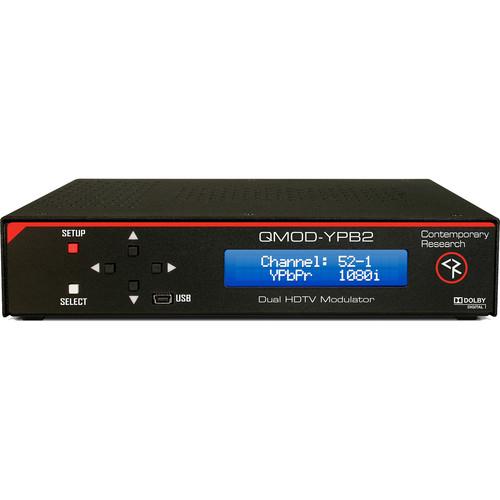

User Manual for Contemporary Research QMOD-YPB 2 HDTV Modulator and IPTV Encoder Click to enlarge the picture
Contents of the user manual for the Contemporary Research QMOD-YPB 2 HDTV Modulator
- Product category: RF Equipment Contemporary Research
- Brand: Contemporary Research
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Contemporary Research RF Equipment
|
User manual for the Contemporary Research QMOD-YPB 2 HDTV Modulator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Contemporary Research product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Contemporary Research user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Contemporary Research product will considerably shorten its lifespan!
|
Product description Whether for digital signage or other form of video content distribution, the QMOD-YPB 2 HDTV Modulator and IPTV Encoder from Contemporary Research accepts standard video inputs and encodes the signal for output over standard TV RF or Ethernet. TV RF channels 2-135 are available for output selection. This QMOD-YPB 2 model has two analog component and composite video inputs with RCA audio. 1080p, 1080i, and 720p HD resolutions are supported, and 480p, NTSC as well as PAL SD resolutions are also supported. Using the internal scalers, any supported video resolution can be set to match your current workflow for consistent quality and screen compatibility. - Encoding
-
- Internal hardware scalers support up to 1080p60 video, resolution can follow input video or scaled to a specific resolution
- Zoom, shrink, and reposition content for edge-to-edge representation
- Create an HD dual program MPEG2 or H.264 stream for broadcast over RF
- Encodes audio as AAC or AC3, and can create dual-language SAP audio for each program
- Decodes Line 21 captioning from composite video inputs
- Output
-
- Delivers a fully agile QAM 64 single or QAM 256 dual program on digital cable on channels 2-135
- Up to 270 HD programs and 135 channels per system
- Streams MPTS/SPTS Multicast/Unicast IPTV from the Gigabit Ethernet port
- Distributes channel over an on-site broadband cable system with an adjustable output level to 29 dBmV, compatible with all cable format broadband systems
In the Box Contemporary Research QMOD-YPB 2 HDTV Modulator and IPTV Encoder Power Supply IR Remote Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Contemporary Research QMOD-YPB 2 HDTV Modulator and IPTV Encoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersContemporary Research 5097-001 Specs | Inputs | 2 x RCA YPbPr
2 x RCA Composite
2 x RCA Analog Stereo Audio
2 x SPDIF | | Outputs | 1 x RJ45 Ethernet
1 x Coaxial RF Out | | Resolution Support | 1080p, 1080i, 720p, 480p, NTSC, PAL | | Encoding | Video:
MPEG2 HD: 10-25 Mbps
MPEG2 SD: 5-6 Mbps
H.264 HD: 5-10 Mbps
H.264 SD: 2-4 Mbps
Audio:
Converts PCM or MPEG1, Layer 2 audio to stereo AC-3, AAC, or MP2 | | Modulation | Switchable 64/256 QAM, J83 Annex B, Interleaving Modes (128,1)
MER 38 dB typical | | Power Consumption | 11.5-13.5 VDC, 1.1 A (maximum) | | Power Supply | 12 VDC, 2 A
2.1mm coaxial jack | | Dimensions | 8.5 x 1.7 x 6" / 22 x 6 x 15 cm | | Weight | 1.5 lb / 680 g | | | | Box Dimensions (LxWxH) | 16.0 x 11.0 x 4.0" |
