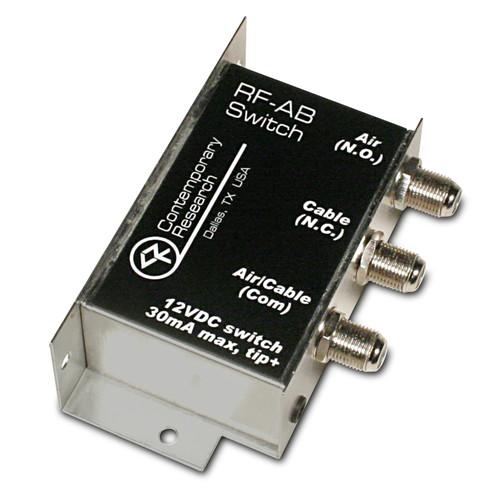

Product description The RF-AB Radio Frequency Switch from Contemporary Research is a self-terminating remote controllable RF (Radio Frequency) A/B switch. When used with the CR 232-ATSC+ HDTV tuner (not included), this unit will automatically switch between air and cable RF feeds. The included 3.5mm cable connects this switch to the A/C jack on the back of the tuner. It correctly handles RF signals by terminating the RF feed when it is switched off. In addition, the switch will default to the cable input when there is no DC power. - Compatibility
- Connects to 232-ATSC+ HDTV tuner for integrated cable/air channel tuning
- Switches two RF feeds to one output
- Terminates RF inputs when switched off
- 2.5 GHz bandwidth allows use for air, cable, and satellite RF
- Remote controllable with 12 VDC current on/off
- Defaults to cable input when unpowered
- Dual brackets allow for vertical or horizontal mounting
In the Box Contemporary Research RF-AB Self-Terminating & Closure Controlled Radio Frequency Switch 3.5mm to 3.5mm Control Cable (6') Limited 2-Year Warranty Brochure PDF 782.4kbtubdtzwubwscbcdu Table of Contents
|
Upload User Manual
Have you got an user manual for the Contemporary Research RF-AB Self-Terminating & Closure Controlled Radio Frequency Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersContemporary Research 5077-001 Specs | Switching | High-frequency NO/NC relay operation, defaults to cable input when unpowered | | Termination | Unswitched RF input is terminated at 75 Ohms | | Bandwidth | Frequency pass range DC to 2.5 GHz | | Signal Level | +58 dBmV maximum | | Insertion Loss | <0.12 dB at 900 MHz
0.25 dB at 2.1 GHz
0.4 dB at 2.5 GHz | | Isolation | 78 dB at 100 MHz
70 dB at 900 MHz
49 dB at 2.1 GHz
40 dB at 2.5 GHz | | Control | Switch control 10 to 19 VDC, typical 12 VDC at 30mA max
Defaults to cable input when unpowered
3.5 mm control input jack | | Dimensions (W x H x D) | 1.9 x 1.18 x 3.75" (48 x 30 x 95 mm) excluding connectors
2.4 x 1.18 x 3.75" (61 x 30 x 95 mm) including connectors | | Weight | 8 oz (226 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 6.0 x 3.4 x 1.5" |
