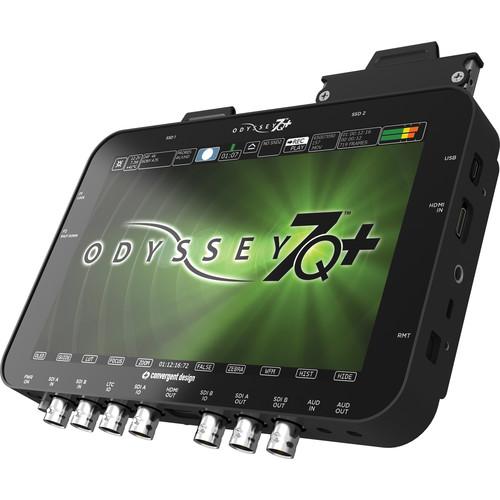

User Manual for Convergent Design Odyssey7Q OLED Monitor & 4K Recorder Click to enlarge the picture
Contents of the user manual for the Convergent Design Odyssey7Q OLED Monitor &
- Product category: Recorders & Duplication Convergent Design
- Brand: Convergent Design
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Convergent Design Recorders & Duplication
|
User manual for the Convergent Design Odyssey7Q OLED Monitor & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Convergent Design product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Convergent Design user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Convergent Design product will considerably shorten its lifespan!
|
Product description Convergent Design's Odyssey7Q+ is a monitor/recorder that provides all of the features and functionality of the Odyssey7Q but adds support for 4K recording over HDMI. It features a 7.7", 1280 x 800, OLED, touchscreen display with a 3400:1 contrast ratio, true blacks, and professional monitoring features such as waveform, histogram, vectorscope, anamorphic de-squeeze, and 3D LUT support. Out-of-the-box, the Odyssey7Q+ can record up to DCI 4K (4096 x 2160) and Ultra HD (3840 x 2160) in the compressed Apple ProRes 422 HQ format or up to 2K/1080p using the uncompressed DPX file format. The Titan Extract option, which allows you to create multiple HD windows from a single 4K source, is included. Additionally, it supports several RAW recording options for ARRI, Canon, Sony, and POV cameras, which are available for purchase or rental from Convergent Design's website.
The Odyssey7Q+ has two 3G-SDI inputs (6G-SDI compatibility requires firmware v2016.01), two 3G-SDI outputs, and two bi-directional 3G-SDI connectors which can be assigned as either inputs or outputs via menu selection. It also has a 4K-capable HDMI input and an HDMI output that supports up to 1080p30 4:2:2. Most of the inputs/outputs are on the bottom of the monitor, with 1/4"-20 mounting threads on the sides. Dual SSD slots are provided for recording video to Convergent Design Premium 2.5" SSDs, which offer high speeds, reliability, and power-loss protection. Select Samsung SSDs are also supported for more cost-effective recording media. An AC adapter is included for powering the device, with optional battery plates available. Also included is a 36" Micro HDMI to HDMI cable and a HDMI to Mini HDMI adapter, useful for using the Odyssey7Q+ with DSLRs and mirrorless cameras with Micro HDMI outputs. - Titan HD Extract Option
- The Titan HD Extract option allows you to take one camera to a shoot and obtain three separate recordings (plus a live switch between the three images). This feature can add a multi-cam look to single-camera shoots without the expense of multiple cameras or recorders. One view is an HD downscale/super-sample of the full image area, and two views are windows selected from the full image area. These views can be panned smoothly through the 4K field, and the three views can be Live-Switched. All four HD views (The master/wide, the two windowed views, and the live-swtiched/program) can be recorded simultaneously in Apple ProRes with matching timecode and file names.
- Firmware 2016.1
- The following features have been added to the Odyssey 7Q+ with the release of firmware update 2016.1:
- SDI inputs now support 6G-SDI in addition to 3G-SDI.
- 4K@60 can be recorded to Apple ProRes 422.
- The Odyssey now supports 4K@30 from Blackmagic Design cameras.
- Record 4:4:4 2K and HD video signals in 10- & 12-bit Apple ProRes 4444 or 4444(XQ). This supports many cameras, including Sony F3/F5/F23/F35/F55, Canon C300 Mark II/C500, Panasonic HPX3100, and more. (The HD or 2K input stream must be video, not raw, to use the Apple ProRes 4444 modes at this time.)
- View two HD video signals while recording one in Apple ProRes
- Spot Meter - advanced monitoring tool - comprehensive exposure meter
- Additional & improved Preset LUTs New and improved LUTs for Canon C-Log, C-Log2, and Panasonic V-Log
- FS7/FS700 2K HS RAW->2K Apple ProRes: Capture 2K Apple ProRes 422, up to 240 fps from the FS700 or FS7 camera with the XDCA Expansion unit. (Requires optional Odyssey Raw Bundle)
Monitoring - Professional Monitor
- 7.7" 1280x800 OLED touchscreen panel featuring true blacks and accurate color with a full range color gamut for REC709 or DCI-P3 viewing.
- Flexible I/O
- The Odyssey7Q+ features two dedicated 3G-SDI inputs, two dedicated 3G-SDI outputs, two switchable 3G-SDI input/outputs, one HDMI input, one HDMI output (up to 1080p 30fps). Active Cross-Conversion means that all outputs are always active regardless of which input is used.
- Multi-Stream Monitoring
- Up to four HD video signals can be input and viewed simultaneously (quad-split) or live-switched (choose between inputs for full screen display). A future paid update will allow Multi-Stream Recording of up to four simultaneous Apple ProRes 422 (HQ) files and an XML log file of the live switch.
- Image Analysis Tools
- Waveform— Luma only, RGB Parade, Red only, Blue only, Green only, Full Size and Compact Size options
Histogram — Luma only, RGB Parade, Red only, Blue only, Green only, Full Size and Compact Size options
Vectorscope — Analog or digital; Trace display in green or color (true CbCr); Variable Zoom 1.0x - 15.0x (finger drag left-right); Zoom Presets 1, 2, 5, 10, 15x (finger drag up-down)
False Color — six programmable levels & adjustable ranges
Zebras — Dual adjustable zebra exposure indicators, selectable colors
LUT Support — LUTs for Log formats from ARRI, Blackmagic Design, Canon Panasonic and Sony, plus up to 140 custom 3D-LUTs in .CUBE format - Focus Assist & Pixel Zoom
- Focus Assist — Video + Edges (Peaking), Edges Only, Enhanced Edges, user choice of color: Red, Green, or Blue
Pixel Zoom — 1:1 and 2:1 Pixel Zoom with moveable image
Hyper Zoom — 4, 6, 8, 10, and 12x Pixel Zoom on selected portion of image displayed in the lower right corner of the OLED display with selectable color reference frame
- Anamorphic De-Squeeze
- 2.0x, 1.5x, 1.33x de-squeeze options for monitoring anamorphic footage. Adjusted image sent to video outputs; recording unaffected.
Center Extraction mode de-squeezes and magnifies center portion of image for common anamorphic formats. Adjusted image sent to video output; recording unaffected. - 1.33x (1.78:1) — Stretches center 4:3 image to cover 16:9 frame
- 2.0x (2.39:1) — 2.0x stretch with image zoom and crop to 2.39:1
- 2.0x (2.67:1) — 2.0x stretch with image zoom to 2.67:1
- LUT System & Custom 3D LUT Support
-
- Expanded set of Preset LUTs
- Support for user-loadable custom 3D LUTs (up to 140)
- 17x, 32x, 33x, 64x, 65x 3D-LUT .CUBE formats supported
- .CUBE LUTs translated for Odyssey using Convergent Design 3D-LUT Converter App
- LUTs are currently for monitoring only, not recording
- LUTs viewed during recording noted in XML file metadata (new CD Apple ProRes Transfer Utility 1.7 required)
- Extended and Legal Range LUTs supported (EE vs LL)
- Image Analysis Tools can measure "LUTTED" image or original source
- Video outputs can independently turn ON/OFF LUT or Mirror OLED
- Built-in Preset 3D LUTs
- ARRI_EE_LOG_R709 — Standard Alexa LogC to Video LUT (camera default)
Blackmagic Design
BMD_CC_EE_FILM_V — Blackmagic Cinema Camera LUT from DaVinci Resolve (Version 2)
BMD_PC_EE_FILM_V2 — Version 2 Blackmagic Production Camera 4K LUT from DaVinci Resolve
Canon_EE_709_LOG_WDR — Canon Log/Rec.709 to Wide Dynamic Range Rec.709
Canon_EE_Cin_LOG_WDR — Canon Log/CinemaGamut to Wide Dynamic Range Rec.709
PANASONIC_EE_LOG_709 — Duplicate of the ALEXA Rec.709 LUT
RED_EE_RLF_RG3 — REDlogFilm to REDgamma3 with color space as input, e.g. REDcolor3
SONY_EE_Slog1_R800 — S-Log1 to Rec.709 (800%) with no color space change, matching the in-camera MLUT
SONY_EE_Slog2_LC709A — Alexa style Low Contrast Rec.709, converted from the Sony original to Extended range in and out, to match the in-camera MLUT
SONY_EE_Slog3C_L709A — Alexa-style Low Contrast Rec.709, converted from the Sony original to Extended range in and out, to match the in-camera MLUT
SONY_EE_Slog2_R800 — S-Log1 to Rec.709 (800%) with no color space change, matching the in-camera MLUT
SONY_EE_SL2_L709A-1 — S-Log2 to Rec.709 when rating the FS700 at 1000ISO (1 stop over)
SONY_EE_SL2_L709A-2— — S-Log2 to Rec.709 when rating the FS700 at 500ISO (2 stops over)
SONY_EE_SL3C_L709A-1 — S-Log2 to Rec.709 when rating the FS7 at 1000ISO (1 stop over)
SONY_EE_SL3C_L709A-2 — S-Log2 to Rec.709 when rating the FS7 at 500ISO (2 stops over)
Note: All LUTs listed are in the industry-standard .cube format and are available with firmware v2015.7 or later. They must be loaded through the CD 3D-LUT Converter App and then loaded onto an Odyssey SSD or Odyssey Utility Drive in order to then be loaded into the Odyssey7Q+. Additional LUTs can be downloaded from Convergent Design's website. - Additional Monitoring Features
- 4K / 2K Monitoring Modes — 17:9 Letterboxed within 16:9 image or Center-Cut to 16:9. Letterbox or Center-Cut image is sent to video outputs, full image frame is recorded
Monochrome Monitoring Mode — View Luma only or individual Red, Green, or Blue channel in grey tone
Aspect Ratio Guides — Standard and Custom (user adjustable), may be used for framing guides, Horizontal/Vertical framing guides available Recording - 4K / UHD / 2K / HD Video Recording
- Record 4K (4096x2160), UHD (3840x2160), 2K (2048x1080) and HD (1920x1080, 1280x720) Video in Apple ProRes 422 (HQ) over SDI. The Odyssey7Q+ can record 4K/UHD 10-bit or 1080p60 10-bit over HDMI.
- Uncompressed DPX 4:4:4 RGB Video Recording
- Record 2K (2048x1080) and HD (1920x1080) Video in 12-bit or 10-bit uncompressed DPX files.
- HDMI 4K/UHD to 2K/HD Supersampling
- An HDMI-based 4K (4096x2160) or UHD (3840x2160) video signal can be supersampled in real time in the Odyssey7Q+ to a 2K (2048x1080) or HD (1920x1080) video signal and recorded in Apple ProRes (HQ, 422, or LT). The resulting images out-resolve the 2K/HD image that many smaller cameras can produce internally. Another advantage is if the camera is limited to 8-bit output, the Odyssey7Q+ supersampling will result in a pseudo-10-bit color sampling for improved color reproduction.
- Included Recording Options
- Compressed Formats:
4K/UHD 10-bit YCC 4:2:2 up to 30fps in Apple ProRes 422 HQ, 422, 422 LT
2K/1080p 12-bit RGB 4:4:4: up to 30fps in Apple ProRes 4444 Regular and XQ
2K/1080p 12-bit RGB 4:4:4: up to 60fps with Canon C500 in Apple ProRes 4444 Regular and XQ
2K/1080p 10-bit YCC 4:2:2 up to 60fps in Apple ProRes 422 HQ, 422, 422 LT
1080i 10-bit YCC 4:2:2 up to 60i in Apple ProRes 422 HQ, 422, 422 LT
720p 10-bit YCC 4:2:2 up to 60fps in Apple ProRes 422 HQ, 422, 422 LT
Uncompressed Formats:
2K/1080p RGB 10/12-bit 4:4:4 up to 30fps in DPX file format
1080p RGB 10-bit 4:4:4 up to 60fps in DPX file format - Record Options for Purchase or Rental
- ARRI ALEXA ARRIRAW
ARRIRAW (16:9) up to 60fps
Canon Cinema Raw (C500/C300 Mark II)
4K/UHD RAW up to 60fps (30fps for C300 Mark II)
2K/HD 12-bit up to 30fps
QHD RAW up to 30fps (C300 Mark II only)
4K RAW to 4K Apple ProRes up to 30fps (C300 Mark II only)
QHD RAW to UHD Apple ProRes up to 30fps (C300 Mark II only)
Sony FS RAW (FS7/FS700)
4K RAW up to 60fps
2K RAW up to 240fps
4K RAW to 4K/UHD Apple ProRes up to 60fps
4K RAW to HD Apple ProRess up to 240fps
4K RAW Burst to 4K/UHD Apple ProRes at 100 and 120fps (FS700 only)
POV RAW
POV 2K 10-bit RAW
POV HD 10-bit RAW
POV HD 12-bit RAW
Note: ARRIRAW above 30fps, Canon RAW 50/60fps, and Sony FS 2K RAW 200fps and 240fps require two SSDs - Record Triggers
- Touchscreen
SDI record trigger (ARRI, Canon, Panasonic, Red, Sony)
HDMI (with compatible cameras) - SSD Recording Media
- To enable recording on the Odyssey, Convergent Design Premium SSDs (Odyssey SSDs) or third party SSDs qualified by Convergent Design must be used.
- Third-Party SSD Support
- The Odyssey 7Q+ supports approved third party SSDs (optional SSD Handle kits required to mount). Qualified third-party SSDs include:
- Samsung 850 Evo PRO in 128GB, 512GB, and 1TB
- Samsung 850 Evo 1000GB
Note: Samsung SSDs draw more power than Odyssey SSDs. Convergent Design recommends using an AC-powered USB3 adapter or a Thunderbolt adapter when connecting Samsung SSDs to a computer. - Designed, Built, and Tested in the USA
- Convergent Design monitors/recorders are designed and built in the United States and each model is thoroughly test before they are shipped. They go through a lengthy burn-in, where they are heat cycled while operating, and then endure another lengthy period where they are repeatedly turned on and off. They are also drop tested, then individually tested, all in Convergent Design's factory in Colorado Springs, Colorado, USA.
UPC: 722301479605 In the Box Convergent Design Odyssey7Q+ OLED Monitor & 4K Recorder Micro HDMI to HDMI Cable (36") HDMI to Mini HDMI Adapter 36" HD-SDI 3G Ultra-Thin Cable USB 3.0 SSD Reader Plastic Case for SSD SSD Handle Pack (5 Handles) AC Adapter Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Convergent Design Odyssey7Q OLED Monitor & 4K Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Convergent Design Odyssey7Q OLED Monitor & 4K Recorder can be downloaded in PDF format at the link stated below.
Technical parametersConvergent Design 100-10003-100 Specs | | | Panel Type | OLED | | Display Size | 7.7" / 19.5 cm | | Screen Resolution | 1280 x 800 | | Viewing Angle | Horizontal: 176° | | Touchscreen | Yes | | Contrast Ratio | 3400:1 | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | | | Video | 4 x BNC (3G-SDI) Input
1 x HDMI Type C (HDMI 1.4b) Input
2 x BNC (3G-SDI) Output
1 x HDMI Type C (HDMI 1.4a) Output | | Embedded Audio | HDMI: 2-Channel
SDI: 2-Channel | | Audio | 1 x 3.5 mm Line Input
1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 | | Power | 1 x Barrel Input | | Other I/O | 1 x Micro-USB
1 x Proprietary | | Card Slot | None | | | | Camera Trigger | SDI, HDMI | | Encoding Formats | 4096 x 2160
ProRes 422 HQ, 422, LT 10-Bit 4:2:2 at up to 60 fps
DNxHD 10-Bit 4:2:2 at up to 60 fps
3840 x 2160
ProRes 422 HQ, 422, LT 10-Bit 4:2:2 at up to 60 fps
DNxHD 10-Bit 4:2:2 at up to 60 fps
2048 x 1080
ProRes 422 HQ, 422, LT 10-Bit 4:2:2 at up to 60 fps
DNxHD 10-Bit 4:2:2 at up to 60 fps
1920 x 1080
DPX 12-Bit 4:4:4 at up to 30 fps
DPX 10-Bit 4:4:4 at up to 60 fps
ProRes 4444 XQ 12-Bit 4:4:4 at up to 60 fps
1280 x 720
ProRes 422 HQ, 422, LT 10-Bit 4:2:2 at up to 60 fps
DNxHD 10-Bit 4:2:2 at up to 60 fps | | Recording Media | 2 x 2.5" SSD (SATA III) | | | | DC Input Power | 6.5 to 34 VDC | | Battery Type | None | | Power Consumption | 8 W (Typical)
15 W (Maximum) | | | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Storage Temperature | -4 to 128°F / -20 to 70°C | | | | Material of Construction | Magnesium | | Dimensions (W x H x D) | 7.9 x 6.1 x 1" / 20 x 15.5 x 2.5 cm | | Weight | 1.2 lb / 0.56 kg | | | | Package Weight | 3.07 lb | | Box Dimensions (LxWxH) | 14.2 x 10.6 x 2.3" |
