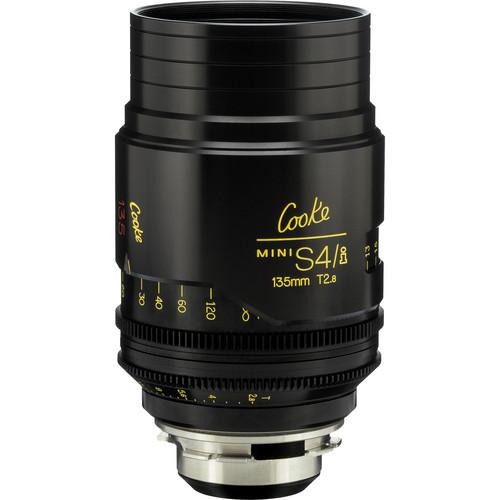

Product description Cinema Lens Care and Maintenance Read More wwxvtetzvvyywf The 135mm T2.8 miniS4/i Cine Lens from Cooke comes with an illustrious heritage: most Hollywood films made in the first half of the 20th century were shot with Cooke lenses. Now, Cooke has revived the brand with a new set of lenses that further extend the company's reputation for quality into the digital era. These lightweight, cost-effective companions to Cooke's already established S4/i lenses carry over the most desirable features of their more expensive brethren, sacrificing only a single T-stop in the process. And yet with their aperture range of T2.8 to T22, the Cooke miniS4/i remain extremely flexible and make up for light sensitivity with reduced size, weight, and cost.
This 135mm lens is a prime (no pun intended) example: its PL mount makes it compatible with the most commonly used professional digital cinema cameras, including the RED ONE, Sony F35 and F3, Canon C300 PL, and Arri D21. Color-matched and interchangeable with all Cooke lenses, this lens combines classic, hand-fitted construction with a linear iris, cam-style focus, and /i Technology – which provides EXIF-like data to camera operators, cinematographers, and post-production technicians requiring precise measurements of lens and camera settings.
Cooke miniS4/i optics, meanwhile, are beyond superb, controlling flare, distortion, veiling glare, and spherical aberrations with the aperture wide open. This combination of unmatched image quality, state-of-the-art technology, and cost-effective durability makes this lens the perfect tool for multi-camera shoots, second-unit photography, stunt work, or filmmaking on a budget. - Optical Design
- The optics are designed to give maximum performance at full aperture with superior control of flare, distortion, and spherical aberration
- /i Electronics
- A cable connector near the lens mount and contacts in the mount sync with /i-compatible cameras and accessories
- Color Balance
- All Cooke miniS4/i prime lenses are color-balanced to a specification within parameters approved by Kodak
- Aperture
- All Cooke miniS4/i primes have a true T2.8 aperture and cover Super 35mm-sized formats
- Index Marks
- Every index mark is labeled. More detailed markings allow for more detailed focus control
- Focus Movement
- The Academy Award-winning cam-style focus movement, coupled with the added benefit of a large lens barrel diameter has allowed for an increased number of focus markings, particularly at close focus. Spherical aberration has been controlled throughout the range of focal lengths to eliminate compensation of changes in back focus with aperture. A four-point contact bearing provides a smooth, positive, backlash-free movement.
- Focus Scaling
- Large, clear numerals on both sides of the focus barrel benefit the focus puller when shooting under difficult lighting conditions
- Compatibility
- All Cooke miniS4/i primes have a common fixed front diameter of 87mm, with a focus drive gear of 121T x 0.8 mod and an iris drive gear of 119T x 0.8
- External Finish
- A scratch-resistant PTFE hard-anodized finish is provided on all Cooke lenses, providing a durable, hard-wearing surface to meet the most demanding environmental conditions
- Iris
- An eight-leaf linear module iris assembly is fitted into miniS4/i primes, with an aperture range of T2.8 to T22
- Weight/Size Ratio
- These lenses are designed for all shooting applications, including handheld and Steadicam, providing a comfortable balance ratio with the latest compact cameras
- Reliability & Service
- Cooke miniS4/i prime lenses are designed to meet a market requirement for fully reliable performance with a minimum of downtime
In the Box Cooke 135mm T2.8 miniS4/i Cine Lens 1 Year Parts & Labor Warranty User Manual PDF 5.3mbwwxvtetzvvyywf Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooke 135mm T2.8 miniS4 i Cine Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCooke 135mm T2.8 miniS4/i (ft) Specs | Focal Length | 135mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Image Circle | 33.5 mm | | Maximum T-Stop | T2.8 | | Minimum T-Stop | T22 | | Diagonal Angle of View | Super35: 14.16° | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Focus Rotation | 300° | | Iris Rotation | 96° | | Electronic Communication | Yes | | Dimensions (W x H) | 3.43 x 3.43" / 87.1 x 87.1 mm | | Length | 6.21" / 157.8 mm | | | | Package Weight | 5.8 lb | | Box Dimensions (LxWxH) | 14.3 x 8.4 x 8.3" |
