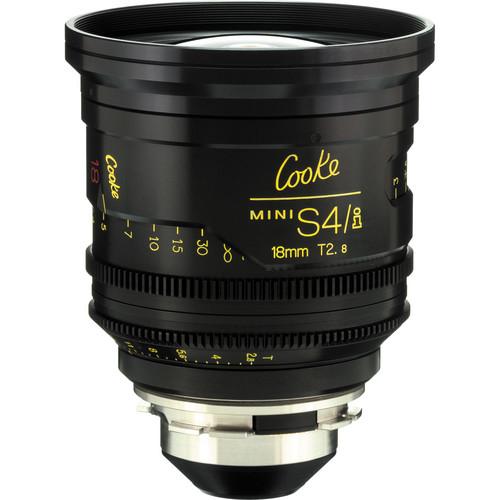

User Manual for Cooke 18mm T2.8 miniS4 i Cine Lens Click to enlarge the picture
Contents of the user manual for the Cooke 18mm T2.8 miniS4 i Cine
- Product category: Digital Cine Lenses Cooke
- Brand: Cooke
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cooke Digital Cine Lenses
|
User manual for the Cooke 18mm T2.8 miniS4 i Cine contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cooke product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cooke user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cooke product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More The 18mm T2.8 miniS4/i Cine Lens from Cooke features focus scales marked in feet and is one of a set of lightweight companions to Cooke's already established S4/i lenses. The miniS4i lenses feature an aperture range of T2.8 to T22, while maintaining the same world renowned Cooke image characteristics.This 18mm prime lens features a PL mount, which makes it compatible with most commonly used professional film and digital cinema cameras. Color-matched to intercut with other Cooke lenses, this lens combines classic, hand-fitted construction with a linear iris, cam-style focus, and /i Technology. If you are interested in a more vintage look, Cooke has optional un-coated lenses that you can use to replace the coated optics in your miniS4/1. - Optical Design
- The optics are designed to give maximum performance at full aperture with superior control of flare, distortion and spherical aberration.
- /i Electronics
- Contacts in the mount sync with /i compatible cameras and accessories, providing lens information on focusing distance, aperture and depth of field, hyperfocal distance, serial number, owner data, lens type and focal length in both meters and feet.
- Color Balance
- All Cooke miniS4/i prime lenses are color balanced to the Cook 5/i, S4/i, and Anamorphic/i lenses.
- Aperture
- All Cooke miniS4/i primes have a true T2.8 aperture and cover Super 35mm format.
- Index Marks
- Every index mark is labeled. More detailed markings allow for more detailed focus control.
- Focus Movement
- Academy Award-winning cam-style focus movement, coupled with the added benefit of a large lens barrel diameter, has allowed for an increased number of focus markings, particularly at close focus. Spherical aberration has been controlled throughout the range of focal lengths to eliminate compensation of changes in back focus with aperture. A four-point contact bearing provides a smooth, positive, backlash-free movement.
- Focus Scaling
- Large, clear numerals on both sides of the focus barrel enable your focus puller to work from either side of the lens without remarking or flipping the lens upside down.
- Compatibility
- All Cooke miniS4/i primes have a common fixed front diameter of 87mm, except for the 18mm which has a front diameter of 110mm. Each lens incorporates a focus drive gear of 121T x 0.8 mod and an iris drive gear of 119T x 0.8.
- External Finish
- A scratch resistant PTFE hard anodized finish is provided on all Cooke lenses, providing a durable, hard-wearing surface to meet the most demanding environmental conditions.
- Iris
- An eight-leaf linear module iris assembly is fitted into miniS4/i primes with an aperture range of T2.8 to T22.
- The lens features an 110 mm front diameter for attaching matte box, filter ring, and add-on lens accessories.
- You can purchase un-coated replacement optics for you lens, which will give your images a more vintage look. Please note that this is not a simple undertaking, but it is possible for authorized lens technicians to accomplish.
In the Box Cooke 18mm T2.8 miniS4/i Cine Lens (Feet) Front Lens Cap Rear Lens Cap Set of Four Shims Limited 1-Year Warranty User Manual PDF 5.3mbteasbcswvuuscb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooke 18mm T2.8 miniS4 i Cine Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCooke 18mm T2.8 miniS4/i (ft) Specs | Focal Length | 18mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Maximum T-Stop | T2.8 | | Minimum T-Stop | T22 | | Minimum Focus Distance from Image Plane | 10" / 25 cm | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 110 mm | | Focus Rotation | 300° | | Iris Rotation | 77° | | Electronic Communication | Yes | | Weight | 2.9 lb / 1.3 kg | | | | Package Weight | 4.65 lb | | Box Dimensions (LxWxH) | 9.4 x 6.9 x 6.8" |
