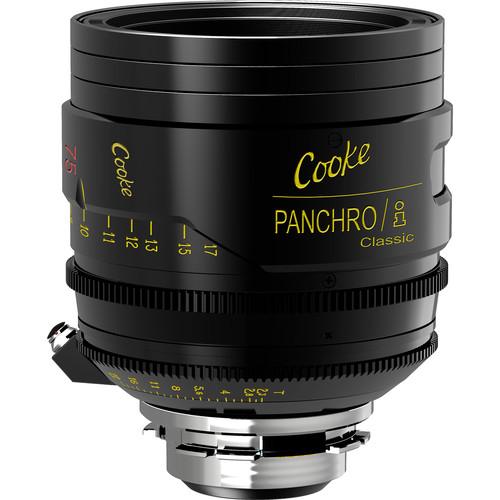

User Manual for Cooke 25mm T2.2 Panchro i Classic Prime Lens Click to enlarge the picture
Contents of the user manual for the Cooke 25mm T2.2 Panchro i Classic
- Product category: Digital Cine Lenses Cooke
- Brand: Cooke
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cooke Digital Cine Lenses
|
User manual for the Cooke 25mm T2.2 Panchro i Classic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cooke product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cooke user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cooke product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More The Cooke 25mm Panchro/i Classic Prime Lens combines the warm look of a vintage Cooke Speed Panchro with the convenience of the i/Technology lens data capture system. This modern redesign works with both digital cinema and film cameras, features focus scales marked in feet, and covers image formats up to Super 35. One of several focal lengths available, the 25mm prime incorporates a nine-blade iris for cinematic bokeh. For optimal performance, aberration, flare, and distortion-correction extends over the entire image area and throughout the 25mm's T2.2-22 aperture range. The Panchro/i Classic Primes are color-matched with Cooke's S4/i, 5/i, mini S4/i, and Anamorphic/i lenses.
Each Panchro/i Classic Prime lens sports both a hardened PL mount and a cable connection that use Cooke's /i Technology to transmit lens data including focal length, aperture, focus, and depth-of-field to compatible cameras. The 25mm Panchro/i Classic Prime Lens features a 4" minimum focus distance, a relatively light weight of 3.3 pounds, and a compact length of 3.6". This lens is constructed with 0.8-mod geared focus and iris rings for use with follow focus, zoom control, and wireless F/I/Z systems. A large lens barrel, an increased number of focus marks, and Cooke's cam-style focus movement enable precise focus pulls. Features - Combines a warm vintage Cooke Speed Panchro look with the convenience of the i/Technology lens data capture system
- Covers up to Super 35 sensors
- Wide T2.2 to T22 aperture range
- Color-matched with other Cooke primes
- Relatively lightweight, compact form factor with 110mm front diameter
- PL /i Technology mount will transfer lens data when used with compatible cameras
- Nine-bladed iris produces cinematic bokeh (out-of-focus highlights)
- 270° of focus barrel rotation; 90° of aperture scale rotation
- Close focus of 4", minimum marked object distance of 9"
/i Technology-Compatible Cameras and Partners - Including but not limited to:
Aaton, Andra, Angenieux, ARRI, Atomos, AVID
Birger Engineering, Blackmagic Design, Canon, Cinematography Electronics
CMotion, Codex, CW Sonderoptics, Element Technica, Fujinon, gbi, IB/E Optics
Mark Roberts Motion Control, OptiTek, Ovide, Panavision, Preston Cinema Systems
RED, Service Vision, Sony, The Foundry, The Pixel Farm, Transvideo, Vision Research In the Box Cooke 25mm T2.2 Panchro/i Classic Prime Lens (PL Mount, Feet) Front Lens Cap Rear Lens Cap Shim Kit Limited 1-Year Warranty Specification PDF 339.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooke 25mm T2.2 Panchro i Classic Prime Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCooke 25mm T2.2 Panchro/i Classic (ft) Specs | Focal Length | 25mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Maximum T-Stop | T22 | | Minimum T-Stop | T2.2 | | Diagonal Angle of View | Super35: 60° | | Minimum Focus Distance from Image Plane | 4.2" / 106.68 mm Minimum Focus Distance from Lens Front | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 110 mm | | Filter Thread | 105 mm | | Focus Scales | Imperial | | Focus Rotation | 270° | | Iris Rotation | 90° | | Electronic Communication | Yes | | Tripod Mounting Thread | None | | Length | 3.62" / 92 mm From front of lens to lens mount | | Weight | 3.3 lb / 1.5 kg |
