User Manual for Cooke 300mm T2.3 Anamorphic i Prime Lens Click to enlarge the picture
Contents of the user manual for the Cooke 300mm T2.3 Anamorphic i Prime
- Product category: Digital Cine Lenses Cooke
- Brand: Cooke
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cooke Digital Cine Lenses
 |
User manual for the Cooke 300mm T2.3 Anamorphic i Prime contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cooke product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cooke user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cooke product will considerably shorten its lifespan!
|

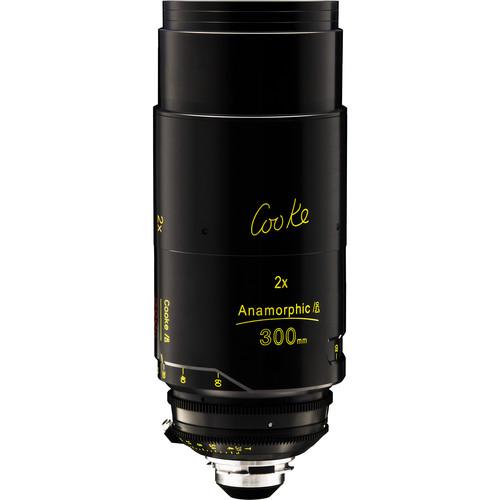

Product description Cinema Lens Care and Maintenance Read More This 300mm Anamorphic/i Prime Lens features the classic, natural yet sharp "Cooke look" in an anamorphic format. One of Cooke's extensive Anamorphic/i series, the 300mm prime incorporates an 11-blade iris for cinematic-looking, 2:1 oval bokeh. Designed for use with both digital cinema and film cameras, the Cooke Anamorphic/i primes provide a 2x squeeze, and cover image formats up to Super 35. For maximum optical performance, aberration, flare, and distortion correction extends over the entire image area, and throughout the 300mm's T3.5-22 aperture range. The Anamorphic/i primes are color-matched with Cooke's S4/i, 5/i, and mini S4/i series of prime lenses.Each Anamorphic/i prime sports both a hardened PL mount and a cable connection that use Cooke's /i Technology to transmit lens data to compatible cameras. Lens setting data including focal length, aperture, focus, and depth-of-field, are provided in both feet and metric measurements.The 300mm Anamorphic/i Prime Lens features a 8' 6" minimum focus distance, focus marks in feet and meters, a relatively light weight of 20.5 pounds, and a compact length of 14.9". The lens is constructed with 0.8-mod geared focus and iris rings for use with follow focus, zoom control, and wireless F/I/Z systems. A large lens barrel, an increased number of focus marks, and Cooke's cam-style focus movement enable precise focus pulls. Focus marks are clearly visible and are engraved on the lens barrel in both feet and meters. Features - Classic, natural yet sharp "Cooke look" with a 2x1 anamorphic squeeze
- Covers up to Super-35 sensors
- Wide T3.5 to T22 aperture range
- Color-matched with other Cooke primes
- Relatively lightweight, compact form factor with 110mm front diameter
- PL /i Technology mount will transfer lens data when used with compatible cameras
- 11-blade iris produces 2:1 oval bokeh (out-of-focus highlights)
- 300° of focus barrel rotation; 90° of aperture scale rotation
/i Technology-Compatible Cameras & Partners - Including but not limited to:
Aaton, Andra, Angenieux, ARRI, Atomos, AVID
Birger Engineering, Blackmagic Design, Canon, Cinematography Electronics
CMotion, Codex, CW Sonderoptics, Element Technica, Fujinon, gbi, IB/E Optics
Mark Roberts Motion Control, OptiTek, Ovide, Panavision, Preston Cinema Systems
RED, Service Vision, Sony, The Foundry, The Pixel Farm, Transvideo, Vision Research In the Box Cooke 300mm T2.3 Anamorphic/i Prime Lens (PL Mount) Limited 1-Year Warranty Specification PDF 339.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooke 300mm T2.3 Anamorphic i Prime Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCooke 300mm T2.3 Anamorphic/i Specs | Focal Length | 300mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Maximum T-Stop | T22 | | Minimum T-Stop | T3.5 | | Horizontal Angle of View | Super35: 8.5° | | Minimum Focus Distance from Image Plane | 101.6" / 2.58 m Minimum Focus Distance from Lens Front | | Iris Blades | 11 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 110 mm | | Filter Thread | None | | Focus Scales | Metric, Imperial | | Focus Rotation | 300° | | Iris Rotation | 90° | | Electronic Communication | Yes | | Horizontal Squeeze (Anamorphic) | 2x | | Tripod Mounting Thread | None | | Length | 14.88" / 378 mm From front of lens to lens mount | | Weight | 20.5 lb / 9.3 kg |
