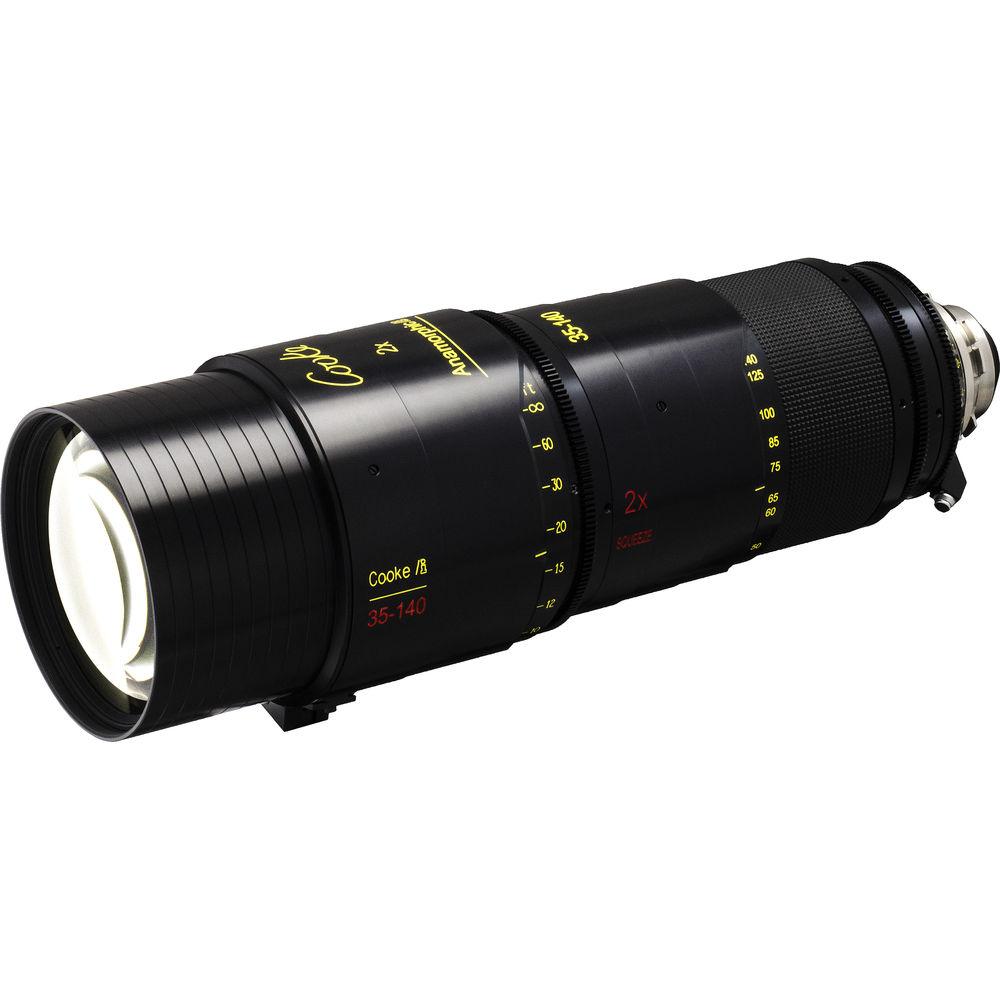

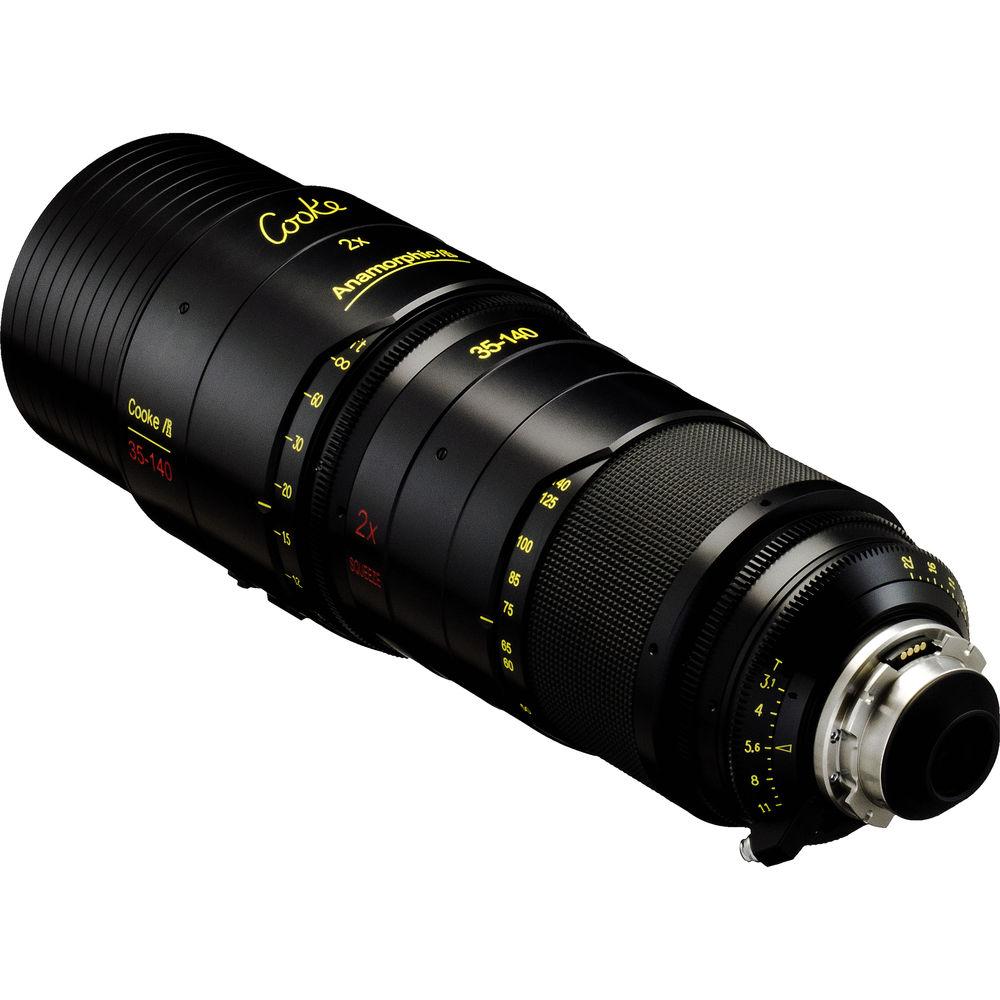

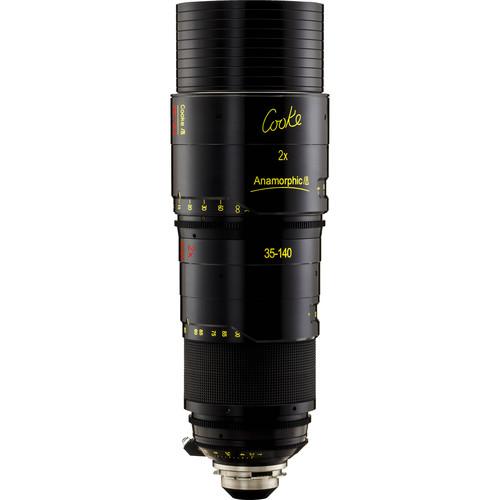

Product description Cinema Lens Care and Maintenance Read More cfyrufdssezyfufu The 35-140mm Anamorphic/i Zoom Lens is a 2x anamorphic squeeze zoom featuring the classic, natural yet sharp "Cooke look" in an anamorphic format. This wide to telephoto 4x zoom lens incorporates an 11-blade iris for cinematic-looking, 2:1 oval bokeh. Designed for use with both digital cinema and film cameras, the 35-140mm Anamorphic/i zoom covers image formats up to Super 35.For maximum optical performance, the zoom is well-balanced for astigmatism, with aberration, flare, and distortion correction extending over the entire image area, and throughout the T3.1-22 aperture range. This zoom is color-matched with Cooke's Anamorphic/i, 5/i, S4/i, and miniS4/i prime lenses, and with the Cooke CXX 15-40mm T2 S4/i zoom lens. The zoom's hardened PL mount and a cable connection use Cooke's /i Technology to transmit lens data to compatible cameras. Lens setting data including zoom position, aperture, focus, and depth of field are provided in both feet and metric measurements.The 35-140mm Anamorphic/i zoom features a 28" minimum focus distance, focus marks in both feet and meters, a relatively light weight of 22.6 pounds, and a compact length of 17". The lens is constructed with 0.8-mod geared focus and iris rings for use with follow focus, zoom control, and wireless F/I/Z systems. A large lens barrel, an increased number of focus marks, and Cooke's cam-style focus movement enable precise focus pulls. Focus marks are clearly visible and are engraved on the lens barrel in both feet and meters. - Features
-
- Classic, natural yet sharp "Cooke look" with a 2x1 anamorphic squeeze
- Covers up to Super-35 sensors
- 35-140mm lens with a 4x zoom ratio
- Constant T3.1 aperture throughout the entire zoom range
- Color-matched with Cooke prime lenses and the Cooke CXX 15-40mm T2 S4/i zoom lens
- PL /i Technology mount transfers lens data to compatible cameras
- Precise, smooth focusing with 300° of barrel rotation
- 11-blade iris produces 2:1 oval bokeh (out-of-focus highlights)
- 136mm front diameter
In the Box Cooke 35-140mm Anamorphic/i Zoom Lens Limited 1-Year Warranty Specification PDF 339.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooke 35-140mm Anamorphic i Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCooke 35-140mm T3.1 Anamorphic/i Specs | Focal Length | 35 to 140mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Maximum T-Stop | T3.1 | | Minimum T-Stop | T22 | | Horizontal Angle of View | Super35: 62.4 to 17.5° | | Minimum Focus Distance from Image Plane | 47.24" / 1200 mm 28" / 720 mm from lens front | | Iris Blades | 11 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch | | Front Diameter | 136 mm | | Filter Thread | None | | Focus Scales | Metric, Imperial | | Focus Rotation | 300° | | Iris Rotation | 90° | | Zoom Ratio | 4x | | Electronic Communication | Yes | | Horizontal Squeeze (Anamorphic) | 2x | | Length | 16.93" / 430 mm | | Weight | 22.7 lb / 10.3 kg |
