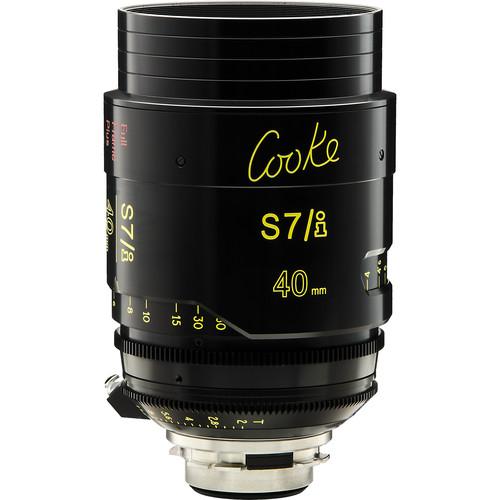

User Manual for Cooke 40mm T2.0 S7 i Full Frame Plus Prime Lens Click to enlarge the picture
Contents of the user manual for the Cooke 40mm T2.0 S7 i Full
- Product category: Digital Cine Lenses Cooke
- Brand: Cooke
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cooke Digital Cine Lenses
|
User manual for the Cooke 40mm T2.0 S7 i Full contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cooke product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cooke user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cooke product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More The Cooke 40mm T2.0 S7/i Full Frame Plus Prime Lens is designed to cover full frame cinema camera sensors up to at least the full sensor area of the RED Weapon 8K (46.31mm image circle). It is color-matched to other Cooke lenses to keep that well-known Cooke look, and has focus markings on both sides of the lens. A cam-type focus mechanism and a large lens barrel diameter with 270° of rotation from end-stop to end-stop allows for precision focus pulls, especially at close focus.
The lens features a PL mount, which makes it compatible with most commonly used professional motion picture film and electronic cameras, and has an aperture range of T2.0 to T22. The PL mount incorporates i/Technology contacts that feed lens information metadata to a compatible camera, including focus distance, aperture and depth-of-field. - Comes with the Cooke hardened PL mount with /i Technology contact for lens metadata capture
- Optics are designed to give maximum performance at full aperture with control of flare, distortion, and spherical aberrations
- Well-balanced for astigmatism and correct for lateral and longitudinal aberrations over the entire image area
- Electronics are accessible via cable connector near the lens mount and contacts in the mount sync with /i compatible cameras and accessories
- Color-balanced, color-matched, and compatible with Cooke S4/i, miniS4/i, Anamorphic/i and PANCHRO/i classic lenses
- Designed for all shooting applications, including handheld and Steadicam, providing comfortable balance ratio with compact cameras
- Offers an aperture range of T2.0 to T22
- Covers 35mm / Super35mm formats, full frame, and VistaVision
- Every index mark is labeled for detailed focus control
- Cam-style focus mechanism for smooth focus adjustments
- Large, clear numerals on both sides of the focus barrel allow the focus puller to work from either side of the lens
- Fixed front diameter of 110mm, with industry standard 0.8 MOD focus and iris gears.
- Scratch-resistant PTFE hard anodized finish, providing a durable, hard-wearing surface for extreme environmental conditions
- Features a nine-leaf linear module iris assembly
- Modular construction increases ease of maintenance and serviceability
In the Box Cooke 40mm T2.0 S7/i Full Frame Plus Prime Lens (PL Mount) Limited 1-Year Warranty Guides & Manuals cyutbeszry Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooke 40mm T2.0 S7 i Full Frame Plus Prime Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCooke 40mmT2.0 S7/i Full Frame Plus Specs | Mount | PL | | Focal Length | 40mm | | Aperture | T2.0 to T22 | | Maximum Format Size | 1.8" (46.31 mm) diameter | | Minimum Object Distance (M.O.D.) | 18" (450 mm) | | Close Focus | From Lens Front: 8" (209 mm) | | Scales | Iris:
2 opposing linear T scales (whole and third stops marked)
Focus:
2 opposing focus scales (metric and footage)
Scales marked from infinity to M.O.D. | | Drive Gear | Iris:
134 teeth 0.8 MOD
4 mm wide x 81 mm from the image plane
Focus:
140 teeth 0.8 MOD
6 mm wide x 103 mm from the image plane | | Rotation | Angular Rotation between End Stops:
Focus Drive Gear: 270°
Iris Drive Gear: 90° | | Angle of View | For Super35mm Format: 41° (maximum diagonal)
For 24 x 36mm Format: 57° (maximum diagonal) | | Length | From Front of Lens to Lens Mount: 7.44" (189 mm) | | Front Diameter | 4.33" (110 mm) | | Weight | 7.72 lb (3.5 kg) |
