Product description Cinema Lens Care and Maintenance Read More This is a set of six lenses that cover the entire range of Cooke miniS4/i lenses. The set includes the 18, 25, 32, 50, 75, and 100mm lenses. Each lens in the set features a clickless aperture with a T-stop range of 2.8 to 22 and cover Super35-sized sensors. The lenses feature Cam focus as opposed to Helicoid, which enables the focus mechanism to stay play and backlash free and require less service with normal use. Featuring a PL mount, these lenses are designed as true cinema lenses with geared focus and iris, as well as manual focus.
The lenses are color matched to a factory standard and share similar gear positions making for fast lens changes. All the lenses except for the 18mm feature an 87mm front diameter, again for fast lens changes, with the 18mm featuring a 110mm front diameter. Cooke's /i technology system shares lens information with your camera, providing the camera is /i compatible. This set of lenses is marked in meters. - 18mm T2.8 miniS4/i Cine Lens (Meters) The 18mm T2.8 miniS4/i Cine Lens from Cooke features focus scales marked in meters and is one of a set of lightweight companions to Cooke's already established S4/i lenses. The miniS4i lenses feature an aperture range of T2.8 to T22, while maintaining the same world renowned Cooke image characteristics.This 18mm prime lens features a PL mount, which makes it compatible with most commonly used professional film and digital cinema cameras. Color-matched to intercut with other Cooke lenses, this lens combines classic, hand-fitted construction with a linear iris, cam-style focus, and /i Technology. If you are interested in a more vintage look, Cooke has optional un-coated lenses that you can use to replace the coated optics in your miniS4/1.
- Optical Design
- The optics are designed to give maximum performance at full aperture with superior control of flare, distortion and spherical aberration.
- /i Electronics
- Contacts in the mount sync with /i compatible cameras and accessories, providing lens information on focusing distance, aperture and depth of field, hyperfocal distance, serial number, owner data, lens type and focal length in both meters and feet.
- Color Balance
- All Cooke miniS4/i prime lenses are color balanced to the Cook 5/i, S4/i, and Anamorphic/i lenses.
- Aperture
- All Cooke miniS4/i primes have a true T2.8 aperture and cover Super 35mm format.
- Index Marks
- Every index mark is labeled. More detailed markings allow for more detailed focus control.
- Focus Movement
- Academy Award-winning cam-style focus movement, coupled with the added benefit of a large lens barrel diameter, has allowed for an increased number of focus markings, particularly at close focus. Spherical aberration has been controlled throughout the range of focal lengths to eliminate compensation of changes in back focus with aperture. A four-point contact bearing provides a smooth, positive, backlash-free movement.
- Focus Scaling
- Large, clear numerals on both sides of the focus barrel enable your focus puller to work from either side of the lens without remarking or flipping the lens upside down.
- Compatibility
- All Cooke miniS4/i primes have a common fixed front diameter of 87mm, except for the 18mm which has a front diameter of 110mm. Each lens incorporates a focus drive gear of 121T x 0.8 mod and an iris drive gear of 119T x 0.8.
- External Finish
- A scratch resistant PTFE hard anodized finish is provided on all Cooke lenses, providing a durable, hard-wearing surface to meet the most demanding environmental conditions.
- Iris
- An eight-leaf linear module iris assembly is fitted into miniS4/i primes with an aperture range of T2.8 to T22.
- The lens features an 110 mm front diameter for attaching matte box, filter ring, and add-on lens accessories.
- You can purchase un-coated replacement optics for you lens, which will give your images a more vintage look. Please note that this is not a simple undertaking, but it is possible for authorized lens technicians to accomplish.

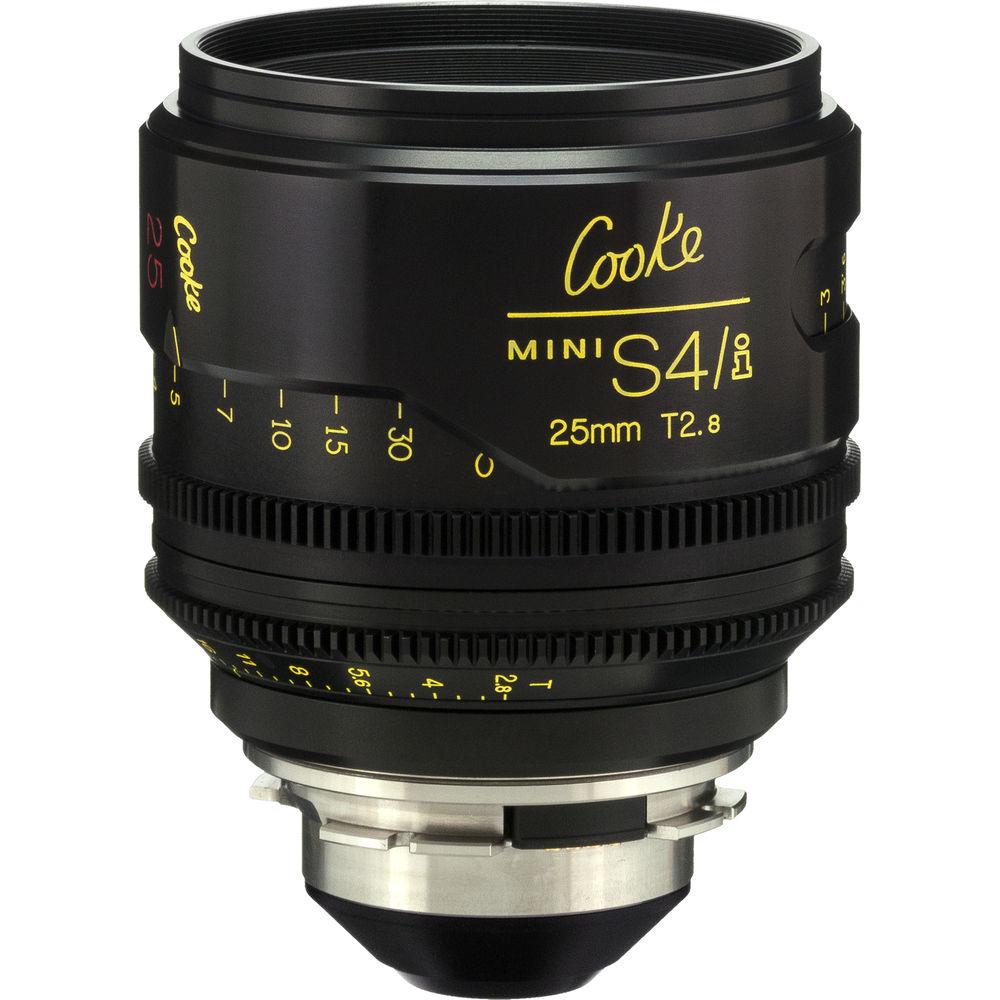

- 25mm T2.8 miniS4/i Cine Lens (Meters) The 25mm T2.8 miniS4/i Cine Lens from Cooke features focus scales marked in meters and is one of a set of lightweight companions to Cooke's already established S4/i lenses. The miniS4i lenses feature an aperture range of T2.8 to T22, while maintaining the same world renowned Cooke image characteristics.This 25mm prime lens features a PL mount, which makes it compatible with most commonly used professional film and digital cinema cameras. Color-matched to intercut with other Cooke lenses, this lens combines classic, hand-fitted construction with a linear iris, cam-style focus, and /i Technology. If you are interested in a more vintage look, Cooke has optional un-coated lenses that you can use to replace the coated optics in your miniS4/1.
- Optical Design
- The optics are designed to give maximum performance at full aperture with superior control of flare, distortion and spherical aberration.
- /i Electronics
- Contacts in the mount sync with /i compatible cameras and accessories, providing lens information on focusing distance, aperture and depth of field, hyperfocal distance, serial number, owner data, lens type and focal length in both meters and feet.
- Color Balance
- All Cooke miniS4/i prime lenses are color balanced to the Cook 5/i, S4/i, and Anamorphic/i lenses.
- Aperture
- All Cooke miniS4/i primes have a true T2.8 aperture and cover Super 35mm format.
- Index Marks
- Every index mark is labeled. More detailed markings allow for more detailed focus control.
- Focus Movement
- Academy Award-winning cam-style focus movement, coupled with the added benefit of a large lens barrel diameter, has allowed for an increased number of focus markings, particularly at close focus. Spherical aberration has been controlled throughout the range of focal lengths to eliminate compensation of changes in back focus with aperture. A four-point contact bearing provides a smooth, positive, backlash-free movement.
- Focus Scaling
- Large, clear numerals on both sides of the focus barrel enable your focus puller to work from either side of the lens without remarking or flipping the lens upside down.
- Compatibility
- All Cooke miniS4/i primes have a common fixed front diameter of 87mm, except for the 18mm which has a front diameter of 110mm. Each lens incorporates a focus drive gear of 121T x 0.8 mod and an iris drive gear of 119T x 0.8.
- External Finish
- A scratch resistant PTFE hard anodized finish is provided on all Cooke lenses, providing a durable, hard-wearing surface to meet the most demanding environmental conditions.
- Iris
- An eight-leaf linear module iris assembly is fitted into miniS4/i primes with an aperture range of T2.8 to T22.
- The lens features an 87 mm front diameter for attaching matte box, filter ring, and add-on lens accessories.
- You can purchase un-coated replacement optics for you lens, which will give your images a more vintage look. Please note that this is not a simple undertaking, but it is possible for authorized lens technicians to accomplish.
- 32mm T2.8 miniS4/i Cine Lens (Meters) The 32mm T2.8 miniS4/i Cine Lens from Cooke features focus scales marked in meters and is one of a set of lightweight companions to Cooke's already established S4/i lenses. The miniS4i lenses feature an aperture range of T2.8 to T22, while maintaining the same world renowned Cooke image characteristics.This 32mm prime lens features a PL mount, which makes it compatible with most commonly used professional film and digital cinema cameras. Color-matched to intercut with other Cooke lenses, this lens combines classic, hand-fitted construction with a linear iris, cam-style focus, and /i Technology. If you are interested in a more vintage look, Cooke has optional un-coated lenses that you can use to replace the coated optics in your miniS4/1.
- Optical Design
- The optics are designed to give maximum performance at full aperture with superior control of flare, distortion and spherical aberration.
- /i Electronics
- Contacts in the mount sync with /i compatible cameras and accessories, providing lens information on focusing distance, aperture and depth of field, hyperfocal distance, serial number, owner data, lens type and focal length in both meters and feet.
- Color Balance
- All Cooke miniS4/i prime lenses are color balanced to the Cook 5/i, S4/i, and Anamorphic/i lenses.
- Aperture
- All Cooke miniS4/i primes have a true T2.8 aperture and cover Super 35mm format.
- Index Marks
- Every index mark is labeled. More detailed markings allow for more detailed focus control.
- Focus Movement
- Academy Award-winning cam-style focus movement, coupled with the added benefit of a large lens barrel diameter, has allowed for an increased number of focus markings, particularly at close focus. Spherical aberration has been controlled throughout the range of focal lengths to eliminate compensation of changes in back focus with aperture. A four-point contact bearing provides a smooth, positive, backlash-free movement.
- Focus Scaling
- Large, clear numerals on both sides of the focus barrel enable your focus puller to work from either side of the lens without remarking or flipping the lens upside down.
- Compatibility
- All Cooke miniS4/i primes have a common fixed front diameter of 87mm, except for the 18mm which has a front diameter of 110mm. Each lens incorporates a focus drive gear of 121T x 0.8 mod and an iris drive gear of 119T x 0.8.
- External Finish
- A scratch resistant PTFE hard anodized finish is provided on all Cooke lenses, providing a durable, hard-wearing surface to meet the most demanding environmental conditions.
- Iris
- An eight-leaf linear module iris assembly is fitted into miniS4/i primes with an aperture range of T2.8 to T22.
- The lens features an 87 mm front diameter for attaching matte box, filter ring, and add-on lens accessories.
- You can purchase un-coated replacement optics for you lens, which will give your images a more vintage look. Please note that this is not a simple undertaking, but it is possible for authorized lens technicians to accomplish.

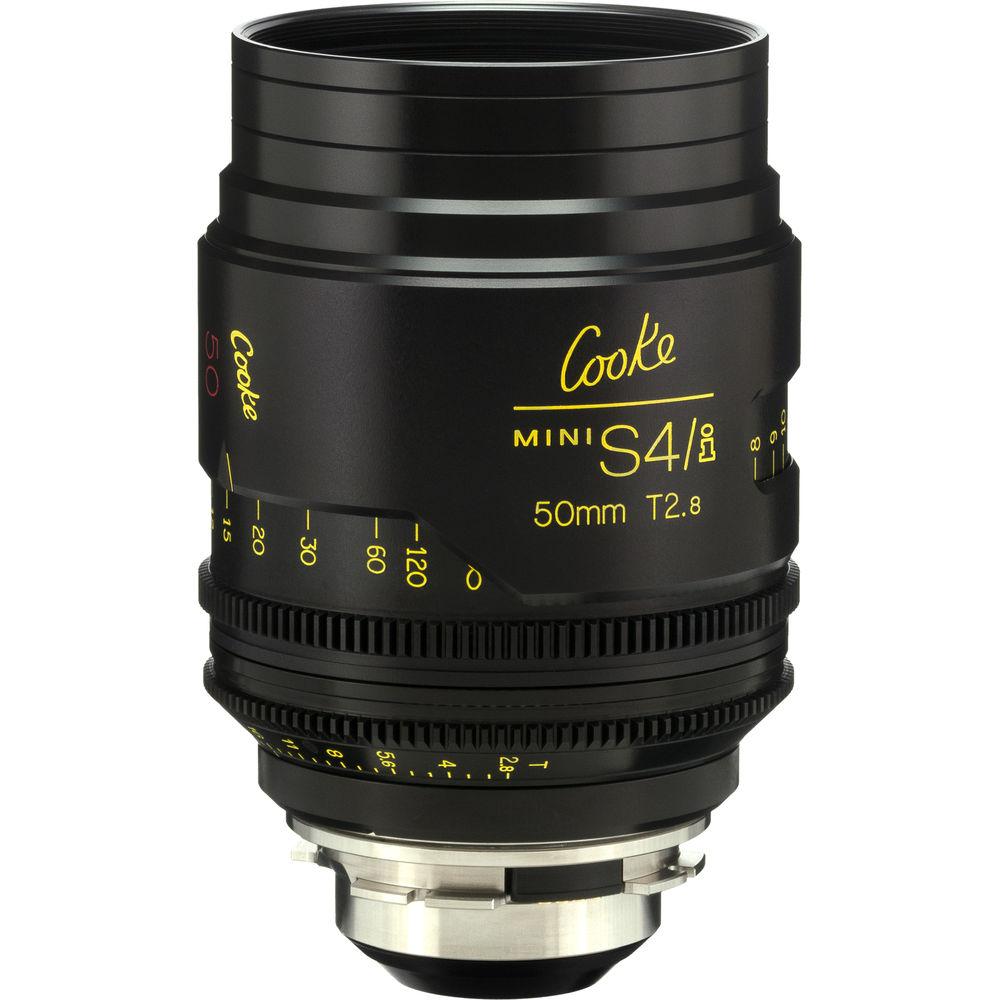

- 50mm T2.8 miniS4/i Cine Lens (Meters) The 50mm T2.8 miniS4/i Cine Lens from Cooke features focus scales marked in meters and is one of a set of lightweight companions to Cooke's already established S4/i lenses. The miniS4i lenses feature an aperture range of T2.8 to T22, while maintaining the same world renowned Cooke image characteristics.This 50mm prime lens features a PL mount, which makes it compatible with most commonly used professional film and digital cinema cameras. Color-matched to intercut with other Cooke lenses, this lens combines classic, hand-fitted construction with a linear iris, cam-style focus, and /i Technology. If you are interested in a more vintage look, Cooke has optional un-coated lenses that you can use to replace the coated optics in your miniS4/1.
- Optical Design
- The optics are designed to give maximum performance at full aperture with superior control of flare, distortion and spherical aberration.
- /i Electronics
- Contacts in the mount sync with /i compatible cameras and accessories, providing lens information on focusing distance, aperture and depth of field, hyperfocal distance, serial number, owner data, lens type and focal length in both meters and feet.
- Color Balance
- All Cooke miniS4/i prime lenses are color balanced to the Cook 5/i, S4/i, and Anamorphic/i lenses.
- Aperture
- All Cooke miniS4/i primes have a true T2.8 aperture and cover Super 35mm format.
- Index Marks
- Every index mark is labeled. More detailed markings allow for more detailed focus control.
- Focus Movement
- Academy Award-winning cam-style focus movement, coupled with the added benefit of a large lens barrel diameter, has allowed for an increased number of focus markings, particularly at close focus. Spherical aberration has been controlled throughout the range of focal lengths to eliminate compensation of changes in back focus with aperture. A four-point contact bearing provides a smooth, positive, backlash-free movement.
- Focus Scaling
- Large, clear numerals on both sides of the focus barrel enable your focus puller to work from either side of the lens without remarking or flipping the lens upside down.
- Compatibility
- All Cooke miniS4/i primes have a common fixed front diameter of 87mm, except for the 18mm which has a front diameter of 110mm. Each lens incorporates a focus drive gear of 121T x 0.8 mod and an iris drive gear of 119T x 0.8.
- External Finish
- A scratch resistant PTFE hard anodized finish is provided on all Cooke lenses, providing a durable, hard-wearing surface to meet the most demanding environmental conditions.
- Iris
- An eight-leaf linear module iris assembly is fitted into miniS4/i primes with an aperture range of T2.8 to T22.
- The lens features an 87 mm front diameter for attaching matte box, filter ring, and add-on lens accessories.
- You can purchase un-coated replacement optics for you lens, which will give your images a more vintage look. Please note that this is not a simple undertaking, but it is possible for authorized lens technicians to accomplish.

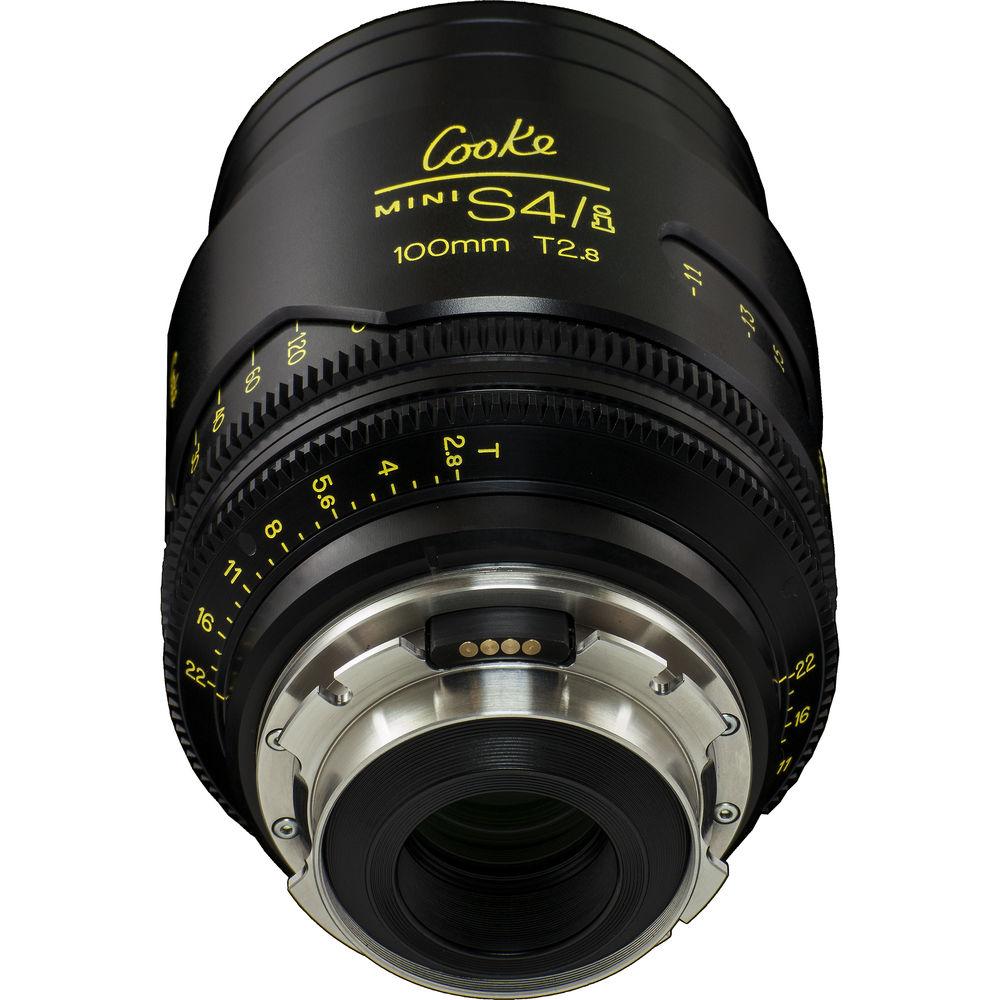

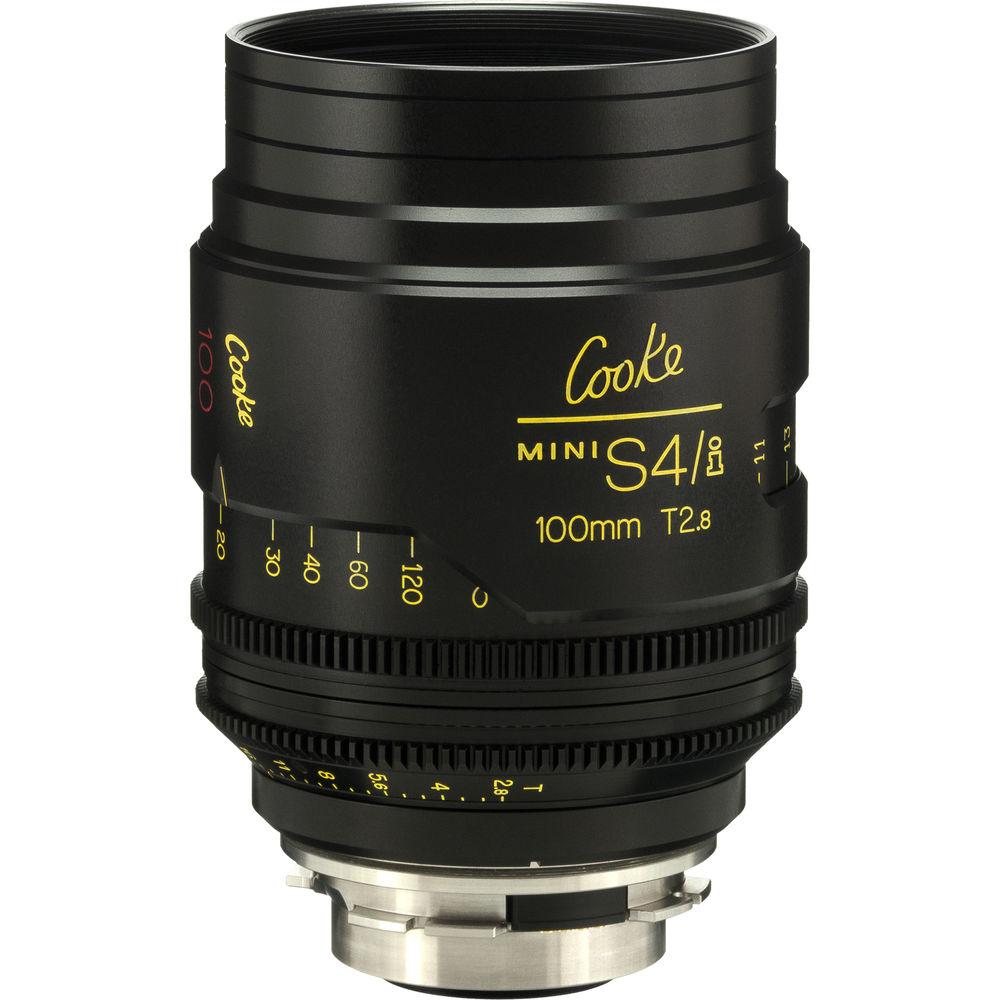

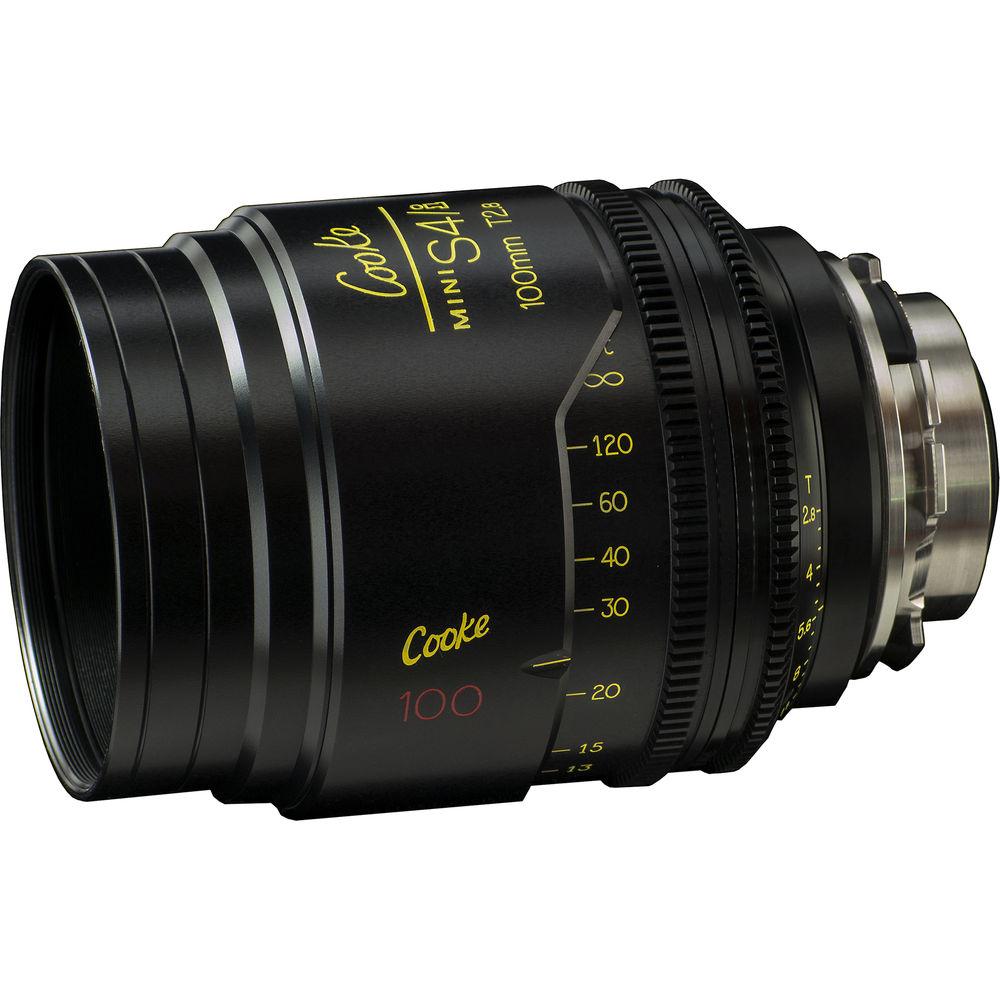

- 100mm T2.8 miniS4/i Cine Lens (Meters) The 100mm T2.8 miniS4/i Cine Lens from Cooke features focus scales marked in meters and is one of a set of lightweight companions to Cooke's already established S4/i lenses. The miniS4i lenses feature an aperture range of T2.8 to T22, while maintaining the same world renowned Cooke image characteristics.This 100mm prime lens features a PL mount, which makes it compatible with most commonly used professional film and digital cinema cameras. Color-matched to intercut with other Cooke lenses, this lens combines classic, hand-fitted construction with a linear iris, cam-style focus, and /i Technology. If you are interested in a more vintage look, Cooke has optional un-coated lenses that you can use to replace the coated optics in your miniS4/1.
- Optical Design
- The optics are designed to give maximum performance at full aperture with superior control of flare, distortion and spherical aberration.
- /i Electronics
- Contacts in the mount sync with /i compatible cameras and accessories, providing lens information on focusing distance, aperture and depth of field, hyperfocal distance, serial number, owner data, lens type and focal length in both meters and feet.
- Color Balance
- All Cooke miniS4/i prime lenses are color balanced to the Cook 5/i, S4/i, and Anamorphic/i lenses.
- Aperture
- All Cooke miniS4/i primes have a true T2.8 aperture and cover Super 35mm format.
- Index Marks
- Every index mark is labeled. More detailed markings allow for more detailed focus control.
- Focus Movement
- Academy Award-winning cam-style focus movement, coupled with the added benefit of a large lens barrel diameter, has allowed for an increased number of focus markings, particularly at close focus. Spherical aberration has been controlled throughout the range of focal lengths to eliminate compensation of changes in back focus with aperture. A four-point contact bearing provides a smooth, positive, backlash-free movement.
- Focus Scaling
- Large, clear numerals on both sides of the focus barrel enable your focus puller to work from either side of the lens without remarking or flipping the lens upside down.
- Compatibility
- All Cooke miniS4/i primes have a common fixed front diameter of 87mm, except for the 18mm which has a front diameter of 110mm. Each lens incorporates a focus drive gear of 121T x 0.8 mod and an iris drive gear of 119T x 0.8.
- External Finish
- A scratch resistant PTFE hard anodized finish is provided on all Cooke lenses, providing a durable, hard-wearing surface to meet the most demanding environmental conditions.
- Iris
- An eight-leaf linear module iris assembly is fitted into miniS4/i primes with an aperture range of T2.8 to T22.
- The lens features an 87 mm front diameter for attaching matte box, filter ring, and add-on lens accessories.
- You can purchase un-coated replacement optics for you lens, which will give your images a more vintage look. Please note that this is not a simple undertaking, but it is possible for authorized lens technicians to accomplish.

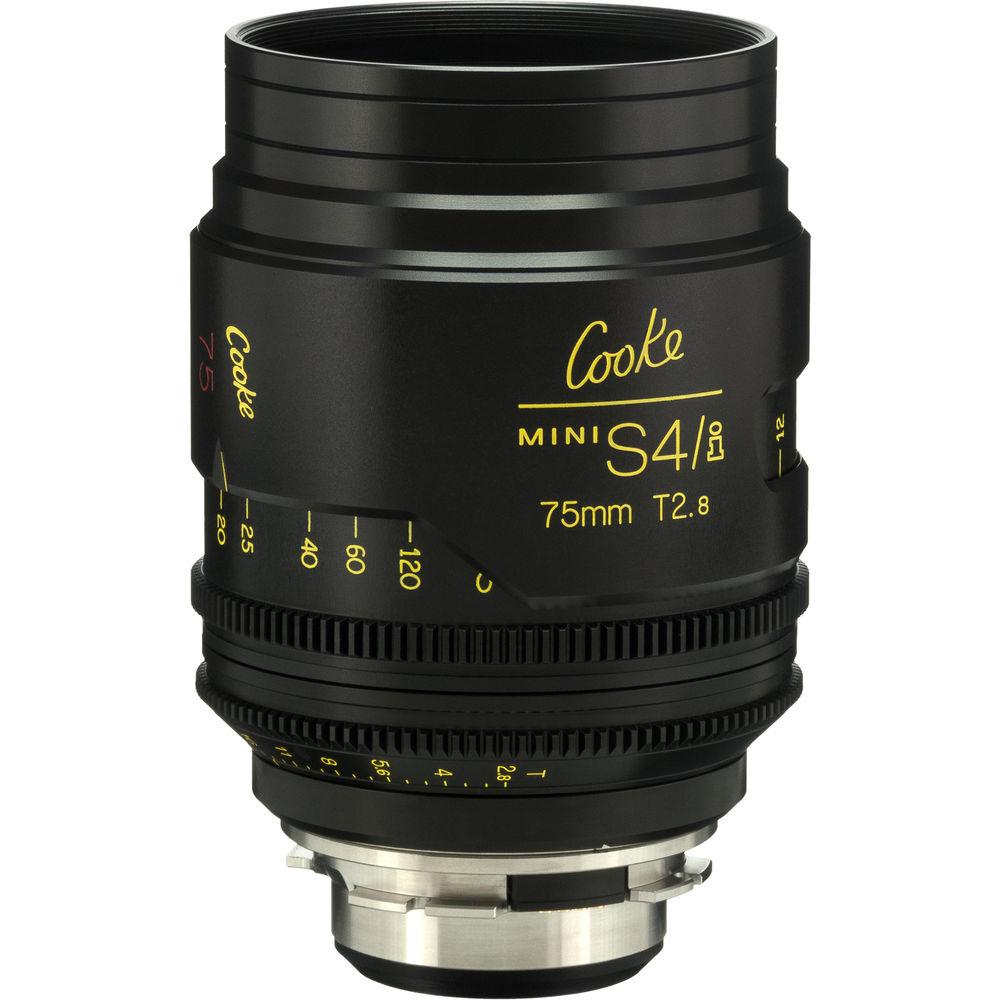

- 75mm T2.8 MINIS4/I CINE COATD LNS-MTRC

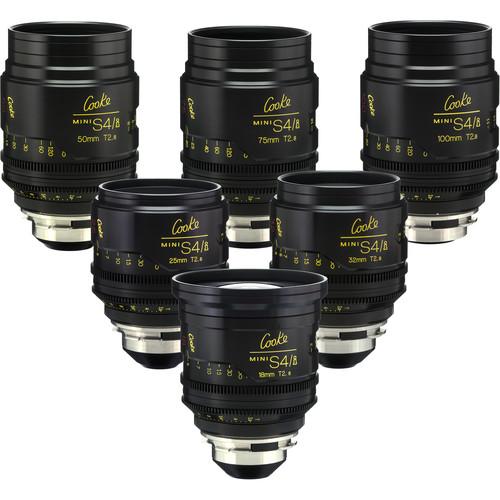

In the Box Bundle Items 18mm T2.8 miniS4/i Cine Lens (Meters) tzerrtebvxvywrfsys 25mm T2.8 miniS4/i Cine Lens (Meters) 32mm T2.8 miniS4/i Cine Lens (Meters) 50mm T2.8 miniS4/i Cine Lens (Meters) tzerrtebvxvywrfsys 75mm T2.8 MINIS4/I CINE COATD LNS-MTRC tzerrtebvxvywrfsys 100mm T2.8 miniS4/i Cine Lens (Meters) Specification PDF 339.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cooke miniS4 i Cine Lens Set of Six Lenses, 18 to 100mm in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

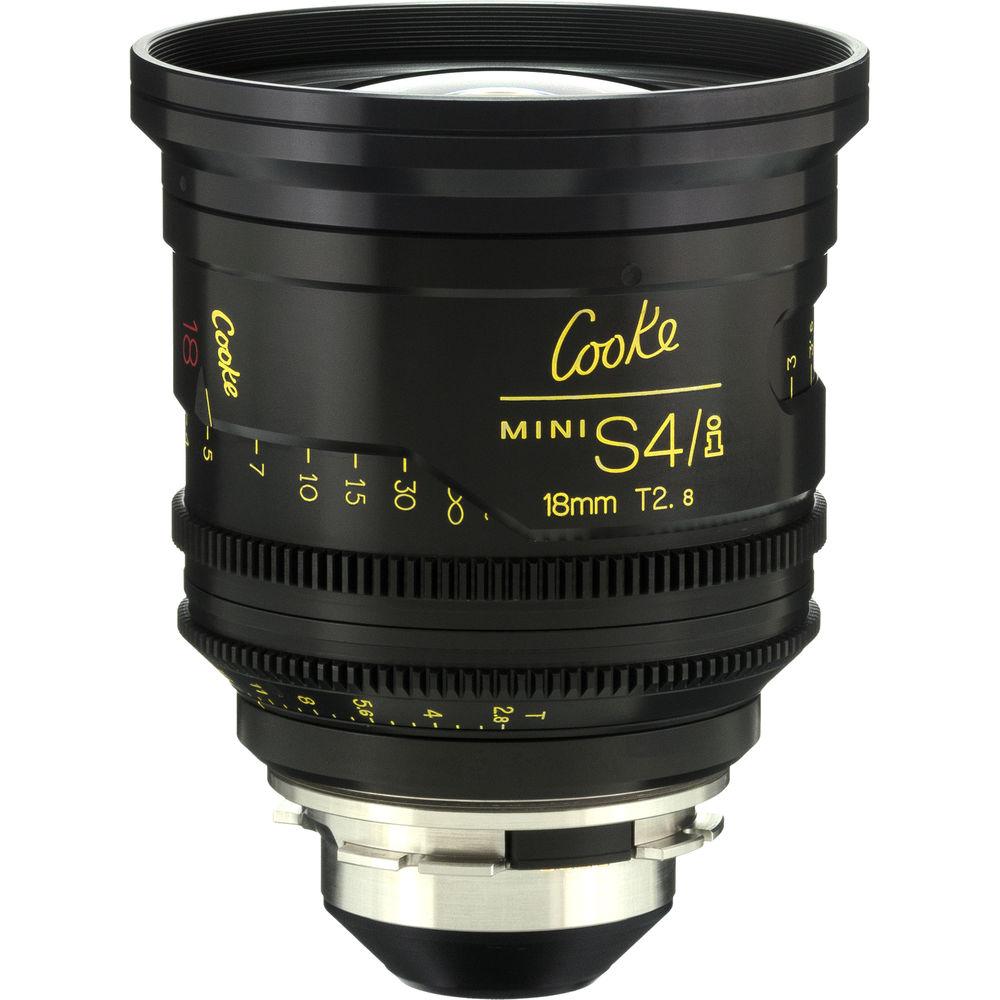

Technical parameters - 18mm T2.8 miniS4/i Cine Lens (Meters)
| Focal Length | 18mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Maximum T-Stop | T2.8 | | Minimum T-Stop | T22 | | Minimum Focus Distance from Image Plane | 10" / 25 cm | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 110 mm | | Focus Rotation | 300° | | Iris Rotation | 77° | | Electronic Communication | Yes | | Weight | 2.9 lb / 1.3 kg | | | | Box Dimensions (LxWxH) | 9.6 x 6.9 x 6.9" | - 25mm T2.8 miniS4/i Cine Lens (Meters)
| Focal Length | 25mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Maximum T-Stop | T2.8 | | Minimum T-Stop | T22 | | Minimum Focus Distance from Image Plane | 10" / 25 cm | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 87 mm | | Focus Rotation | 300° | | Iris Rotation | 77° | | Electronic Communication | Yes | | Weight | 3.1 lb / 1.4 kg | | | | Box Dimensions (LxWxH) | 13.0 x 7.8 x 6.9" | - 32mm T2.8 miniS4/i Cine Lens (Meters)
| Focal Length | 32mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Maximum T-Stop | T2.8 | | Minimum T-Stop | T22 | | Minimum Focus Distance from Image Plane | 12" / 31 cm | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 87 mm | | Focus Rotation | 300° | | Iris Rotation | 77° | | Electronic Communication | Yes | | Weight | 3.5 lb / 1.6 kg | | | | Box Dimensions (LxWxH) | 9.4 x 7.0 x 6.8" | - 50mm T2.8 miniS4/i Cine Lens (Meters)
| Focal Length | 50mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Maximum T-Stop | T2.8 | | Minimum T-Stop | T22 | | Minimum Focus Distance from Image Plane | 20" / 51 cm | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 87 mm | | Focus Rotation | 300° | | Iris Rotation | 77° | | Electronic Communication | Yes | | Weight | 3.3 lb / 1.5 kg | | | | Box Dimensions (LxWxH) | 9.5 x 7.0 x 6.9" | - 100mm T2.8 miniS4/i Cine Lens (Meters)
| Focal Length | 100mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Maximum T-Stop | T2.8 | | Minimum T-Stop | T22 | | Minimum Focus Distance from Image Plane | 36" / 90 cm | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 87 mm | | Focus Rotation | 300° | | Iris Rotation | 77° | | Electronic Communication | Yes | | Weight | 3.5 lb / 1.6 kg | - 75mm T2.8 MINIS4/I CINE COATD LNS-MTRC
