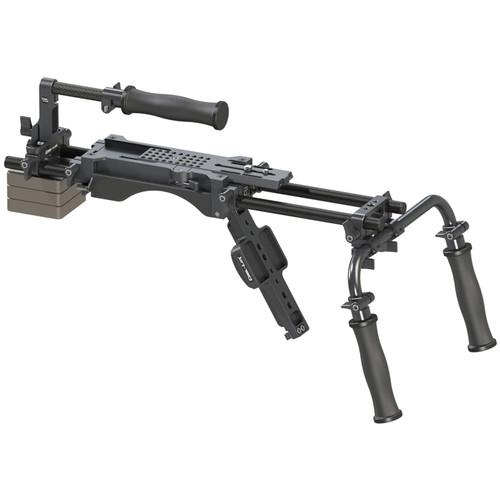

Cool-Lux Cine Cool-Rig with Top Handle

User Manual for Cool-Lux Cine Cool-Rig with Top Handle and Counterweight

• Product category: Camcorder Supports & Rigs Cool-Lux
• Brand: Cool-Lux
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Cool-Lux Camcorder Supports & Rigs

Product description

• SHIFT Baseplate
  • SHIFT BASEPLATE
  The Cool-Lux SHIFT Baseplate is a multi-purpose shoulder mount rig designed for large and mid-size cameras. Attach a handgrip, and you have a full solution. Different handgrips (telescoping and walnut) are available from Cool-Lux. But, you can also upgrade it with cheeseplates and counterweights from Cool-Lux, for standard, cine, and ENG applications.

  At the press of a button, the SHIFT Baseplate releases a flip-out chest support bar that helps balance the rig. When the bar is released, a soft and durable shoulder pad is also made available. When you fold it back up, it provides 1/4"-20 and 3/8"-16 threaded tripod mount holes. The resting position of the bar is adjustable to different body types.

  The SHIFT Baseplate offers front and rear 15mm rod ports with 1.9" of vertical adjustment on both sets, and it comes with 8" and 4" pairs of carbon fiber 15mm rods. The camera plate is adjustable 4.5" along a dovetail for properly balancing your camera. Note: Some DSLRs/small cameras with lenses that sit close to the bottom surface of the camera will require an optional spacer or quick-release plate to properly center the rods.
  Key Features
  • • Compact shoulder rig for large and mid-size cameras
    • Flip-out chest support bar
    • Front and rear rod ports with 1.9" of vertical adjustment
    • 8" and 4" carbon fiber 15mm rods
    • Soft, durable, silicone foam shoulder pad
    • 1/4"-20 and 3/8"-16 tripod mount holes
    • 4.5" of sliding dovetail camera plate travel
    • Upgradeable with handgrips, cheeseplates, and counterweights from Cool-Lux
  UPC: 689670194969
• Dual Grips for Camera Rig The Cool-Lux Dual Grips for Camera Rig can be flipped upwards and used upside down, or set parallel to the rig. Furthermore, each handgrip telescopes out to 4.5", allowing you to select the most appropriate length for the situation. The handgrips are made of silicone rubber and feature a uniform grip geometry. The Dual Grips come with a 15mm LWS rod bridge offering two 1/4"-20 and one 3/8"-16 threaded mounting holes on top. UPC: 689670195034
• Top Handle The Cool-Lux Top Handle comes with a NATO rail that can be secured to any support accessory with two 1/4"-20 threaded holes spaced 0.9 to 2" apart, such as many rod bridges and cheese plates. It can be adjusted left and right along the NATO rail, and also telescopes out up to an additional 4.5". It's made of silicone rubber and features a uniform grip geometry. UPC: 689670195065
• Counterweight The Cool-Lux Counterweight features three stackable 1.5 lb weights and comes out to a total of 4.7 lb with the rod bridge included. The rod bridge offers one 3/8"-16 and two 1/4"-20 threaded mounting holes for additionally attaching top handles, cheese plates, and other accessories. The weights are milled from solid carbon steel and coated with a durable nickel plated finish. The rod bridge is milled from aluminum. UPC: 689670195102

• Limited Lifetime Warranty

• Limited Lifetime Warranty

• Limited Lifetime Warranty

• Limited Lifetime Warranty

Also Includes

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• SHIFT Baseplate

  Rods	15 mm LWS rod ports on front and rear; 8" (20 cm) and 4" (10 cm) 15 mm carbon fiber rods included
  Mount Types	1/4"-20 and 3/8"-16 camera mount screws included; 1/4"-20 and 3/8"-16 tripod mount holes
  Camera Plate Sliding Range	Allows 4.5" (11 cm) of camera travel
  Material of Construction	Precision milled aluminum and stainless steel
  Rod Adjustment	1.9" (5 cm) vertical adjustment
  Dimensions	8.5 x 4.5 x 2.0" (21.5 x 11.5 x 5 cm) (without rods)
  Weight	2.5 lb (1 kg) (without rods)

  Box Dimensions (LxWxH)	9.7 x 9.4 x 4.4"

• Dual Grips for Camera Rig

  Mount Types	15 mm LWS rod bridge with one 3/8"-16 and two 1/4"-20 mounting threads
  Material of Construction	Aluminum and silicone rubber

  Box Dimensions (LxWxH)	13.6 x 12.0 x 3.4"

• Top Handle

  Mount Type	NATO rail compatible 1/4"-20 threads spaced 0.88 to 2.1" (2.2 to 5.4 cm) apart
  Telescoping Range	4.5" (11.5 cm)

  Box Dimensions (LxWxH)	5.5 x 4.9 x 1.3"

• Counterweight

  Mount Types	15 mm LWS rod mount; one 3/8"-16 and two 1/4"-20 threaded holes on rod bridge
  Material of Construction	Weights: Milled from solid carbon steel; coated with durable nickel plated finish Rod Bridge: Milled from aluminum
  Weight	3 x Stackable 1.5 lb (0.68 kg) plates and rod bridge 4.7 lb (2.1 kg) total

  Box Dimensions (LxWxH)	5.7 x 5.4 x 4.4"
