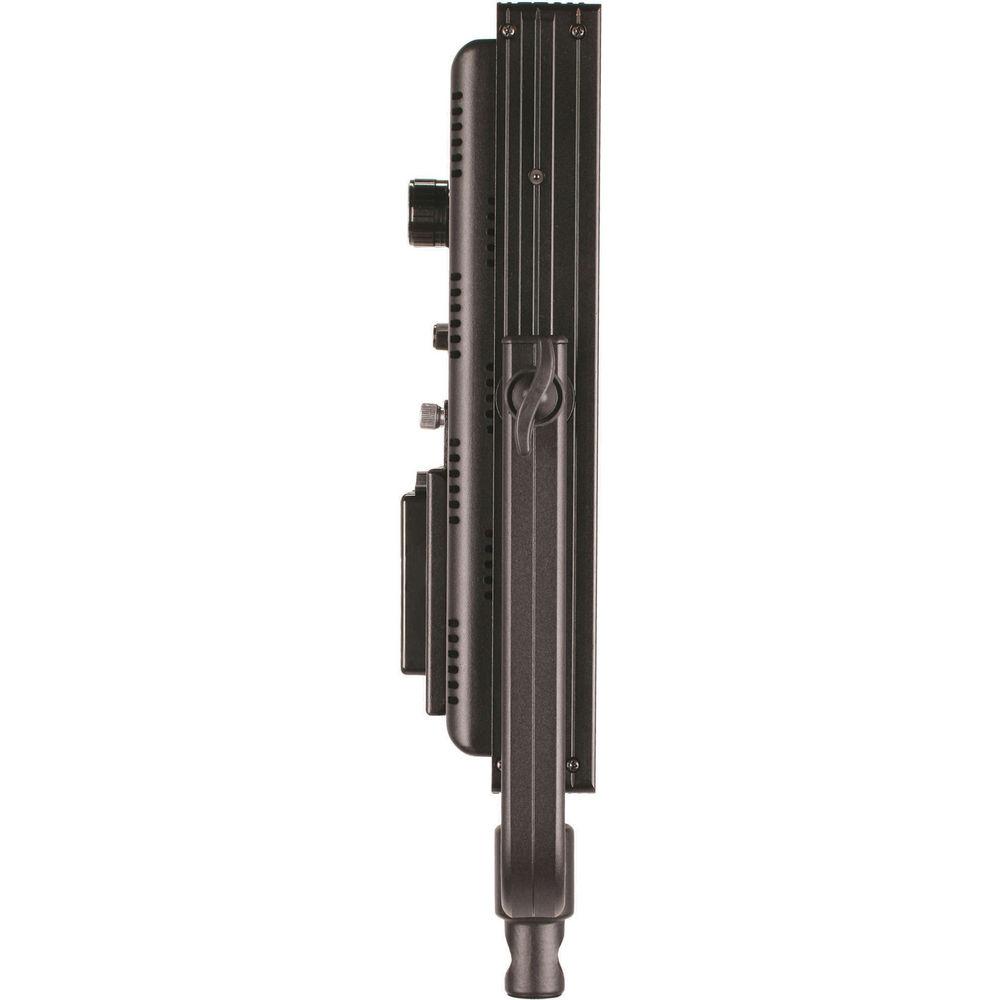

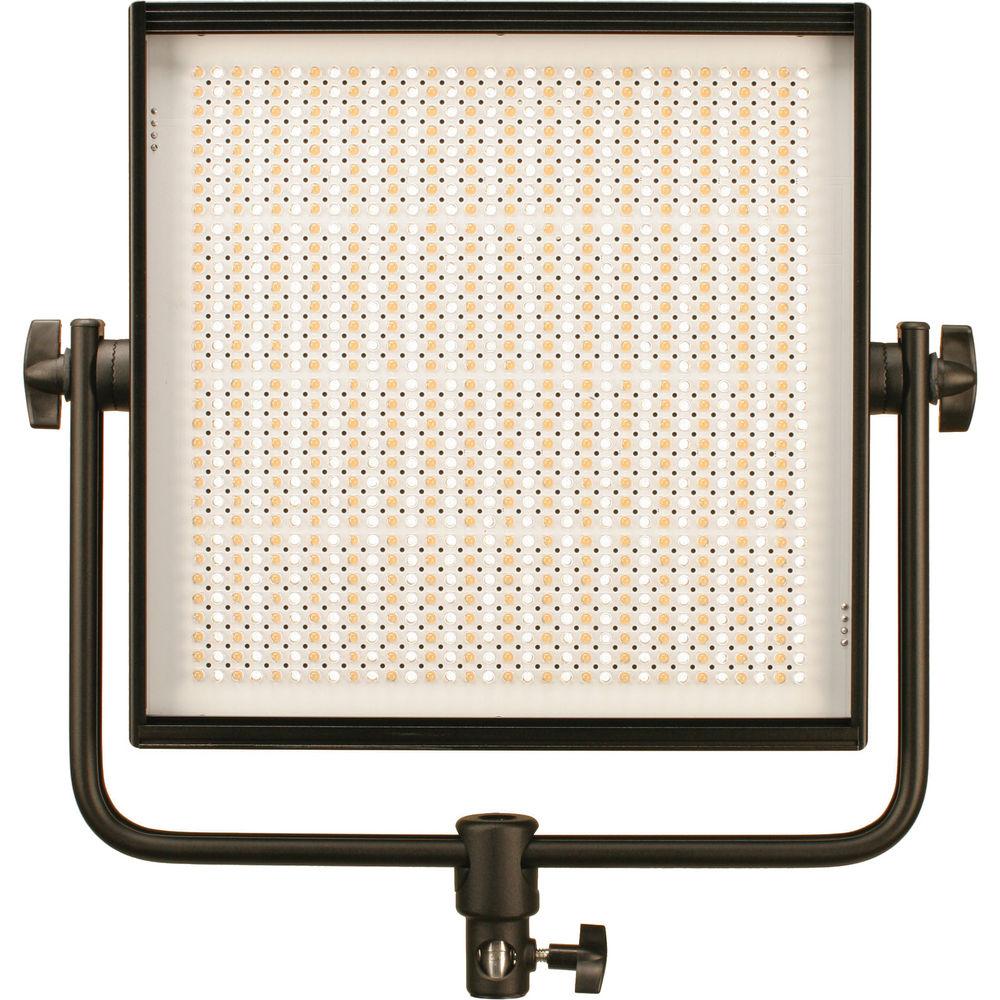

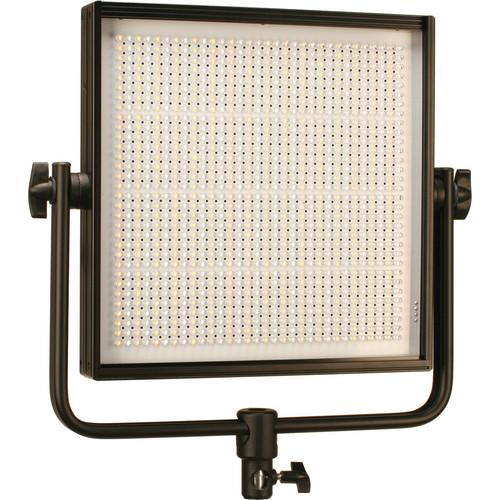

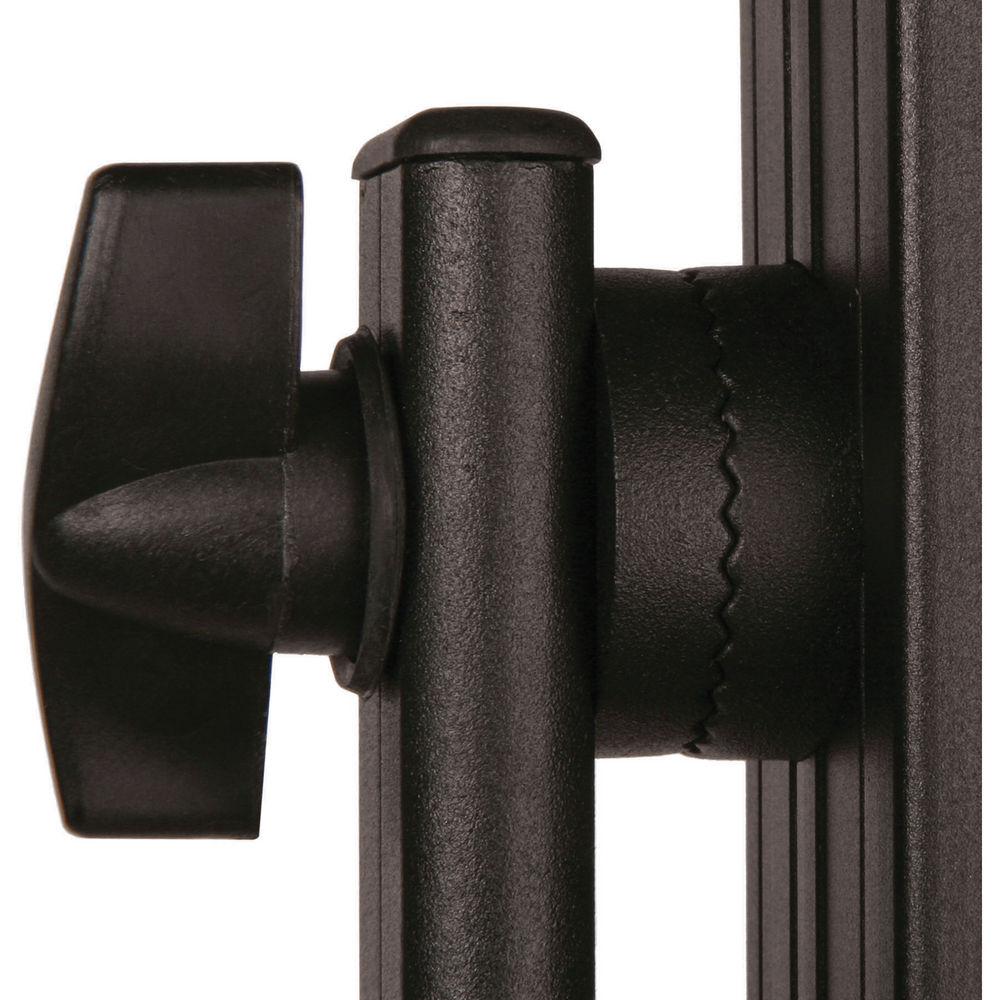

Product description The CL1000BFG Bi-Color PRO Studio LED Flood Light with Gold Mount Battery Plate from Cool-Lux is a 16.12 x 15.75 x 3.37" LED panel designed for professional video, broadcast and still applications. The light features variable color balance from 3,200 - 5,600K to accommodate ambient light conditions or match other fixtures without fumbling with filters. The CL1000BFG's high CRI of >95 ensures precise color rendering and pleasing flesh tones, while outputting 550 fc at 3' (the equivalent of a 1,000W flood hot light) with a low 60W electrical draw. Like color balance, light intensity can be adjusted without color shifting from 100-0% via a rear-panel dial. Ideal for the studio, the light's 60 degree beam angle ensures wide coverage that can be contoured with optional barndoors. Post-purchase benefits include reduced operating costs thanks to the CL1000BFG's cool running LEDs that require far less air-conditioning in the studio, virtually no maintenance, and with a 50,000 hour life, no re-lamping and downtime. The CL1000BFG's sturdy aluminum body is supported by a yoke with a dual 5/8" stand mount that allows portrait or landscape orientation. The fixture's 100-240VAC power supply means you can use it anywhere in the world, while its Gold Mount plate provides pro battery options when mains power is not available. Besides the fixture, yoke and power supply, a heavy duty nylon carrying case with a shoulder strap is included. - Features
-
- Variable 3,200-5,600K tungsten to daylight balance
- Industry high CRI >95 rating
- 5,800 Lux, up to 550 Foot Candles @ 3'
- 50,000 Hour LED life
- 1000W hot light equivalent
- Low 60W power consumption

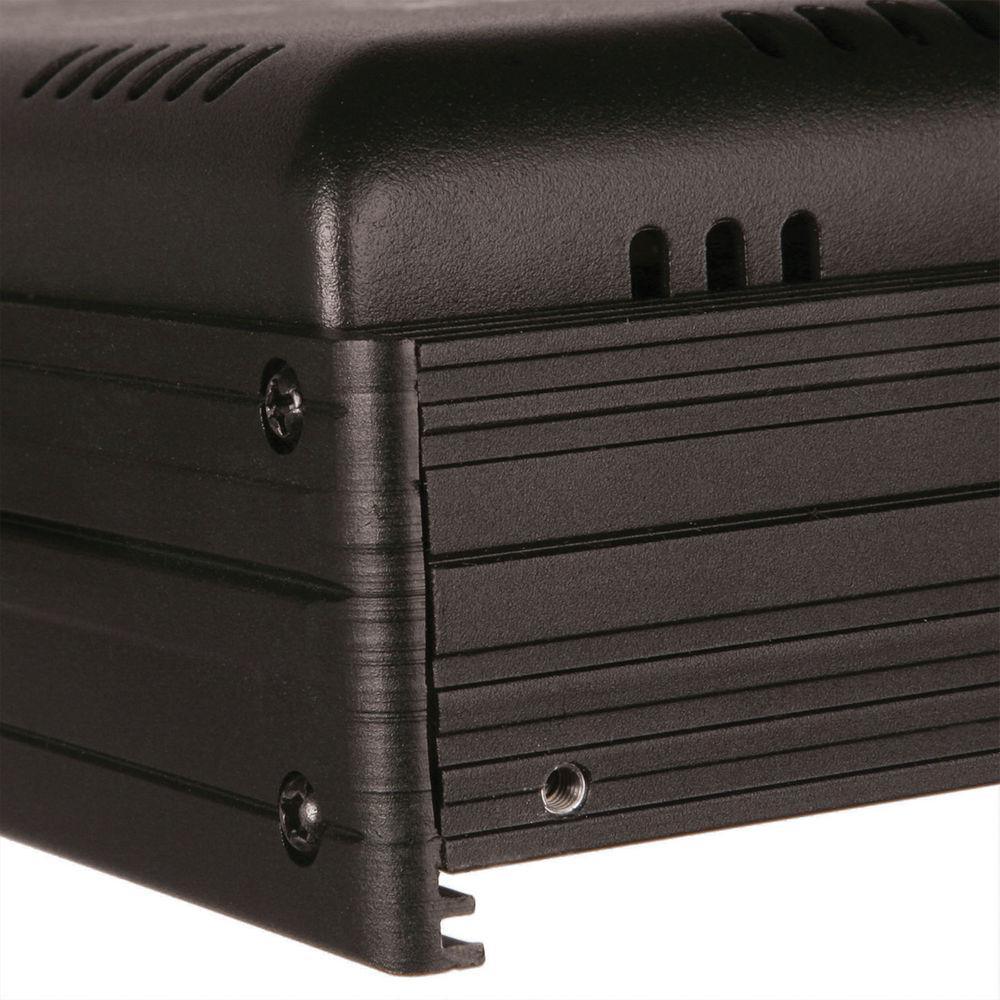

- Sturdy, lightweight all-alloy frame, chassis and yoke

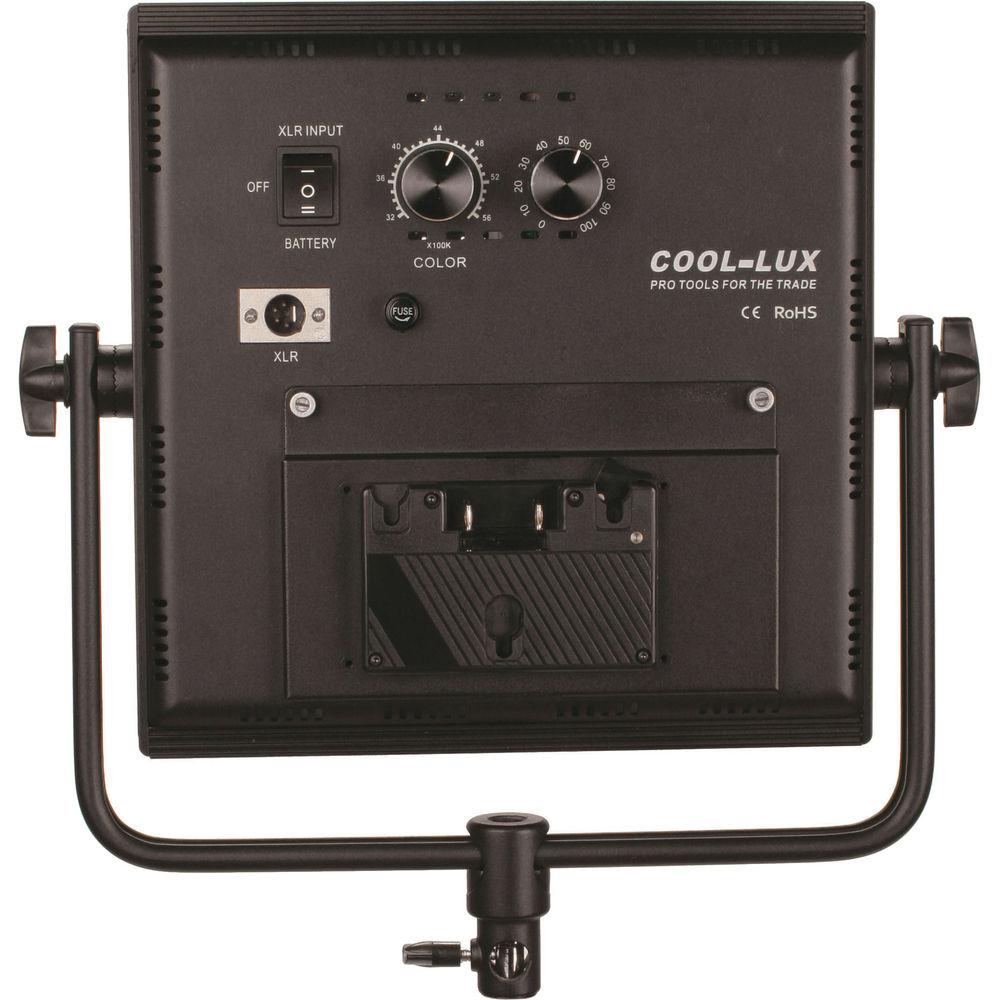

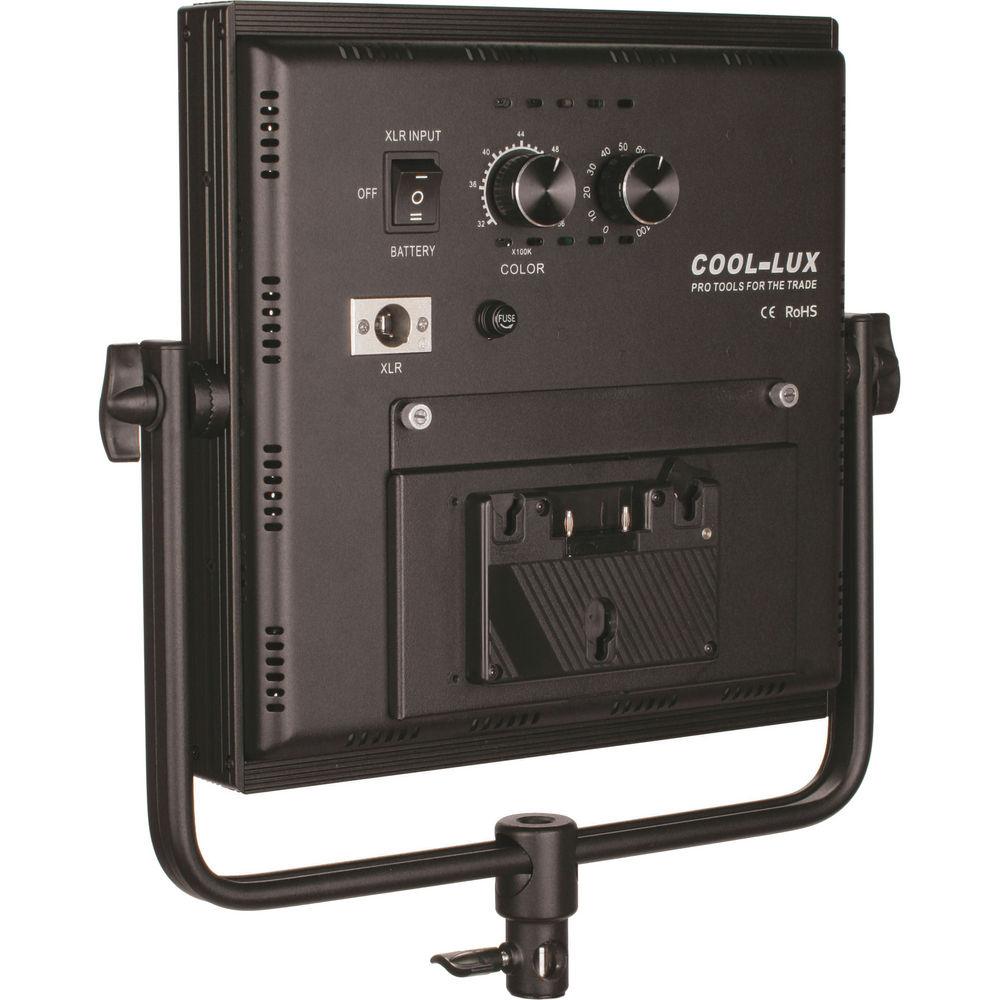

- Gold Mount battery plate
- Dims 100% to 0%
- Flicker-free, silent, low physical temperature
- LED lens protector
- 100-240VAC or 12V DC power

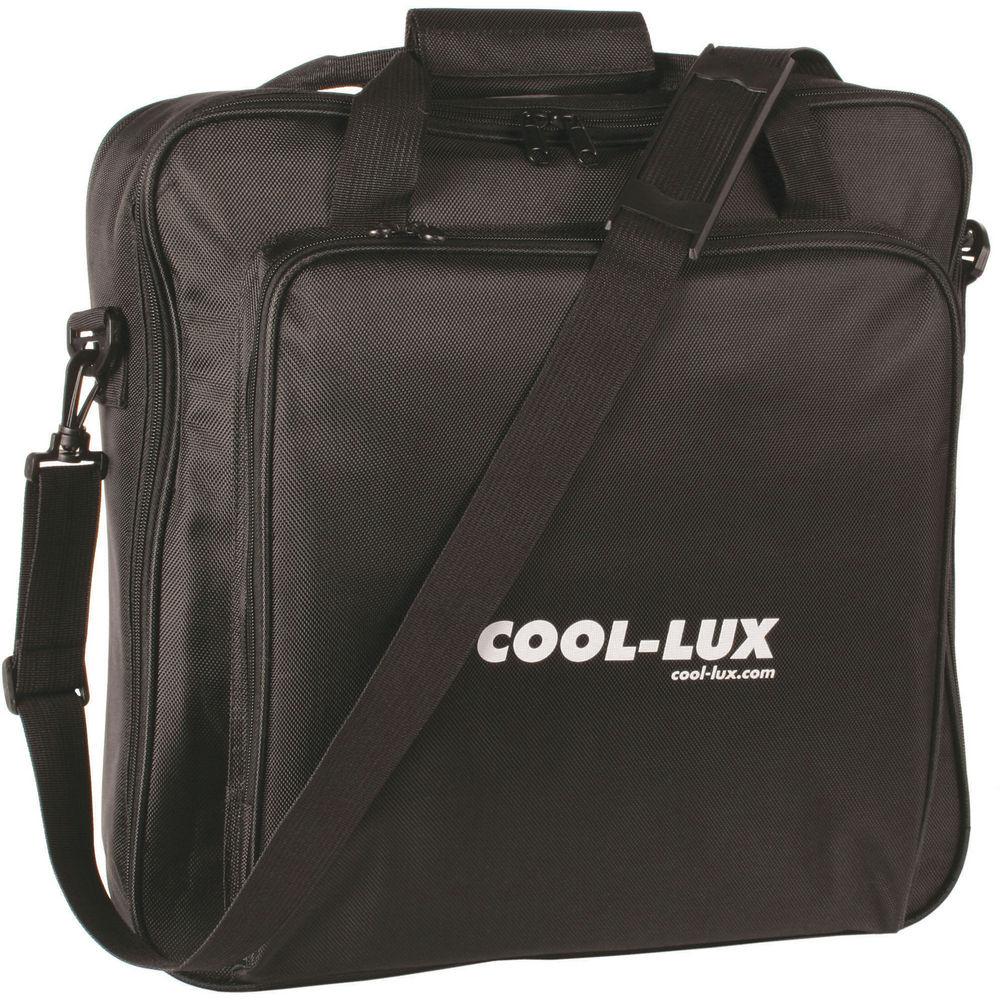

UPC: 689670193368 In the Box Cool-Lux CL1000BFG Bi-Color PRO Studio LED Flood Light with Gold Mount Battery Plate CL1000BFG Bi-Color 60 Degree Flood LED Panel Mounting Yoke with 5/8" Mount Power Supply for CL1000 LED Lights Anton Bauer Gold Mount Battery Plate for CL500 and CL1000 Heavy Duty Nylon Carry Case with Shoulder Strap Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cool-Lux CL1000BFG Bi-Color PRO Studio LED Flood Light with Gold Mount Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCool-Lux CL1000 Specs | Material of Construction | Aluminum | | Light Source | 1,024 LEDs | | Rating | 1,000W Flood hot light equivalent | | Power Consumption | 60W | | Color Range | 3,200 - 5,600K variable daylight to tungsten balance | | CRI | >95 | | Dimming | 100-0% | | Beam Angle | 60° Flood | | Photometrics | 5,800 lux/550 fc @ 3.0' (1.0 m)
1,450 lux/150 fc @ 6.0' (2.0 m)
700 lux/80 fc @ 9.0' (3.0 m) | | Operating Voltage | 100-240VAC, 50/60Hz

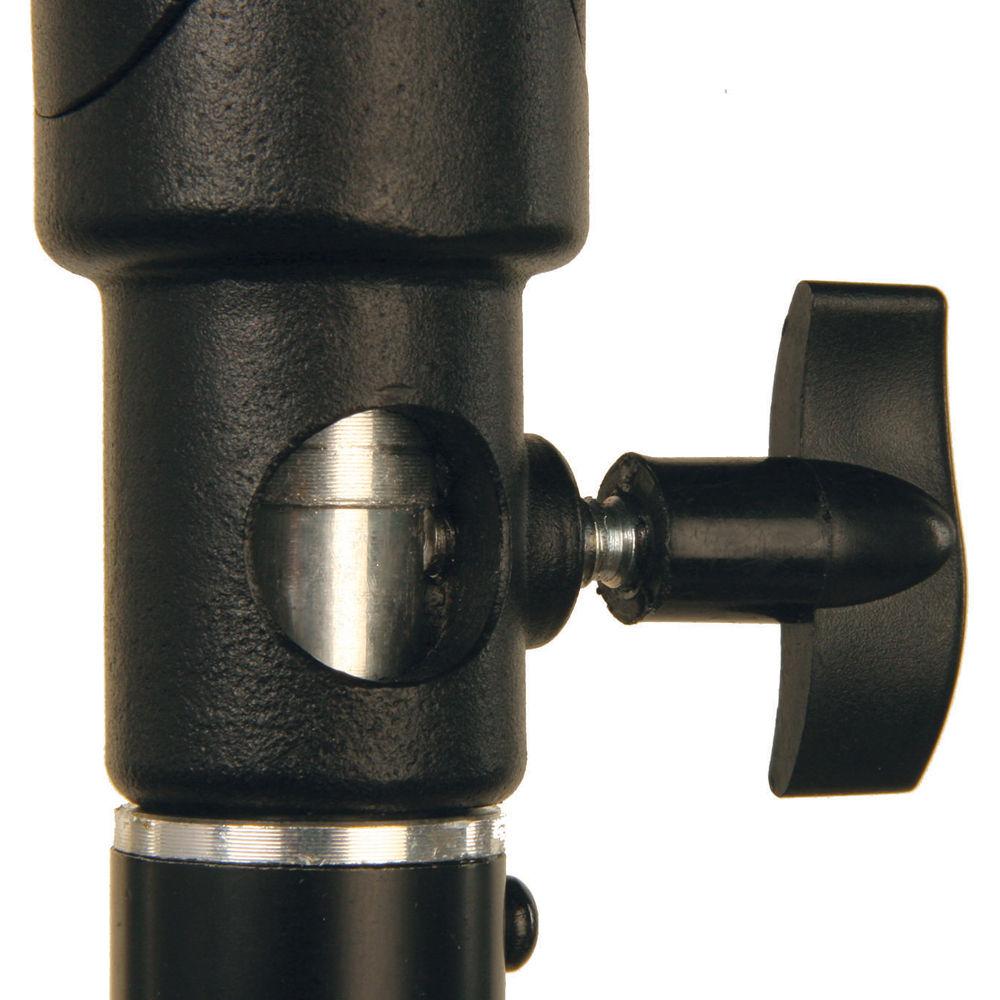

12VDC | | Mount | 5/8" (16 mm) | | Battery Plate Type | Gold Mount | | Dimensions | With yoke: 16.12 x 15.75 x 3.37" (40.94 x 40 x 8.5 cm)
Without yoke: 12.12 x 12.5 x 3.37" (30.78 x 31.75 x 8.5 cm) | | Weight | With yoke: 5.6 lb (2.54 kg)
Without yoke: 4.7 lb (2.13 kg) | | | | Package Weight | 11.95 lb | | Box Dimensions (LxWxH) | 17.9 x 17.6 x 8.1" |
