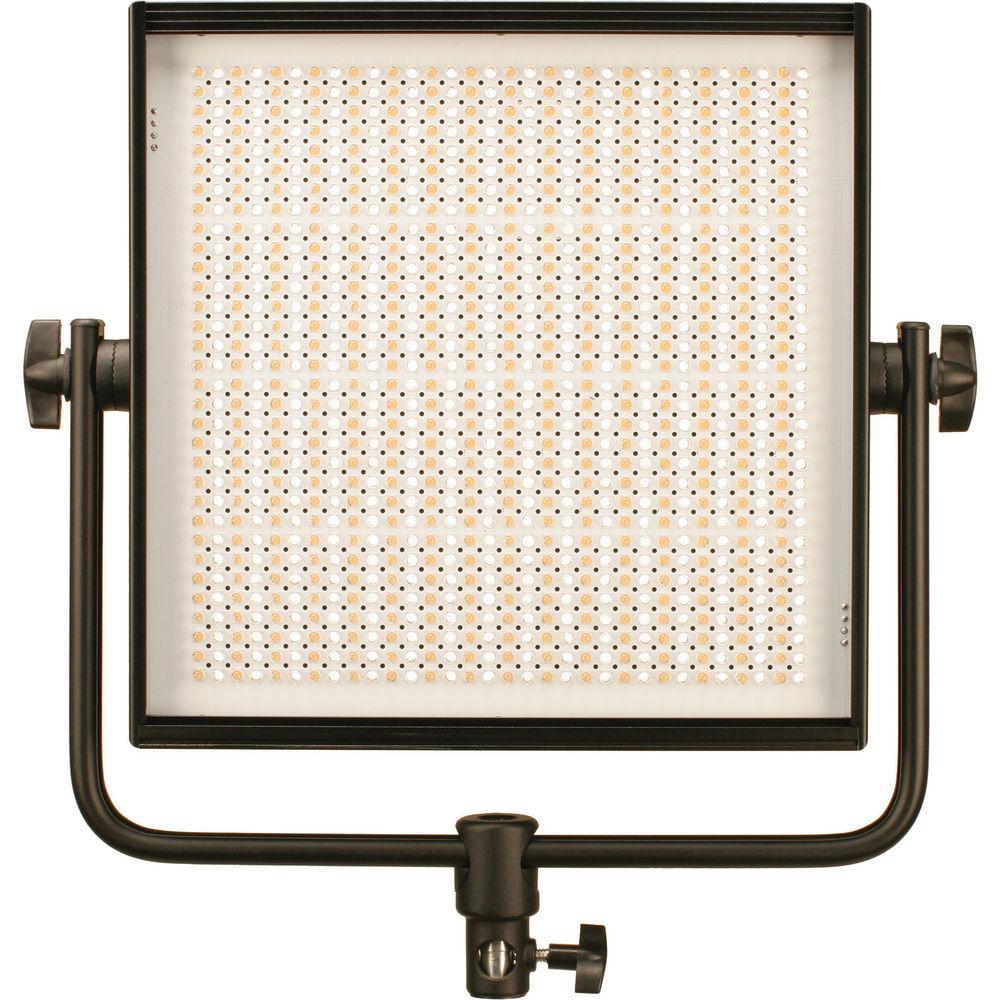

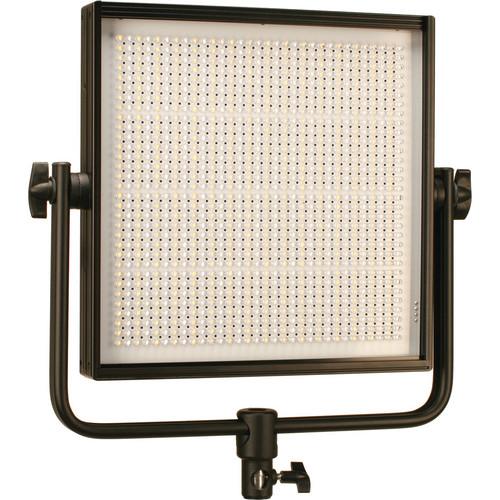

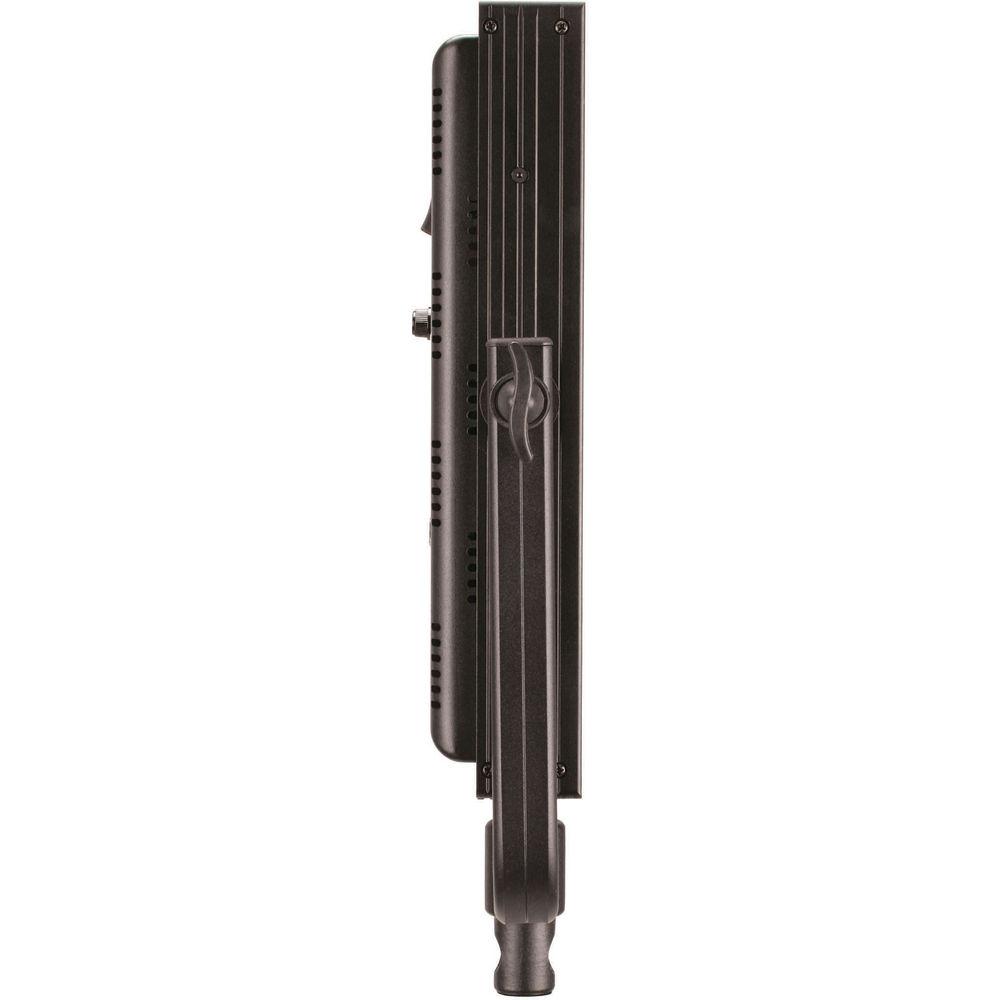

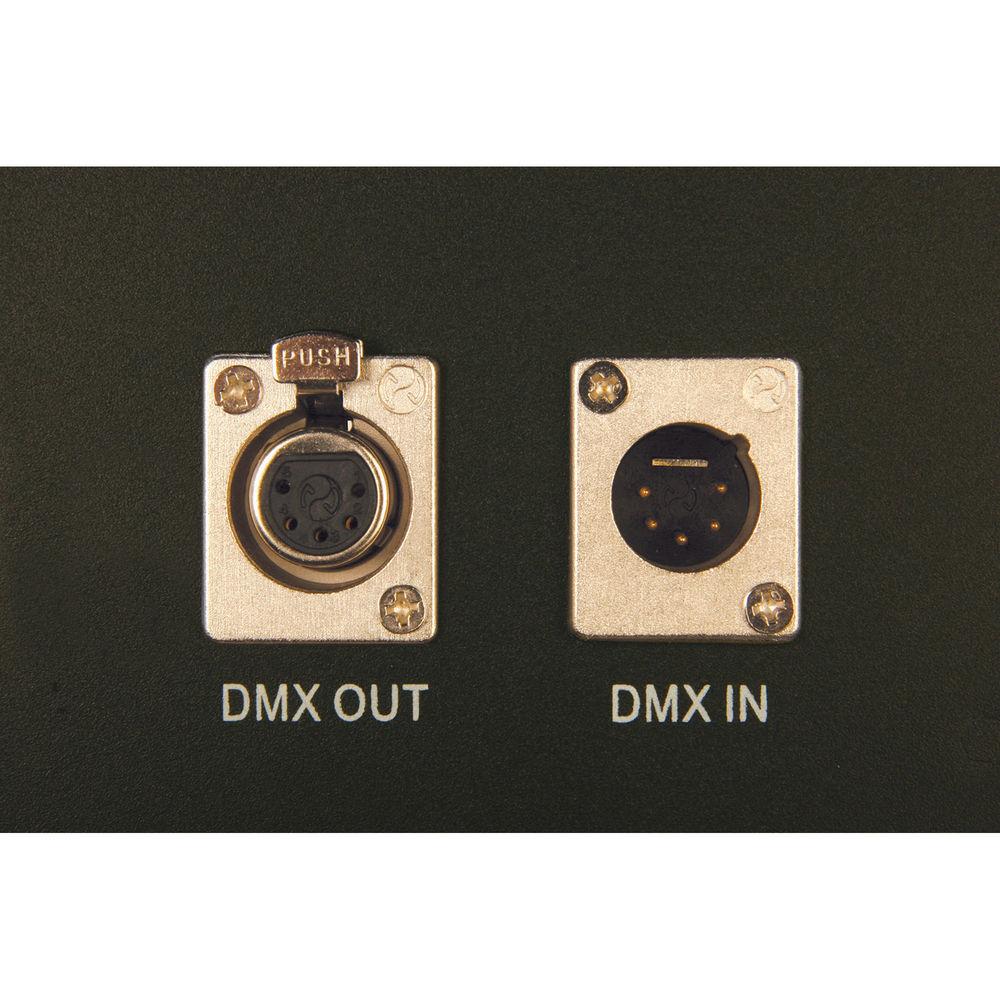

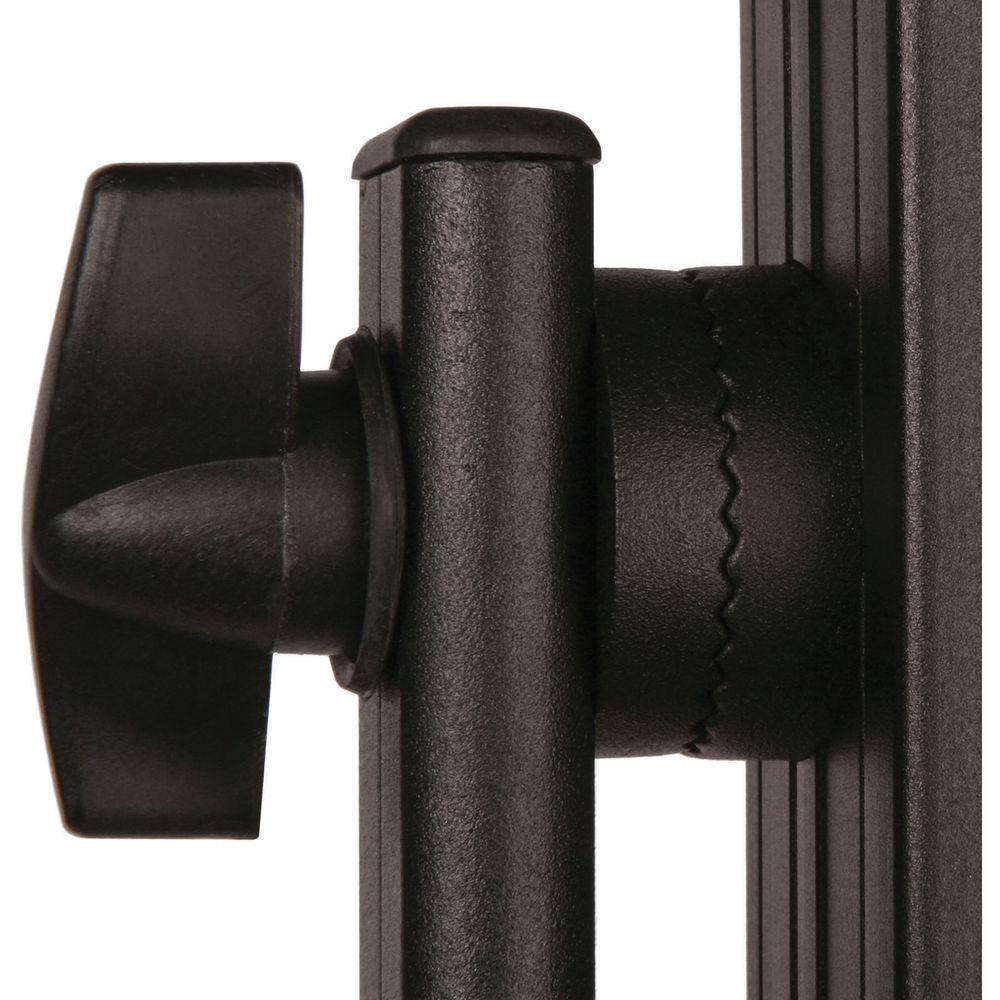

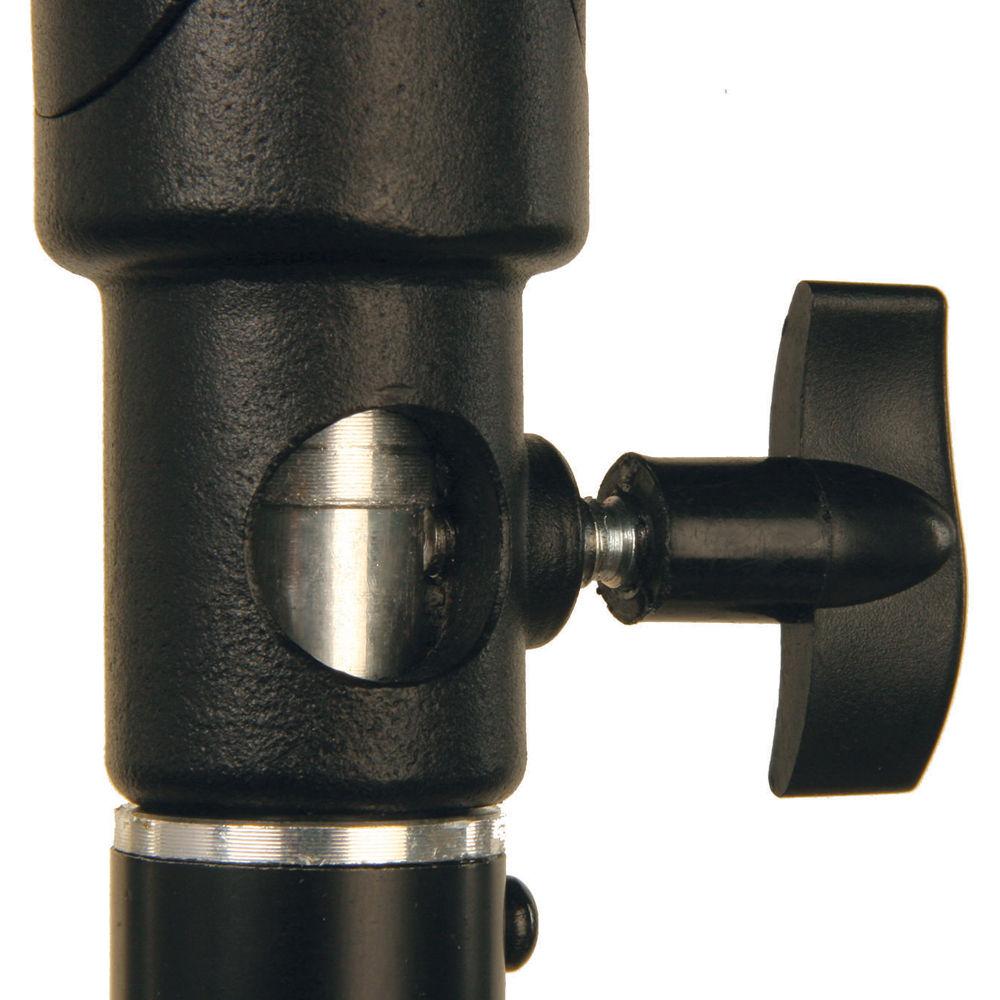

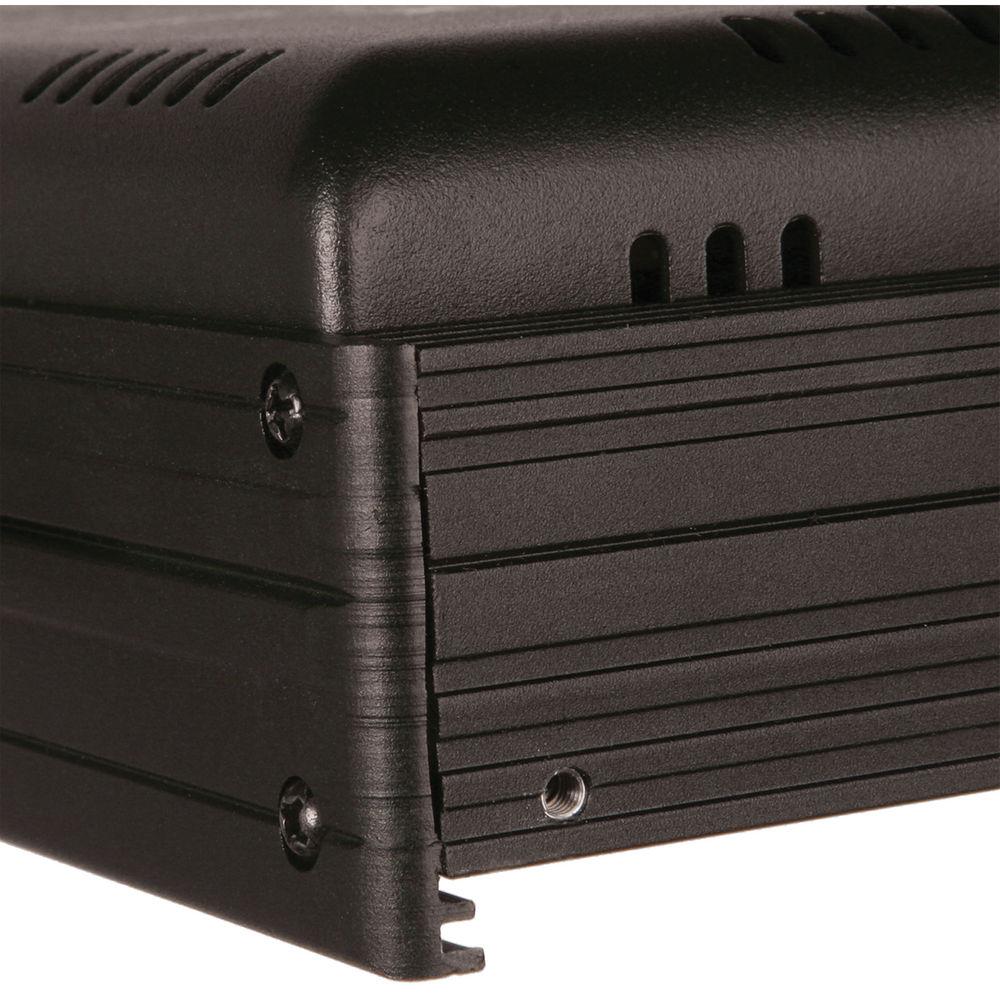

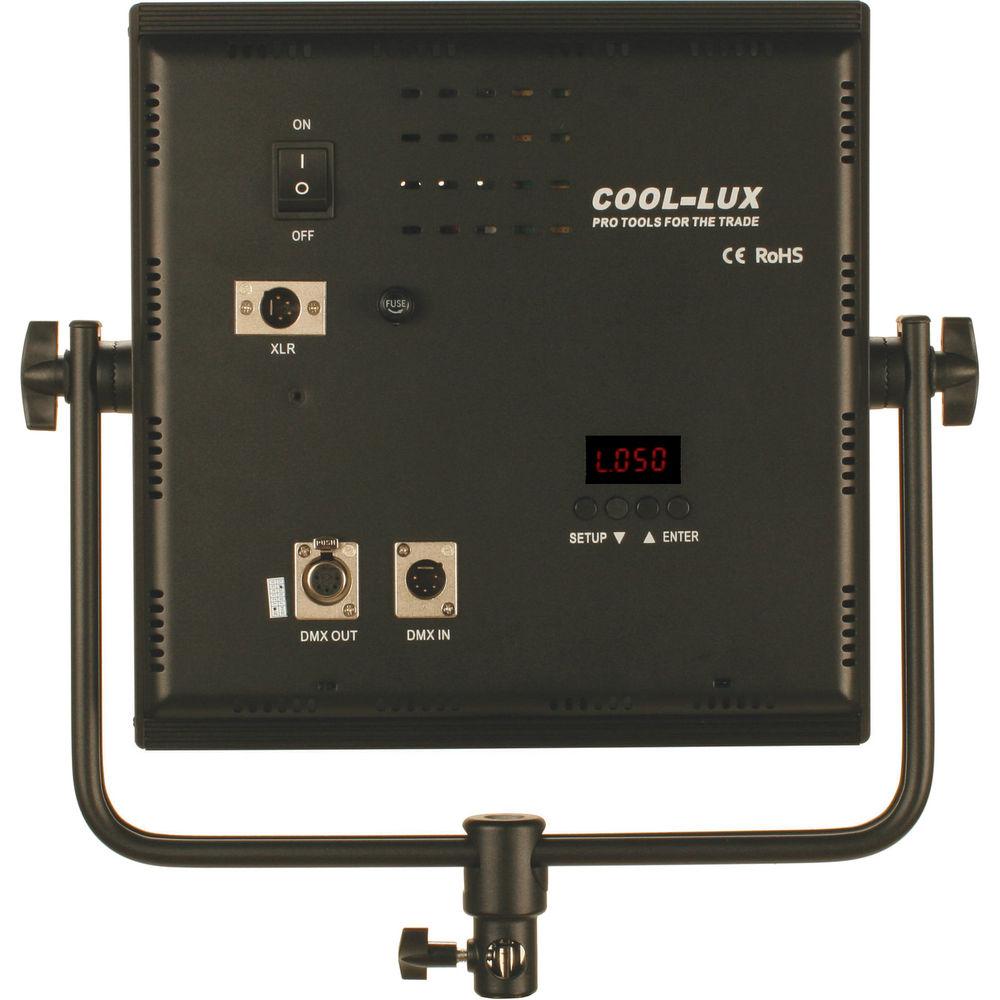

Product description The CL1000BFX Bi-Color PRO Studio LED Flood Light with DMX from Cool-Lux is a 16.12 x 15.75 x 3.37" LED panel designed for professional video, broadcast and still applications. The light features variable color balance from 3200-5600K to accommodate ambient light conditions or match other fixtures without fumbling with filters. The CL1000BFX's high CRI of >95 ensures precise color rendering and pleasing flesh tones, while outputting 550 fc at 3' (the equivalent of a 1000W hot light flood) with a low 60W electrical draw. Like color balance, light intensity can be adjusted locally from 100-0% with a rear-panel dial or remotely via DMX. The CL1000BFX 's 60-degree beam angle ensures wide coverage that can be contoured and controlled with optional barndoors. Post-purchase benefits include reduced operating costs thanks to the CL1000BFX's cool running LEDs that require far less air-conditioning in the studio, virtually no maintenance, and with a 50,000 hour life, no re-lamping and downtime. The CL1000BFX's sturdy aluminum body is supported by a yoke with a 5/8" stand mount that can be repositioned anywhere along its frame. The AC only fixture's 100-240 VAC power supply means you can use it anywhere in the world. Besides the fixture, yoke, and power supply, a protective lens cover and a heavy duty nylon carrying case with a shoulder strap are also included. - Features
-
- Variable 3200-5600K tungsten to daylight balance
- Industry high CRI >95 rating
- 5800 lux, up to 550 footcandles at 3'
- 50,000 Hour LED life
- 1000W flood hot light equivalent
- Low 60W power consumption
- Sturdy, lightweight all-alloy frame, chassis and yoke
- Dims 100% to 0%
- Flicker-free, silent, low physical temperature
- LED lens protector
- 100-240 VAC

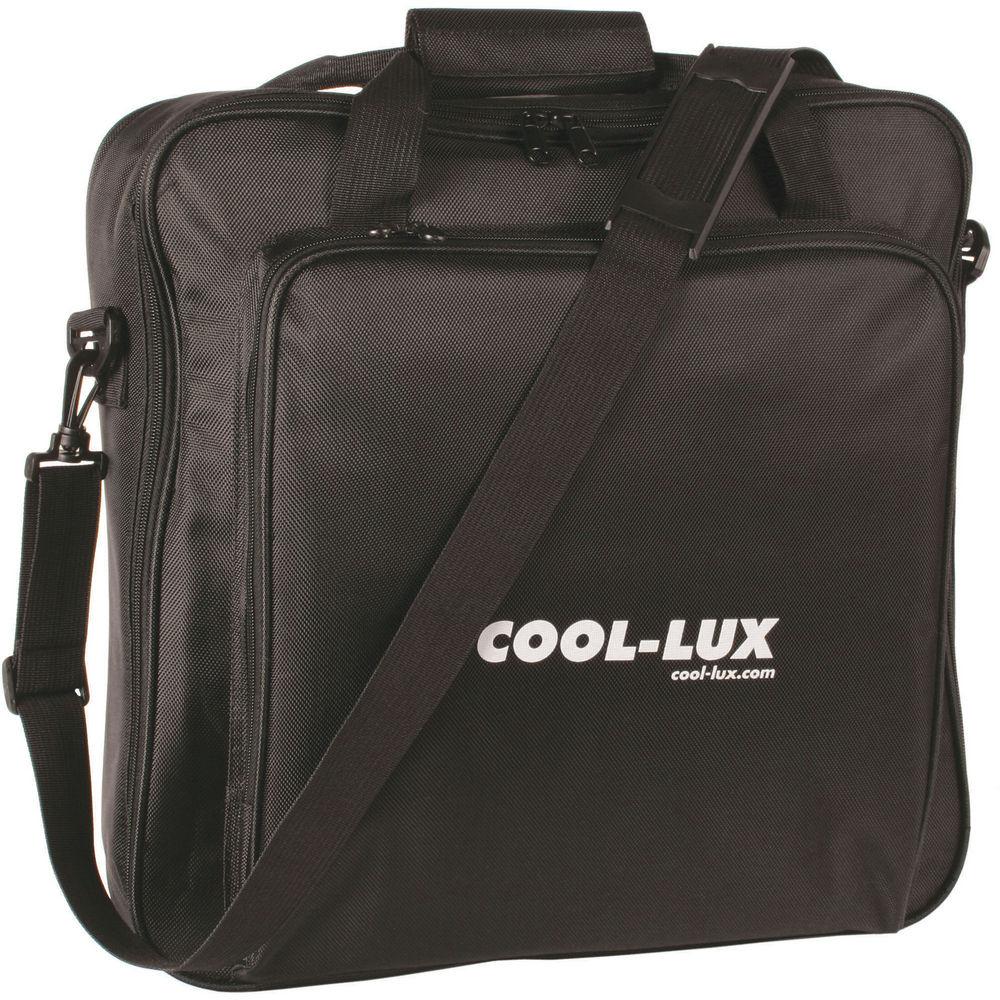

UPC: 689670193429 In the Box Cool-Lux CL1000BFX Bi-Color PRO Studio LED Flood Light with DMX CL1000BFX Bi-Color Flood LED Panel Mounting Yoke with Dual 5/8" Mount Protective Lens Cover Power Supply for CL1000 LED Lights Heavy Duty Nylon Carry Case with Shoulder Strap Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cool-Lux CL1000BFX Bi-Color PRO Studio LED Flood Light with DMX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCool-Lux CL1000 Specs | | | Beam Angle | 60° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Number of LEDs | 1024 | | Fixture Dimensions | 16.1 x 15.8 x 3.4" / 40.9 x 40.0 x 8.6 cm (Including Yoke)
12.1 x 12.5 x 3.4" / 31.7 x 31.8 x 8.6 cm | | Fixture Weight | 5.6 lb / 2.54 kg (Including Yoke)
4.7 lb / 2.13 kg | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 60 W |
