User Manual for Cool-Lux CL500TSG Tungsten PRO Studio LED Spot Light with Gold Mount Battery Plate Click to enlarge the picture
Contents of the user manual for the Cool-Lux CL500TSG Tungsten PRO Studio LED
- Product category: LED Lights Cool-Lux
- Brand: Cool-Lux
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cool-Lux LED Lights
 |
User manual for the Cool-Lux CL500TSG Tungsten PRO Studio LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cool-Lux product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cool-Lux user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cool-Lux product will considerably shorten its lifespan!
|

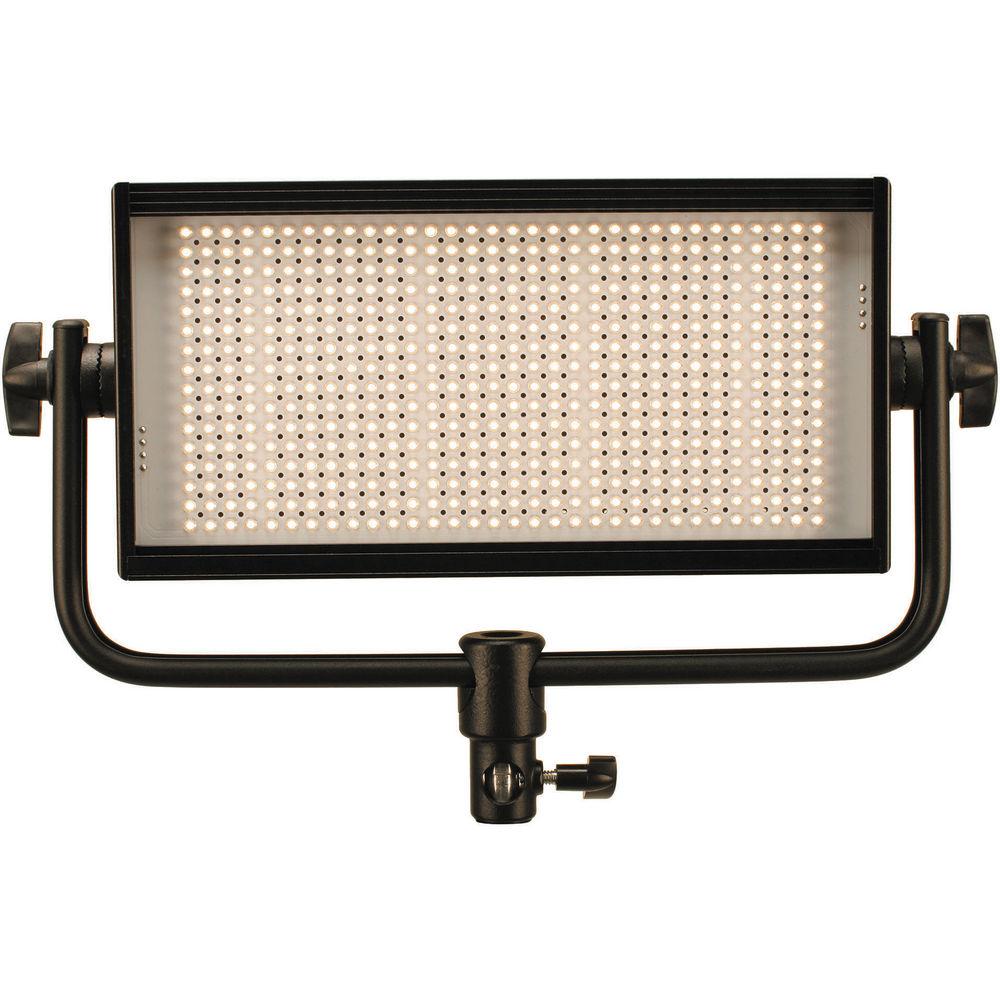

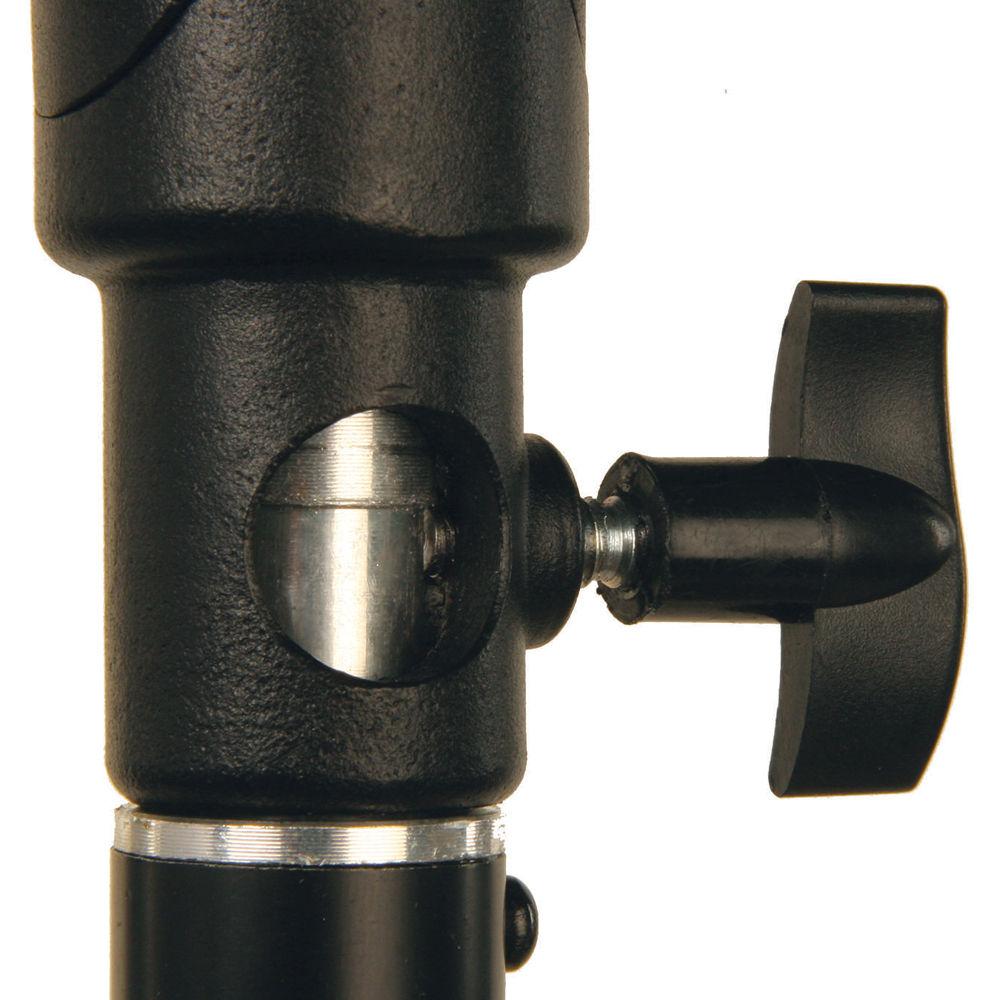

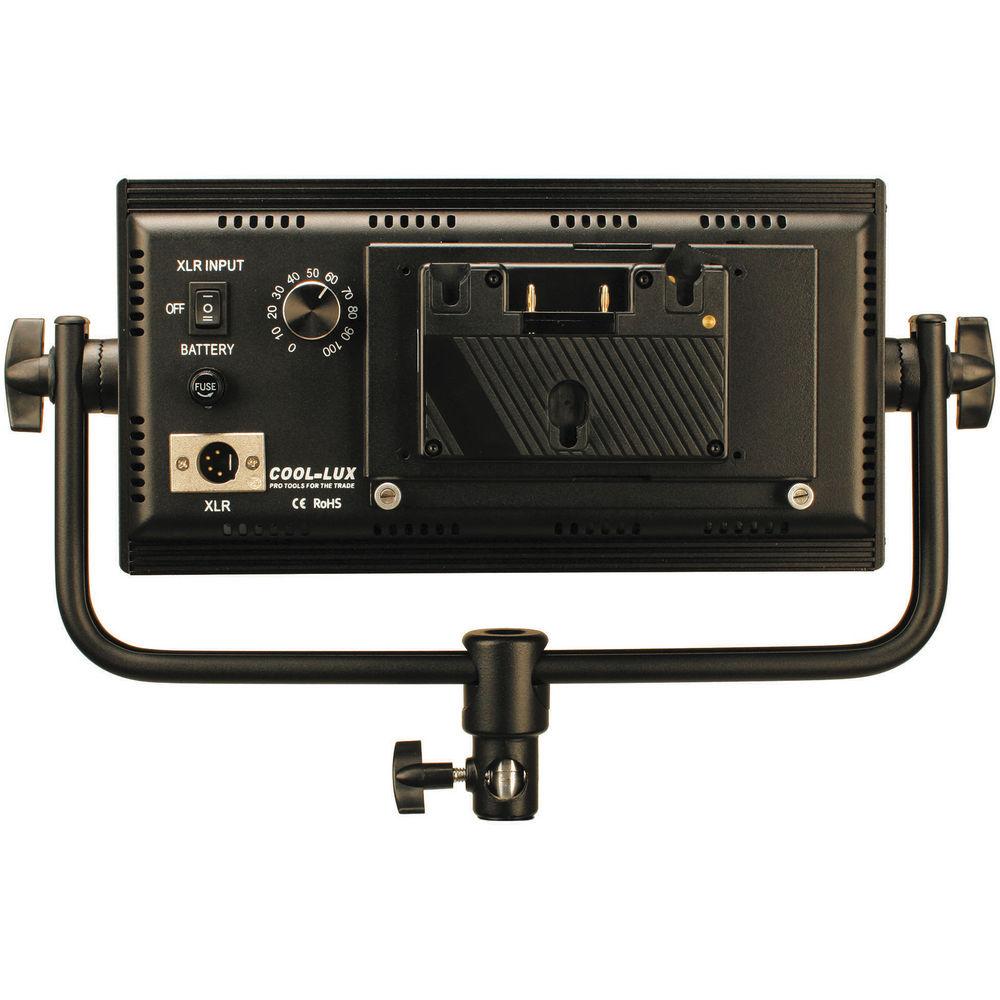

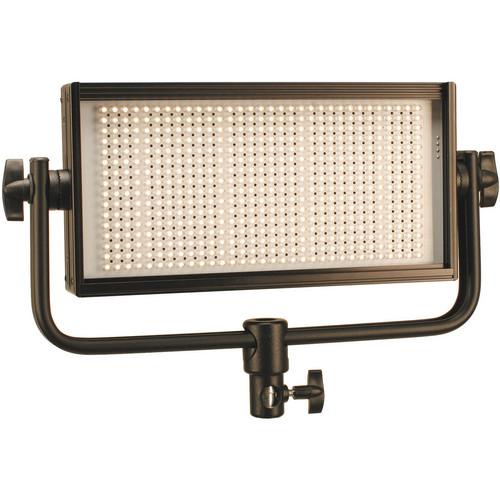

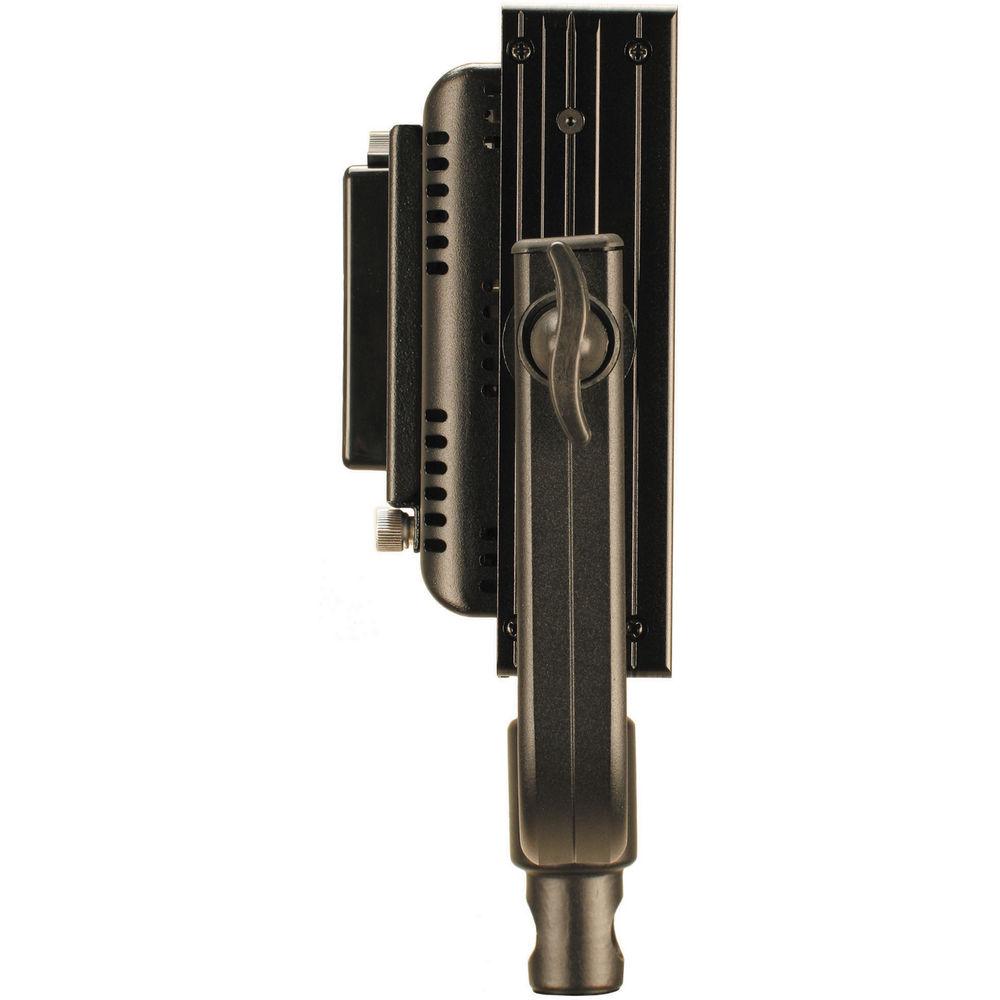

Product description The CL500TSG Tungsten PRO Studio LED Spot Light with Gold Mount Battery Plate from Cool-Lux is a 15.75 x 10 x 3" LED panel designed for professional video, broadcast and still applications. The light features 3200K tungsten color balance with a high CRI of >95 for precise color rendering and pleasing flesh tones. It outputs 400 fc at 3' (the equivalent of a 500W hot light) while drawing only 30W. Light intensity can be adjusted without color shifting from 100-0% via a rear-panel dial. Ideal for the studio, the light's 30-degree beam angle ensures a high degree of directional control. Post-purchase benefits include reduced operating costs thanks to the CL500TSG's cool running LEDs that require far less air-conditioning in the studio, virtually no maintenance, and with a 50,000 hour life, no re-lamping and downtime. The CL500TSG's sturdy aluminum body is supported by a yoke with a dual 5/8" stand mount that allows portrait or landscape orientation. The fixture's 100-240 VAC power supply means you can use it anywhere in the world, while its Gold mount plate provides pro battery options when mains power is not available. Besides the fixture, yoke and power supply, a protective lens cover, and a heavy duty nylon carrying case with a shoulder strap are also included. - Features
-
- 3200K tungsten balanced
- Industry high CRI >95 rating
- 4300 lux, up to 400 Foot Candles at 3'
- 50,000 Hour LED life
- 350W hot light equivalent
- Low 30W power consumption
- Sturdy, lightweight all-alloy frame, chassis, and yoke
- Gold mount battery plate
- Dims 100 to 0%
- LED lens protector
- 100-240 VAC or 12 VDC power

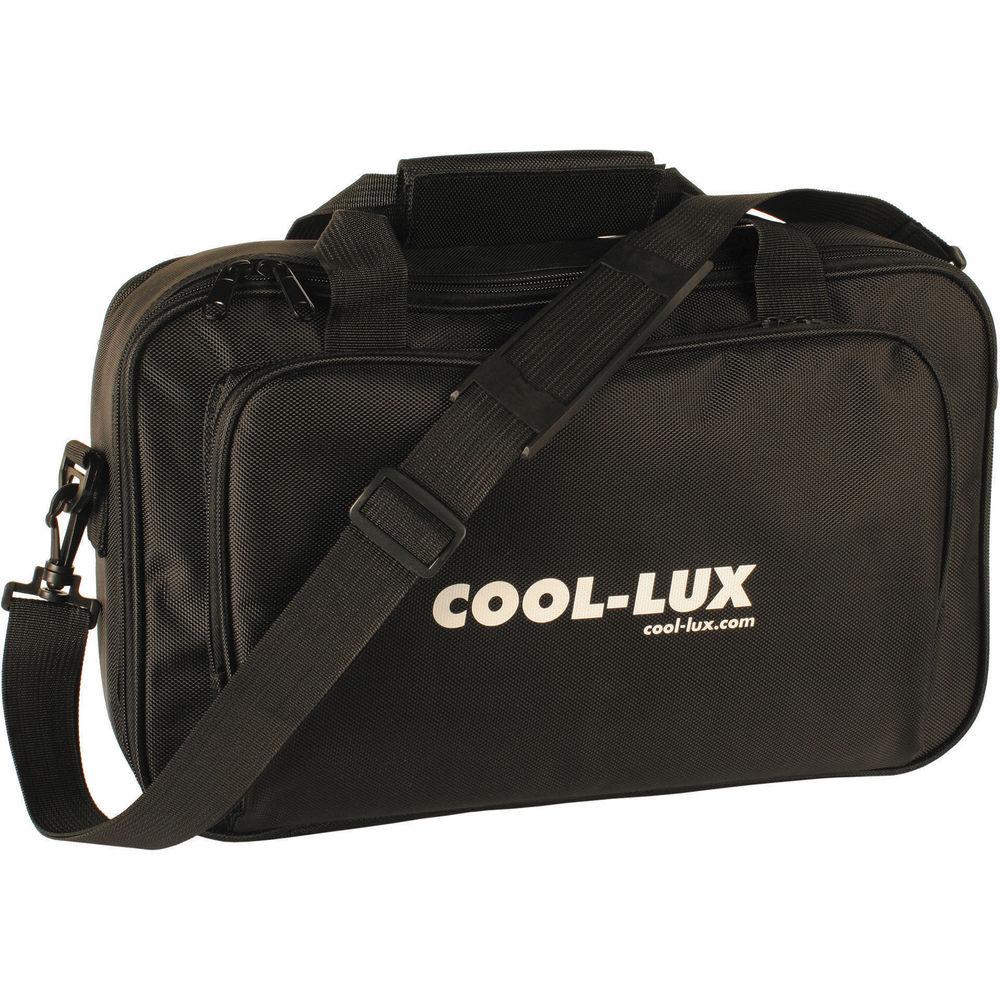

UPC: 689670193122 In the Box Cool-Lux CL500TSG Tungsten PRO Studio LED Spot Light with Gold Mount Battery Plate CL500TSG Tungsten 30-Degree Spot LED Panel Mounting Yoke with Dual 5/8" Mount Anton Bauer Gold Mount Battery Plate for CL500 and CL1000 xzysrsyuatfcdyzzstrvdsrdsdbrzx Protective Lens Cover Power Supply for CL500 LED Lights Heavy Duty Nylon Carry Case with Shoulder Strap Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cool-Lux CL500TSG Tungsten PRO Studio LED Spot Light with Gold Mount Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCool-Lux CL500 Specs | | | Beam Angle | 30° | | Color Temperature | 3200K | | Color Accuracy Standard | CRI 95 | | Cooling System | None | | Dimming | Yes, 0 to 100% | | Display | None | | Housing Material | Aluminum | | Number of LEDs | 512 | | Fixture Dimensions | 15.8 x 10.0 x 3.0" / 40.0 x 26.0 x 8.0 cm (Including Yoke)
12.5 x 6.2 x 3.0" / 32.0 x 16.0 x 8.0 cm | | Fixture Weight | 4 lb / 1.81 kg (Including Yoke)
3 lb / 1.36 kg | | | | Battery Plate | 1 x Gold Mount | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 30 W |
