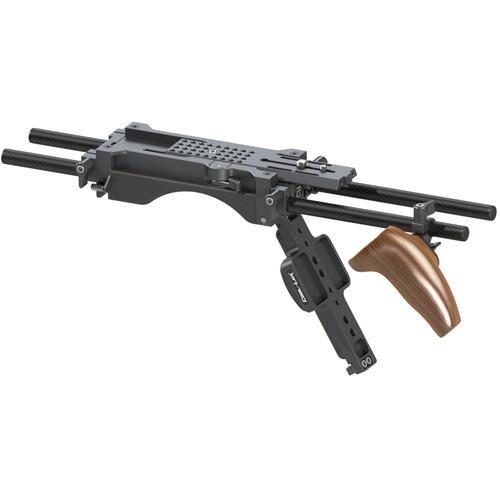

User Manual for Cool-Lux Classic Cool-Rig Click to enlarge the picture
Contents of the user manual for the Cool-Lux Classic Cool-Rig
- Product category: Camcorder Supports & Rigs Cool-Lux
- Brand: Cool-Lux
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cool-Lux Camcorder Supports & Rigs
|
User manual for the Cool-Lux Classic Cool-Rig contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cool-Lux product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cool-Lux user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cool-Lux product will considerably shorten its lifespan!
|
Product description The Classic Cool-Rig from Cool-Lux is a compact shoulder mount solution designed for large and mid-size cameras. At its core it features the multi-purpose SHIFT Baseplate, and is complete with a hand-finished walnut handgrip. - SHIFT Baseplate The Cool-Lux SHIFT Baseplate is a multi-purpose shoulder mount rig designed for large and mid-size cameras. Attach a handgrip, and you have a full solution. Different handgrips (telescoping and walnut) are available from Cool-Lux. But, you can also upgrade it with cheeseplates and counterweights from Cool-Lux, for standard, cine, and ENG applications.
At the press of a button, the SHIFT Baseplate releases a flip-out chest support bar that helps balance the rig. When the bar is released, a soft and durable shoulder pad is also made available. When you fold it back up, it provides 1/4"-20 and 3/8"-16 threaded tripod mount holes. The resting position of the bar is adjustable to different body types.
The SHIFT Baseplate offers front and rear 15mm rod ports with 1.9" of vertical adjustment on both sets, and it comes with 8" and 4" pairs of carbon fiber 15mm rods. The camera plate is adjustable 4.5" along a dovetail for properly balancing your camera. Note: Some DSLRs/small cameras with lenses that sit close to the bottom surface of the camera will require an optional spacer or quick-release plate to properly center the rods. - Key Features
-
- Compact shoulder rig for large and mid-size cameras
- Flip-out chest support bar
- Front and rear rod ports with 1.9" of vertical adjustment
- 8" and 4" carbon fiber 15mm rods
- Soft, durable, silicone foam shoulder pad
- 1/4"-20 and 3/8"-16 tripod mount holes
- 4.5" of sliding dovetail camera plate travel
- Upgradeable with handgrips, cheeseplates, and counterweights from Cool-Lux
UPC: 689670194969 Walnut Grip The Cool-Lux Walnut Grip is milled from a solid block of walnut wood, sanded smooth and hand-rubbed with an oil finish. It features a single 15mm rod adapter compatible with most camera rigs, and is adjustable along a rosette adapter to the position most comfortable for you. - Key Features
-
- Organic natural wood feel
- Elegant ergonomic design
- Milled from solid walnut, hand-sanded and sealed with hand-rubbed tung oil finish
- Rosette connection for dialing in a comfortable wrist position
UPC: 689670195041 In the Box Bundle Items SHIFT Baseplate - Limited Lifetime Warranty
Walnut Grip rvctqcdubqzrrwffbzxsutyxyryftw - Limited Lifetime Warranty
Also Includes - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Cool-Lux Classic Cool-Rig in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SHIFT Baseplate
| Rods | 15 mm LWS rod ports on front and rear; 8" (20 cm) and 4" (10 cm) 15 mm carbon fiber rods included | | Mount Types | 1/4"-20 and 3/8"-16 camera mount screws included; 1/4"-20 and 3/8"-16 tripod mount holes | | Camera Plate Sliding Range | Allows 4.5" (11 cm) of camera travel | | Material of Construction | Precision milled aluminum and stainless steel | | Rod Adjustment | 1.9" (5 cm) vertical adjustment | | Dimensions | 8.5 x 4.5 x 2.0" (21.5 x 11.5 x 5 cm) (without rods) | | Weight | 2.5 lb (1 kg) (without rods) | | | | Box Dimensions (LxWxH) | 9.7 x 9.4 x 4.4" | - Walnut Grip
| | | Box Dimensions (LxWxH) | 5.7 x 5.3 x 3.1" |
