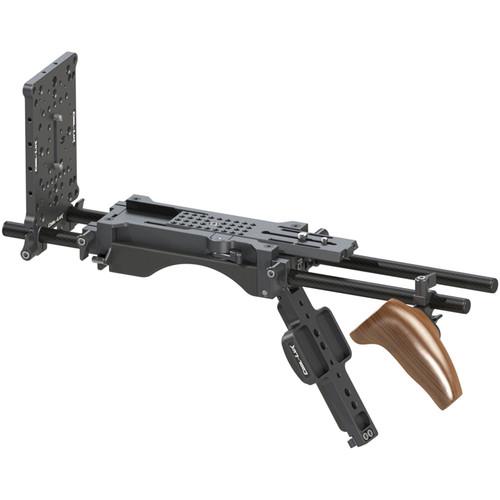

Product description The Classic Cool-Rig with Cheeseplate from Cool-Lux is a compact shoulder mount solution designed for large and mid-size cameras. At its core it features the multi-purpose SHIFT Baseplate, and is complete with a hand-finished walnut handgrip and universal rod-mount cheeseplate.
At the press of a button, the SHIFT Baseplate releases a flip-out chest support bar that helps balance the rig. When the bar is released, a soft and durable shoulder pad is also made available. When you fold it back up, it provides 1/4"-20 and 3/8"-16 threaded tripod mount holes. The resting position of the bar is adjustable to different body types.
The SHIFT Baseplate offers front and rear 15mm rod ports with 1.9" of vertical adjustment on both sets, and it comes with 8" and 4" pairs of carbon fiber 15mm rods. The camera plate is adjustable 4.5" along a dovetail for balancing your camera.
The walnut handgrip comes on a single rod clamp and is adjustable via a rosette adapter secured to the clamp. The cheeseplate will allow you to mount battery plates, recorders, transmitters, receivers, and other accessories on the rear. It has mounting holes for Gold-Mount and V-Mount battery plates and for the AJA Ki Pro and Teradek Bolt transmitters. It also has 1/4"-20 and 3/8"-16 threaded holes for articulating arms and various other accessories, and a center slot for mounting anything with two 1/4"-20 taps spaced up to 2" apart. Two 1/4"-20 screws are included for use with the center slot. Note: Some DSLRs/small cameras with lenses that sit close to the bottom surface of the camera will require an optional spacer or quick-release plate to properly center the rods. - Key Features
-
- Compact shoulder rig for large and mid-size cameras
- Multi-purpose SHIFT Baseplate with flip-out chest support bar
- Hand-finished, ergonomic, rosette adjustable walnut handgrip
- Universal cheeseplate
- Front and rear rod ports with 1.9" of vertical adjustment
- 8" and 4" carbon fiber 15mm rods
- Soft, durable, silicone foam shoulder pad
- 1/4"-20 and 3/8"-16 tripod mount holes
- 4.5" of sliding dovetail camera plate travel
UPC: 689670194938 In the Box Cool-Lux Classic Cool-Rig with Cheeseplate SHIFT Baseplate Walnut Grip Universal Cheeseplate Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cool-Lux Classic Cool-Rig with Cheeseplate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCool-Lux 951532 Specs | Rods | 15 mm LWS rod ports on front and rear; 8" (20 cm) and 4" (10 cm) 15 mm carbon fiber rods included | | Rod Adjustment | 1.9" (5 cm) vertical adjustment | | Mount Types | 1/4"-20 and 3/8"-16 camera mount screws included; 1/4"-20 and 3/8"-16 tripod mount holes
Cheeseplate offers mounting holes for Gold-Mount and V-Mount battery plates and for the AJA Ki Pro and Teradek Bolt transmitters; 1/4"-20 and 3/8"-16 threaded holes for various accessories; and a center slot for accessories with two 1/4"-20 taps spaced up to 2" apart. | | Camera Plate Sliding Range | Allows 4.5" (11 cm) of camera travel | | Material of Construction | Precision milled aluminum and stainless steel; silicone foam shoulder pad | | Vertical Adjustment | 1.9" (5 cm) | | Dimensions | SHIFT Baseplate: 8.5 x 4.5 x 2.0" (21.5 x 11.5 x 5 cm) | | Weight | SHIFT Baseplate: 2.5 lb (1 kg) | | | | Package Weight | 4.95 lb | | Box Dimensions (LxWxH) | 11.4 x 10.3 x 4.4" |
