Product description

• SHIFT Baseplate
  • SHIFT BASEPLATE

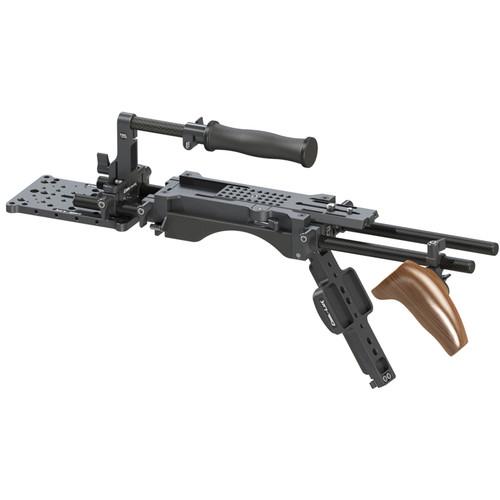

  The Cool-Lux SHIFT Baseplate is a multi-purpose shoulder mount rig designed for large and mid-size cameras. Attach a handgrip, and you have a full solution. Different handgrips (telescoping and walnut) are available from Cool-Lux. But, you can also upgrade it with cheeseplates and counterweights from Cool-Lux, for standard, cine, and ENG applications.

  At the press of a button, the SHIFT Baseplate releases a flip-out chest support bar that helps balance the rig. When the bar is released, a soft and durable shoulder pad is also made available. When you fold it back up, it provides 1/4"-20 and 3/8"-16 threaded tripod mount holes. The resting position of the bar is adjustable to different body types.

  The SHIFT Baseplate offers front and rear 15mm rod ports with 1.9" of vertical adjustment on both sets, and it comes with 8" and 4" pairs of carbon fiber 15mm rods. The camera plate is adjustable 4.5" along a dovetail for properly balancing your camera. Note: Some DSLRs/small cameras with lenses that sit close to the bottom surface of the camera will require an optional spacer or quick-release plate to properly center the rods.
  Key Features
  • • Compact shoulder rig for large and mid-size cameras
    • Flip-out chest support bar
    • Front and rear rod ports with 1.9" of vertical adjustment
    • 8" and 4" carbon fiber 15mm rods
    • Soft, durable, silicone foam shoulder pad
    • 1/4"-20 and 3/8"-16 tripod mount holes
    • 4.5" of sliding dovetail camera plate travel
    • Upgradeable with handgrips, cheeseplates, and counterweights from Cool-Lux
  UPC: 689670194969
• Walnut Grip The Cool-Lux Walnut Grip is milled from a solid block of walnut wood, sanded smooth and hand-rubbed with an oil finish. It features a single 15mm rod adapter compatible with most camera rigs, and is adjustable along a rosette adapter to the position most comfortable for you.
  Key Features
  • • Organic natural wood feel
    • Elegant ergonomic design
    • Milled from solid walnut, hand-sanded and sealed with hand-rubbed tung oil finish
    • Rosette connection for dialing in a comfortable wrist position
  UPC: 689670195041
• Top Handle The Cool-Lux Top Handle comes with a NATO rail that can be secured to any support accessory with two 1/4"-20 threaded holes spaced 0.9 to 2" apart, such as many rod bridges and cheese plates. It can be adjusted left and right along the NATO rail, and also telescopes out up to an additional 4.5". It's made of silicone rubber and features a uniform grip geometry. UPC: 689670195065
• Universal Cheeseplate Attach various devices and accessories to your camera rig with the Cool-Lux Universal Cheeseplate. The plate features 1/4"-20 and 3/8"-16 mounting holes, mounting patterns for Gold-Mount and V-Mount battery plates, and patterns for the AJA Ki Pro and Teradek Bolt transmitters. It also has a center slot for mounting anything with two 1/4"-20 taps spaced up to 2" apart. Two 1/4"-20 screws are included for use with the center slot. The Universal Cheeseplate comes with a15mm LWS rod-bridge that allows it to be attached horizontally or vertically. The rod bridge offers three mounting threads on top for securing the plate. UPC: 689670195133

• Limited Lifetime Warranty

• Limited Lifetime Warranty

• Limited Lifetime Warranty

• 2 x 1/4"-20 Screws

• Limited Lifetime Warranty

Also Includes

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• SHIFT Baseplate

  Rods	15 mm LWS rod ports on front and rear; 8" (20 cm) and 4" (10 cm) 15 mm carbon fiber rods included
  Mount Types	1/4"-20 and 3/8"-16 camera mount screws included; 1/4"-20 and 3/8"-16 tripod mount holes
  Camera Plate Sliding Range	Allows 4.5" (11 cm) of camera travel
  Material of Construction	Precision milled aluminum and stainless steel
  Rod Adjustment	1.9" (5 cm) vertical adjustment
  Dimensions	8.5 x 4.5 x 2.0" (21.5 x 11.5 x 5 cm) (without rods)
  Weight	2.5 lb (1 kg) (without rods)

  Box Dimensions (LxWxH)	9.7 x 9.4 x 4.4"

• Walnut Grip

  Box Dimensions (LxWxH)	5.7 x 5.3 x 3.1"

• Top Handle

  Mount Type	NATO rail compatible 1/4"-20 threads spaced 0.88 to 2.1" (2.2 to 5.4 cm) apart
  Telescoping Range	4.5" (11.5 cm)

  Box Dimensions (LxWxH)	5.5 x 4.9 x 1.3"

• Universal Cheeseplate

  Mount Types

  1/4"-20 and 3/8"-16 mounting holes Mounting patterns for Gold-Mount and V-Mount battery plates Mounting patterns for AJA Ki Pro and Teradek Bolt transmitters Center slot for items with two 1/4"-20 taps spaced up to 2" (5 cm) apart Rod bridge features two 1/4"-20 and 3/8"-16 threaded mounting holes on top

  Box Dimensions (LxWxH)	7.3 x 5.4 x 0.8"
