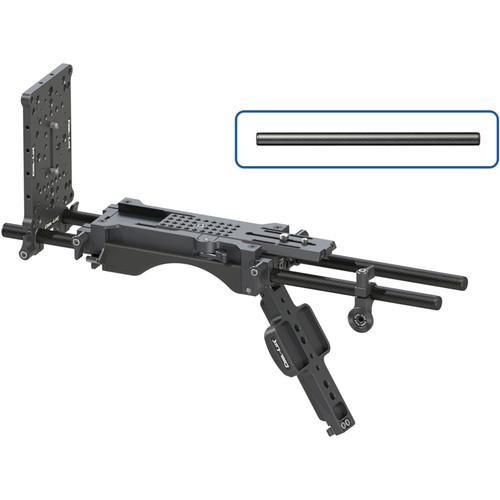

Product description The FS7 Cool-Rig with Cheeseplate from Cool-Lux is a compact shoulder mount solution for the Sony FS7 camera. At its core, it features the multi-purpose SHIFT Baseplate, and is complete with a rosette adapter for the FS7 Handle, an 8" 15mm rod for the FS7 viewfinder, and a rod-mount cheeseplate. The SHIFT Baseplate is designed to provide support for most large and mid-size cameras, so this rig can be used with cameras other than the FS7 as well. - SHIFT Baseplate The Cool-Lux SHIFT Baseplate is a multi-purpose shoulder mount rig designed for large and mid-size cameras. Attach a handgrip, and you have a full solution. Different handgrips (telescoping and walnut) are available from Cool-Lux. But, you can also upgrade it with cheeseplates and counterweights from Cool-Lux, for standard, cine, and ENG applications.
At the press of a button, the SHIFT Baseplate releases a flip-out chest support bar that helps balance the rig. When the bar is released, a soft and durable shoulder pad is also made available. When you fold it back up, it provides 1/4"-20 and 3/8"-16 threaded tripod mount holes. The resting position of the bar is adjustable to different body types.
The SHIFT Baseplate offers front and rear 15mm rod ports with 1.9" of vertical adjustment on both sets, and it comes with 8" and 4" pairs of carbon fiber 15mm rods. The camera plate is adjustable 4.5" along a dovetail for properly balancing your camera. Note: Some DSLRs/small cameras with lenses that sit close to the bottom surface of the camera will require an optional spacer or quick-release plate to properly center the rods. - Key Features
-
- Compact shoulder rig for large and mid-size cameras
- Flip-out chest support bar
- Front and rear rod ports with 1.9" of vertical adjustment
- 8" and 4" carbon fiber 15mm rods
- Soft, durable, silicone foam shoulder pad
- 1/4"-20 and 3/8"-16 tripod mount holes
- 4.5" of sliding dovetail camera plate travel
- Upgradeable with handgrips, cheeseplates, and counterweights from Cool-Lux
UPC: 689670194969 Universal Cheeseplate Attach various devices and accessories to your camera rig with the Cool-Lux Universal Cheeseplate. The plate features 1/4"-20 and 3/8"-16 mounting holes, mounting patterns for Gold-Mount and V-Mount battery plates, and patterns for the AJA Ki Pro and Teradek Bolt transmitters. It also has a center slot for mounting anything with two 1/4"-20 taps spaced up to 2" apart. Two 1/4"-20 screws are included for use with the center slot. The Universal Cheeseplate comes with a15mm LWS rod-bridge that allows it to be attached horizontally or vertically. The rod bridge offers three mounting threads on top for securing the plate. UPC: 689670195133 15mm Rod Rosette Mount Attach handgrips and other accessories to your camera rig with the 15mm Rod Adapter with M6 Rosette Mount from Cool-Lux. Attach any accessory with a corresponding ARRI M6 rosette mount, and secure the whole thing to a single 15mm rod. UPC: 689670195409 In the Box Bundle Items SHIFT Baseplate rzuadcvauaaxxtudecywdcfrt - Limited Lifetime Warranty
Universal Cheeseplate - Limited Lifetime Warranty
15mm Rod Rosette Mount - Limited Lifetime Warranty
Also Includes - 8" Carbon Fiber 15mm Rod for FS7 Viewfinder
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Cool-Lux Cool-Rig for Sony FS7 with Cheeseplate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SHIFT Baseplate
| Rods | 15 mm LWS rod ports on front and rear; 8" (20 cm) and 4" (10 cm) 15 mm carbon fiber rods included | | Mount Types | 1/4"-20 and 3/8"-16 camera mount screws included; 1/4"-20 and 3/8"-16 tripod mount holes | | Camera Plate Sliding Range | Allows 4.5" (11 cm) of camera travel | | Material of Construction | Precision milled aluminum and stainless steel | | Rod Adjustment | 1.9" (5 cm) vertical adjustment | | Dimensions | 8.5 x 4.5 x 2.0" (21.5 x 11.5 x 5 cm) (without rods) | | Weight | 2.5 lb (1 kg) (without rods) | | | | Box Dimensions (LxWxH) | 9.7 x 9.4 x 4.4" | - Universal Cheeseplate
| Mount Types | 1/4"-20 and 3/8"-16 mounting holes
Mounting patterns for Gold-Mount and V-Mount battery plates
Mounting patterns for AJA Ki Pro and Teradek Bolt transmitters
Center slot for items with two 1/4"-20 taps spaced up to 2" (5 cm) apart
Rod bridge features two 1/4"-20 and 3/8"-16 threaded mounting holes on top | | | | Box Dimensions (LxWxH) | 7.3 x 5.4 x 0.8" | - 15mm Rod Rosette Mount
| | | Box Dimensions (LxWxH) | 4.0 x 2.6 x 1.2" |
