Product description

• SHIFT Baseplate
  • SHIFT BASEPLATE

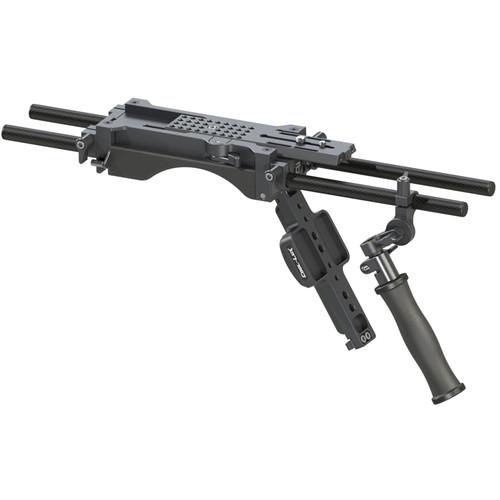

  The Cool-Lux SHIFT Baseplate is a multi-purpose shoulder mount rig designed for large and mid-size cameras. Attach a handgrip, and you have a full solution. Different handgrips (telescoping and walnut) are available from Cool-Lux. But, you can also upgrade it with cheeseplates and counterweights from Cool-Lux, for standard, cine, and ENG applications.

  At the press of a button, the SHIFT Baseplate releases a flip-out chest support bar that helps balance the rig. When the bar is released, a soft and durable shoulder pad is also made available. When you fold it back up, it provides 1/4"-20 and 3/8"-16 threaded tripod mount holes. The resting position of the bar is adjustable to different body types.

  The SHIFT Baseplate offers front and rear 15mm rod ports with 1.9" of vertical adjustment on both sets, and it comes with 8" and 4" pairs of carbon fiber 15mm rods. The camera plate is adjustable 4.5" along a dovetail for properly balancing your camera. Note: Some DSLRs/small cameras with lenses that sit close to the bottom surface of the camera will require an optional spacer or quick-release plate to properly center the rods.
  Key Features
  • • Compact shoulder rig for large and mid-size cameras
    • Flip-out chest support bar
    • Front and rear rod ports with 1.9" of vertical adjustment
    • 8" and 4" carbon fiber 15mm rods
    • Soft, durable, silicone foam shoulder pad
    • 1/4"-20 and 3/8"-16 tripod mount holes
    • 4.5" of sliding dovetail camera plate travel
    • Upgradeable with handgrips, cheeseplates, and counterweights from Cool-Lux
  UPC: 689670194969
• Single Grip The Cool-Lux Single Grip is a telescoping handgrip featuring a single 15mm rod adapter and ARRI M6 rosette connection. It extends out an additional 4.5", allowing you to select the most appropriate length for the situation. The grip is made of silicone rubber, and its uniform design, length adjustment, and rod and rosette adjustment allow for a lot of flexibility in finding the most ideal position.
  Key Features
  • • Full X, Y, and Z positioning via adjustment of rod clamp angle and rosette connection
    • Telescopes out up to 4.5"
    • Uniform grip geometry
    • Silicone-rubber grip for optimal comfort and durability
  UPC: 689670195027

• Limited Lifetime Warranty

• Telescoping Grip

• 15mm Rod Rosette Mount (Male & Female)

• Limited Lifetime Warranty

Also Includes

• Limited Lifetime Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• SHIFT Baseplate

  Rods	15 mm LWS rod ports on front and rear; 8" (20 cm) and 4" (10 cm) 15 mm carbon fiber rods included
  Mount Types	1/4"-20 and 3/8"-16 camera mount screws included; 1/4"-20 and 3/8"-16 tripod mount holes
  Camera Plate Sliding Range	Allows 4.5" (11 cm) of camera travel
  Material of Construction	Precision milled aluminum and stainless steel
  Rod Adjustment	1.9" (5 cm) vertical adjustment
  Dimensions	8.5 x 4.5 x 2.0" (21.5 x 11.5 x 5 cm) (without rods)
  Weight	2.5 lb (1 kg) (without rods)

  Box Dimensions (LxWxH)	9.7 x 9.4 x 4.4"

• Single Grip

  Telescoping Range

  4.5" (11.5 cm)

  Box Dimensions (LxWxH)	7.0 x 3.0 x 1.0"
