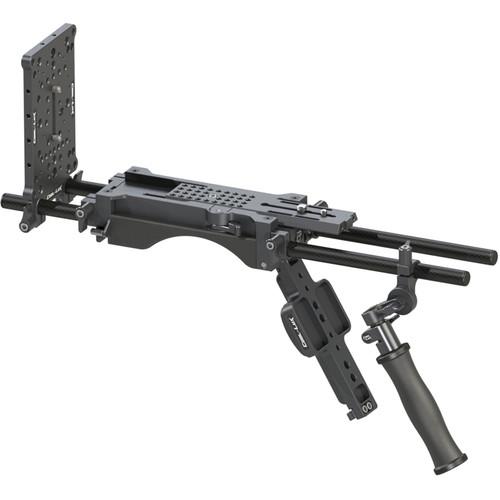

Product description The ENG Cool-Rig with Cheeseplate from Cool-Lux is a compact shoulder mount solution designed for large and mid-sized cameras. At its core, it features the multi-purpose SHIFT Baseplate, and is complete with a telescoping Single Grip handgrip and universal rod-mount cheeseplate.
At the press of a button, the SHIFT Baseplate releases a flip-out chest support bar that helps balance the rig. When the bar is released, a soft and durable shoulder pad is also made available. When you fold it back up, it provides 1/4"-20 and 3/8"-16 threaded tripod mount holes. The resting position of the bar is adjustable to different body types.
The SHIFT Baseplate offers front and rear 15mm rod ports, with 1.9" of vertical adjustment on both sets, and comes with 8" and 4" pairs of carbon fiber 15mm rods. The camera plate is adjustable 4.5" along a dovetail, for balancing your camera.
The Single Grip handgrip comes on a single rod clamp and is adjustable via a rosette adapter secured to the clamp. It telescopes out to 4.5", allowing you to select the most appropriate length. It's made of silicone rubber and features a uniform grip geometry. This uniformity, combined with the telescoping rod clamp and rosette adjustability, provides for more flexibility when finding the ideal angle.
The cheeseplate will allow you to mount battery plates, recorders, transmitters, receivers, and other accessories on the rear. It has mounting holes for Gold-Mount and V-Mount battery plates, and for the AJA Ki Pro and Teradek Bolt transmitters. It also has 1/4"-20 and 3/8"-16 threaded holes for articulating arms and various other accessories, and a center slot for mounting anything with two 1/4"-20 taps spaced up to 2" apart. Two 1/4"-20 screws are included for use with the center slot. Note: Some DSLRs/small cameras with lenses that sit close to the bottom surface of the camera will require an optional spacer, or quick release plate, to properly center the rods. - SHIFT Baseplate The Cool-Lux SHIFT Baseplate is a multi-purpose shoulder mount rig designed for large and mid-size cameras. Attach a handgrip, and you have a full solution. Different handgrips (telescoping and walnut) are available from Cool-Lux. But, you can also upgrade it with cheeseplates and counterweights from Cool-Lux, for standard, cine, and ENG applications.
At the press of a button, the SHIFT Baseplate releases a flip-out chest support bar that helps balance the rig. When the bar is released, a soft and durable shoulder pad is also made available. When you fold it back up, it provides 1/4"-20 and 3/8"-16 threaded tripod mount holes. The resting position of the bar is adjustable to different body types.
The SHIFT Baseplate offers front and rear 15mm rod ports with 1.9" of vertical adjustment on both sets, and it comes with 8" and 4" pairs of carbon fiber 15mm rods. The camera plate is adjustable 4.5" along a dovetail for properly balancing your camera. Note: Some DSLRs/small cameras with lenses that sit close to the bottom surface of the camera will require an optional spacer or quick-release plate to properly center the rods. - Key Features
-
- Compact shoulder rig for large and mid-size cameras
- Flip-out chest support bar
- Front and rear rod ports with 1.9" of vertical adjustment
- 8" and 4" carbon fiber 15mm rods
- Soft, durable, silicone foam shoulder pad
- 1/4"-20 and 3/8"-16 tripod mount holes
- 4.5" of sliding dovetail camera plate travel
- Upgradeable with handgrips, cheeseplates, and counterweights from Cool-Lux
UPC: 689670194969 Single Grip The Cool-Lux Single Grip is a telescoping handgrip featuring a single 15mm rod adapter and ARRI M6 rosette connection. It extends out an additional 4.5", allowing you to select the most appropriate length for the situation. The grip is made of silicone rubber, and its uniform design, length adjustment, and rod and rosette adjustment allow for a lot of flexibility in finding the most ideal position. - Key Features
-
- Full X, Y, and Z positioning via adjustment of rod clamp angle and rosette connection
- Telescopes out up to 4.5"
- Uniform grip geometry
- Silicone-rubber grip for optimal comfort and durability
UPC: 689670195027 Universal Cheeseplate Attach various devices and accessories to your camera rig with the Cool-Lux Universal Cheeseplate. The plate features 1/4"-20 and 3/8"-16 mounting holes, mounting patterns for Gold-Mount and V-Mount battery plates, and patterns for the AJA Ki Pro and Teradek Bolt transmitters. It also has a center slot for mounting anything with two 1/4"-20 taps spaced up to 2" apart. Two 1/4"-20 screws are included for use with the center slot. The Universal Cheeseplate comes with a15mm LWS rod-bridge that allows it to be attached horizontally or vertically. The rod bridge offers three mounting threads on top for securing the plate. UPC: 689670195133 In the Box Bundle Items SHIFT Baseplate exdebbybetdvvuyuzc - Limited Lifetime Warranty
Single Grip - 15mm Rod Rosette Mount (Male & Female)
- Limited Lifetime Warranty
Universal Cheeseplate - Limited Lifetime Warranty
Also Includes - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Cool-Lux ENG Cool-Rig with Cheeseplate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - SHIFT Baseplate
| Rods | 15 mm LWS rod ports on front and rear; 8" (20 cm) and 4" (10 cm) 15 mm carbon fiber rods included | | Mount Types | 1/4"-20 and 3/8"-16 camera mount screws included; 1/4"-20 and 3/8"-16 tripod mount holes | | Camera Plate Sliding Range | Allows 4.5" (11 cm) of camera travel | | Material of Construction | Precision milled aluminum and stainless steel | | Rod Adjustment | 1.9" (5 cm) vertical adjustment | | Dimensions | 8.5 x 4.5 x 2.0" (21.5 x 11.5 x 5 cm) (without rods) | | Weight | 2.5 lb (1 kg) (without rods) | | | | Box Dimensions (LxWxH) | 9.7 x 9.4 x 4.4" | - Single Grip
| Telescoping Range | 4.5" (11.5 cm) | | | | Box Dimensions (LxWxH) | 7.0 x 3.0 x 1.0" | - Universal Cheeseplate
| Mount Types | 1/4"-20 and 3/8"-16 mounting holes
Mounting patterns for Gold-Mount and V-Mount battery plates
Mounting patterns for AJA Ki Pro and Teradek Bolt transmitters
Center slot for items with two 1/4"-20 taps spaced up to 2" (5 cm) apart
Rod bridge features two 1/4"-20 and 3/8"-16 threaded mounting holes on top | | | | Box Dimensions (LxWxH) | 7.3 x 5.4 x 0.8" |
